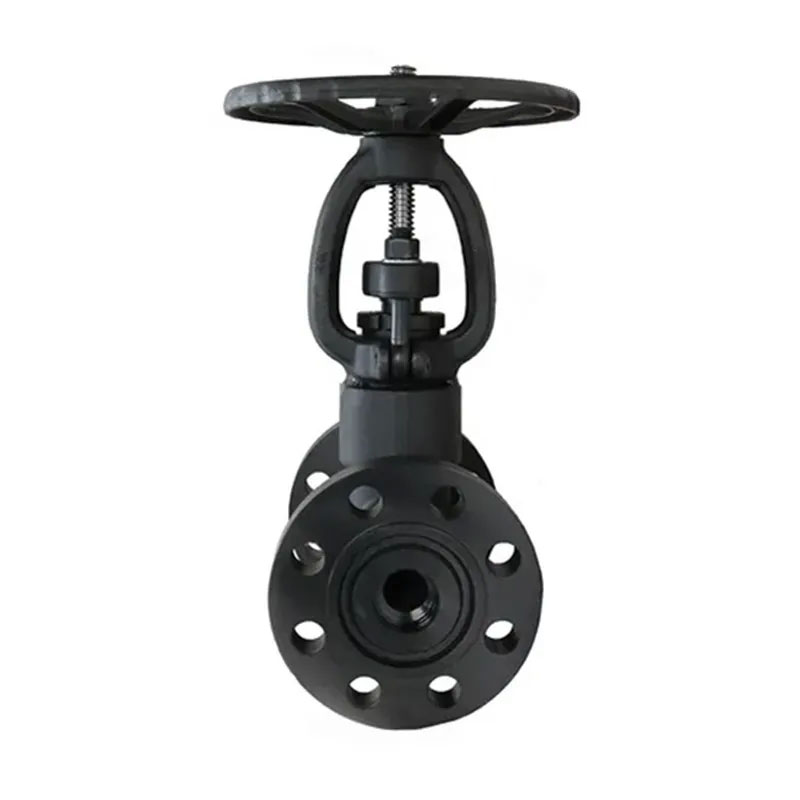

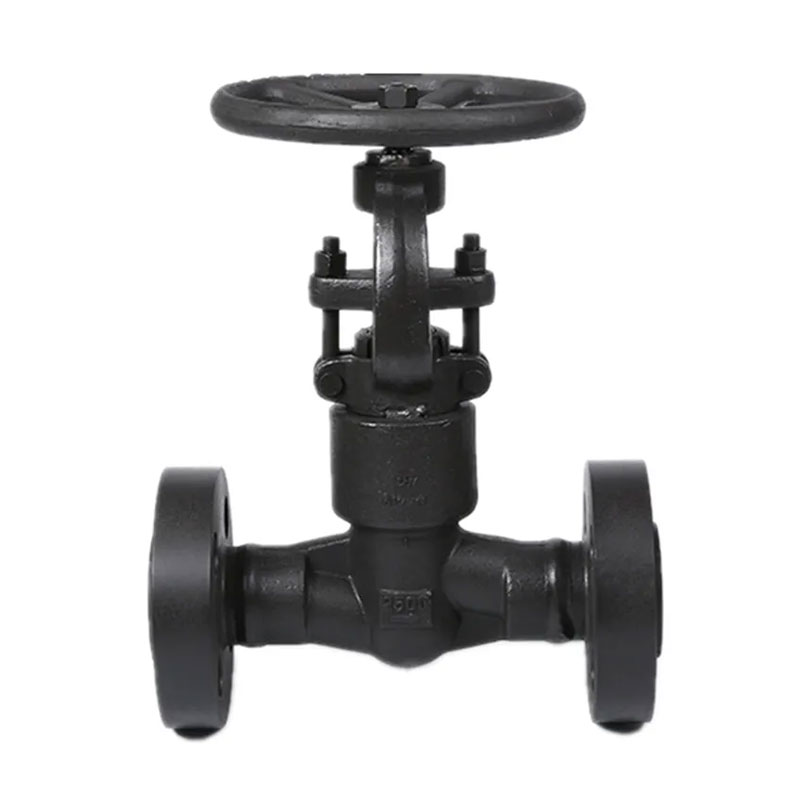

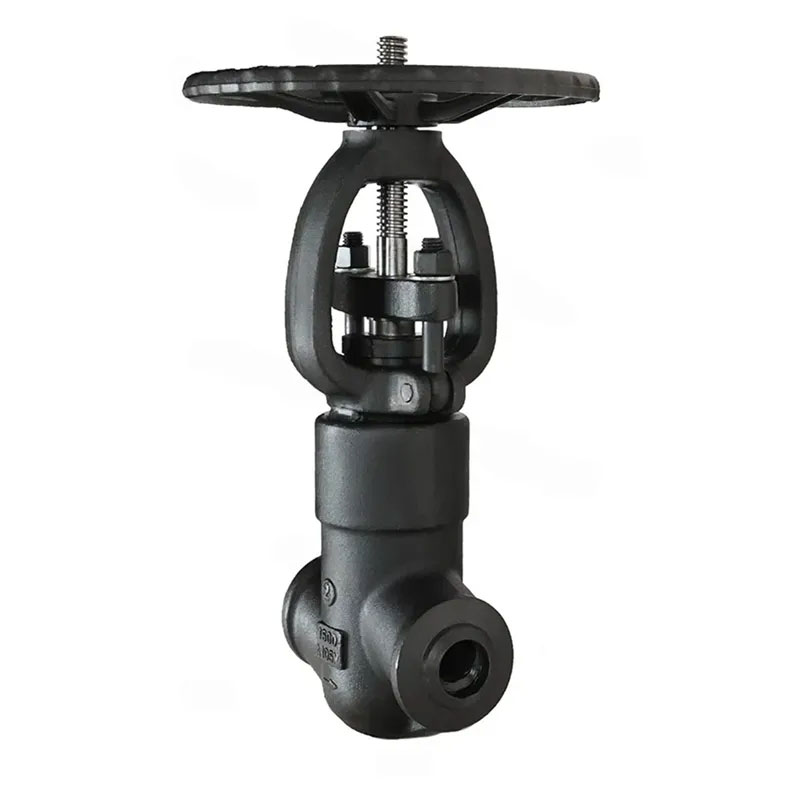

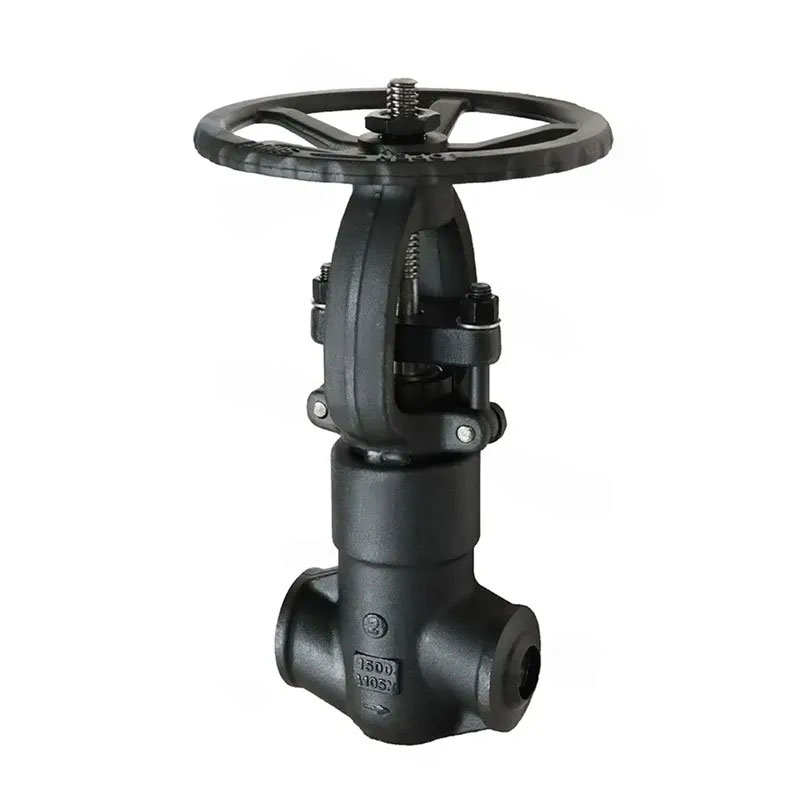

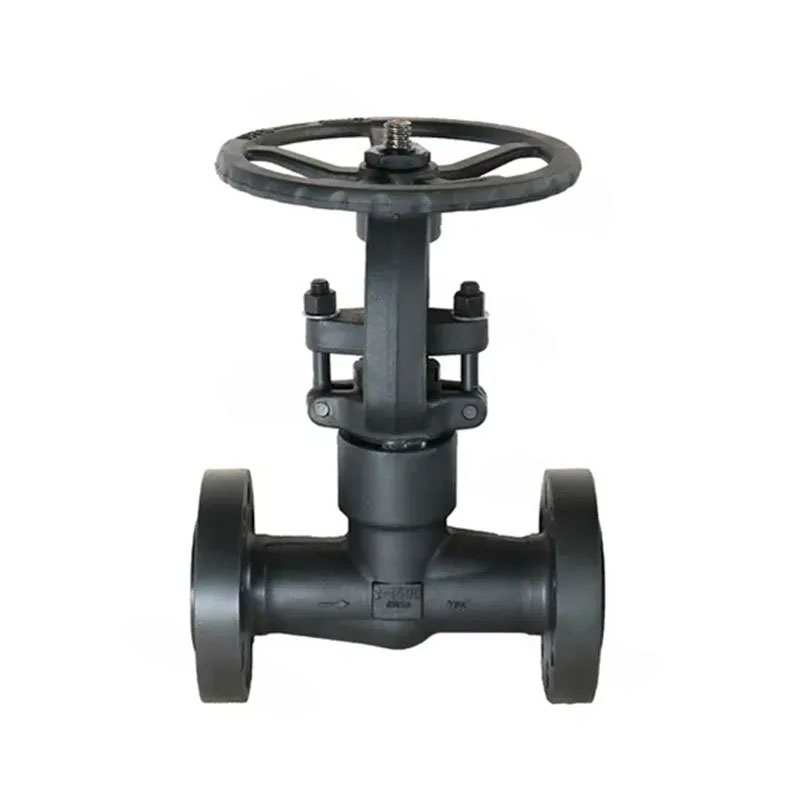

The JOEPAI Forged Steel Flanged Pressure Seal Globe Valve made in China makes installation easier. Designed to handle high - pressure conditions, this valve is ideal for industries like oil and gas, power generation, and petrochemicals. In these sectors, where high - pressure fluid control is crucial, the valve's pressure - seal design ensures reliable operation. It can maintain a tight seal even under extreme pressure differentials, preventing leaks and ensuring system safety.This globe valve offers a choice of forged steel A105n, F304, or F316 stainless - steel materials. A105n provides excellent strength for general industrial applications. F304 is suitable for moderately corrosive environments, while F316 offers enhanced corrosion resistance in highly aggressive settings such as chemical plants and marine installations. This versatility makes it adaptable to a wide range of industries.
1.Design - API 602 / BS 5352 / ASME B16.34
2.End Flange - ASME B16.5
3.BW End - ASME B16.25
4.SW End - ASME B16.11
5.Screwed Ends - ASME B1.20.1
6.Test - API598
7.Special - NACE MR-01-75
1.Bolted Bonnet, Welded Bonnet or Pressure Seal Bonnet
2.Plug Type Disc/Conic Disc
3.Full port or Conventional Port
4.Outside Screw and Yoke (OS&Y), Rising Stem
5.Extended Bonnet For Cryogenic Services
6.Material: Body-A105/F11/F22/F304/F316/F316L/F51/F53/F321 etc.
7.Dics and Stem: A105/F11/F22/F304/F316/F316L/F51/F53/F321/F410/13CR.etc
8.Operation: Handwheel
9.Offshore /Oil /Gas /Chemical /Petrochemical Pulp /Paper /Water /Wastewater
/Marine
| Pressure | 150LB | 300LB | 600LB | 900LB | 1500LB | 2500LB | |
| Strength Testing | 3.0 | 7.5 | 15.4 | 23.0 | 37.5 | 63.0 | Mpa |
| Seal Testing | 2.2 | 5.5 | 11.2 | 16.9 | 27.5 | 46.2 | |
| Air Testing | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 |
| NO | NAME | CS to ASTM | AS to ASTM | SS to ASTM | |
| Type A105 | Type F22 | Type F304(L) | Type F316(L) | ||
| 1 | BODY | A105 | A182 F22 | A182 F304(L) | A182 F316(L) |
| 2 | GASKET | Corrugated SS+graphite | SS+PTFE | ||
| 3 | BOLT | A193 B7 | A193 B16 | A193 B8 | A193 B8M |
| 4 | PIN | A276 420 | A276 304 | ||
| 5 | PACKING GLAND | A276 410 | A182 F304(L) | A182 F316(L) | |
| 6 | BOLT | A193 B7 | A193 B16 | A193 B8 | A193 B8M |
| 7 | NUT | A194 2H | A194 4 | A194 8 | A194 8M |
| 8 | NUT | A276 410 | |||
| 9 | NUT | A194 2H | A194 4 | A194 8 | A194 8M |
| 10 | NAMEPLATE | SS | |||
| 11 | HANDWHEEL | A197 | |||
| 12 | GLAND | A216 WCB | A351 CF8 | ||
| 13 | PACKING | Flexible Graphite | PTFE | ||
| 14 | BONNET | A105 | A276 304 | A182 F304(L) | A182 F316(L) |
| 15 | STEM | A182 F6 | A182 F304 | A182 F304(L) | A182 F316(L) |
| 16 | DISC | A276 420 | A276 304 | A276 304(L) | A276 316(L) |
| 17 | MEDIUM | WATER, OIL, GAS | WATER, OIL, GAS | ACID, WATER, OIL, GAS | |
| 18 | TEMPERATURE | -29ºC~425ºC | -29ºC~550ºC | -29ºC~550ºC | |
| SIZE | S | L | T | W | H ≈ | WEIGHT(KG) ≈ | ||||||
| INCH | DN | ANSI | JIS | 800Lb | 2500 Lb | A N S I | ISO, BS | J I S | 800Lb | 2500 Lb | ||
| NPI | RC | PT | ||||||||||
| 1/2 | 15 | 21.8 | 22.2 | 140 | 186 | 1/2 | 125 | 321 | 2.2 | 12.3 | ||
| 3/4 | 20 | 27.1 | 27.7 | 140 | 186 | 3/4 | 125 | 321 | 2.4 | 11.6 | ||
| 1 | 25 | 33.8 | 34.5 | 140 | 186 | 1 | 160 | 321 | 4.1 | 10.8 | ||
| 11/4 | 32 | 42.6 | 43.2 | 178 | 232 | 1 1/4 | 160 | 380 | 6 | 26.0 | ||
| 11/2 | 40 | 48.7 | 49.1 | 178 | 232 | 1 1/2 | 180 | 414 | 7 | 26.4 | ||
| 2 | 50 | 61.1 | 61.1 | 216 | 279 | 2 | 200 | 502 | 10.5 | 43.8 | ||
