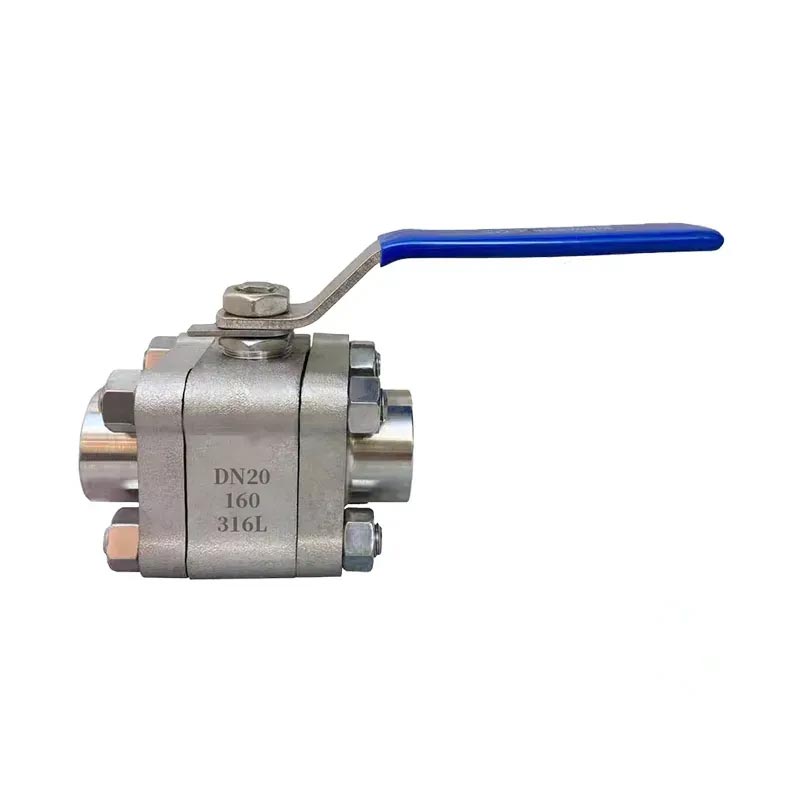

The JOEPAI High Pressure Screw Forged 3PC Stainless Steel Ball Valve is capable of providing seamless flow control and minimal pressure loss for high-pressure applications. Considering durability and efficiency, it is highly suitable for industries such as oil and gas, chemical processing, water treatment, and HVAC. It adopts a full port design, fixed flange end and pneumatic drive, with reliable, leak proof performance and easy operation characteristics. Choose Qiaopai to obtain high-quality and customizable valve specific solutions to meet the needs of different application scenarios.
(1) Design standard: ASME B16.34, API608
(2) Ends:NPT,Butt Welding,Socket Welding,
(3) Testing: API 598
(4) Material:F304,F316,A105N
(5) Size: 1/2", 3/4", 1", 1-1/4", 1-1/2", 2"
(6) Working pressure: 2000 PSI,PN130,800LB
(7) Seat Material: RPTFE
(8) Working temperature: -20 to 300°C
(9) Working medium: Water, Oil, Gas, Steam, Acid, etc
| No. | Parts | Material | ||
| 1 | Body | F316 | F304 | A105N |
| 2 | Cap | F316 | F304 | A105N |
| 3 | Ball | F316 | F304 | |
| 4 | Stem | F316 | F304 | |
| 5 | Bolt | 304 | ||
| 6 | Gland Nut | 304 | ||
| 7 | Nut | 304 | ||
| 8 | Spring Washer | 304 | ||
| 9 | Handle | SS | ||
| 10 | Seat | RPTFE | ||
| 11 | Stem Packing | RPTFE | ||
| 12 | Gasket Sealing | 304+Graphite | ||
| 13 | Thrust Washer | RPTFE | ||
| DN | G | DN | D | L | W | H |
| 15 | 1/2" | 14 | 35 | 92 | 120 | 70 |
| 20 | 3/4" | 20 | 40 | 111 | 120 | 80 |
| 25 | 1" | 23 | 50 | 127 | 130 | 90 |
| 32 | 11/4" | 32 | 60 | 140 | 160 | 110 |
| 40 | 11/2" | 38 | 65 | 152 | 160 | 120 |
| 50 | 2" | 49 | 78 | 158 | 280 | 130 |
The High Pressure Screw Forged 3PC Stainless Steel Ball Valve is the same type of valve as a plug valve, except that its closing element is a sphere that rotates around the centerline of the valve body to achieve opening and closing.
The High Pressure Screw Forged 3PC Stainless Steel Ball Valve is mainly used in pipelines to quickly cut, distribute, and change the flow direction of media.
1. The fluid resistance of the High Pressure Screw Forged 3PC Stainless Steel Ball Valve is low, and its resistance coefficient is equal to that of a pipe segment of the same length.
2. Simple structure, small size, and light weight.
3. Tight and reliable. At present, plastic is widely used as the sealing surface material for ball valves, which has good sealing performance and has been widely used in vacuum systems.
4. Pneumatic three piece ball valve is easy to operate and quickly opens and closes. From fully open to fully closed, it only requires a 90 ° rotation, making it easy to control remotely.
5. Easy to maintain, the pneumatic ball valve has a simple structure, and the sealing ring is generally movable, making it easy to disassemble and replace.
6. When fully open or fully closed, the sealing surface between the ball and the valve seat is isolated from the medium, and the passage of the medium will not cause erosion of the valve sealing surface.
7. The High Pressure Screw Forged 3PC Stainless Steel Ball Valve has a wide range of applications, with diameters ranging from a few millimeters to a few meters, and can be used for high vacuum to high pressure.
If you need more information or place an order, please contact our professional sales team immediately!
