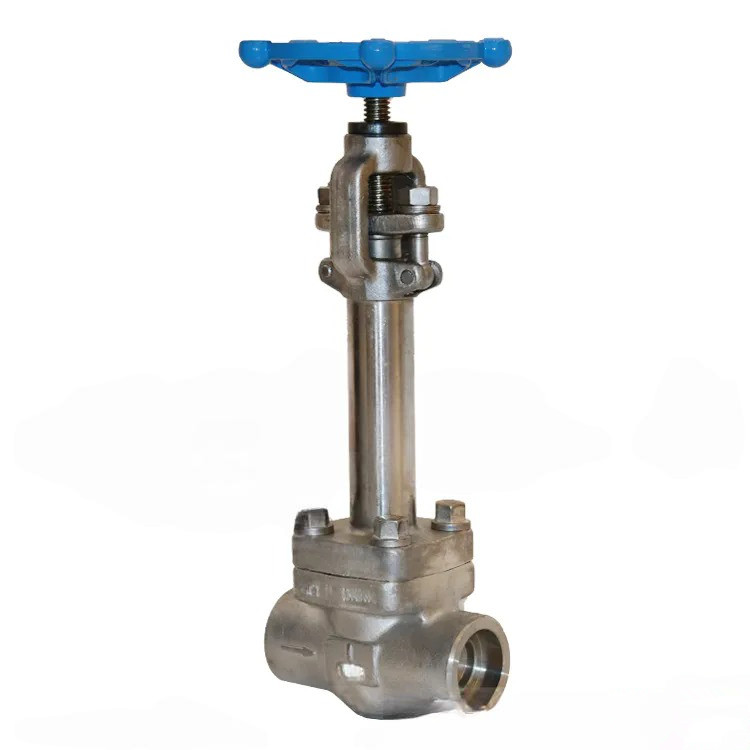

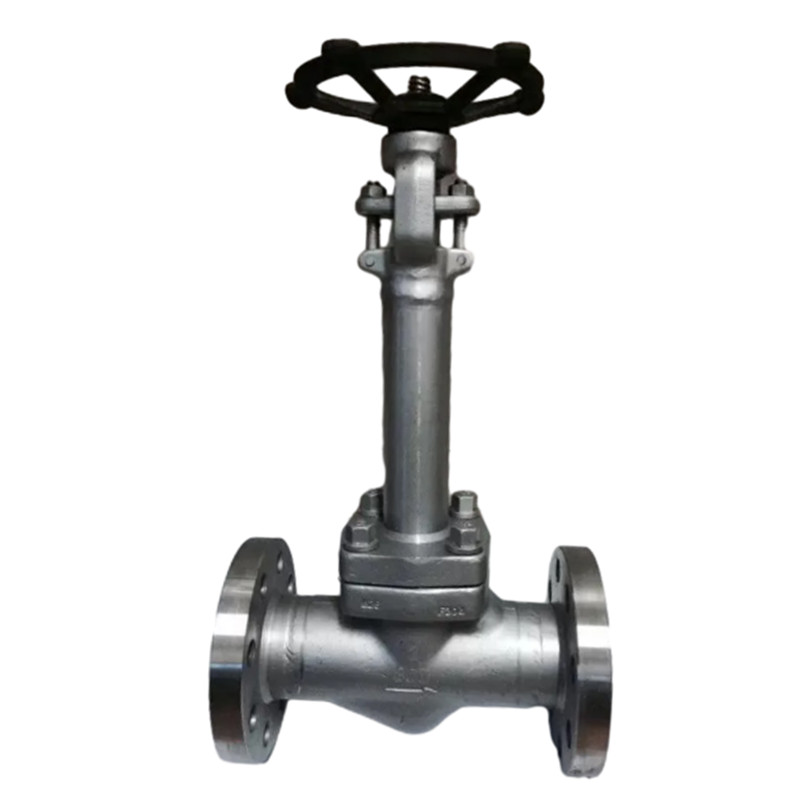

Low Temperature Forged Steel Cryogenic Application Globe Valve

Wenzhou joepai Valve Co., Ltd. has been focusing on industrial valve manufacturing since 2003. Low Temperature Forged Steel Cryogenic Application Globe Valve is widely used in industries such as petroleum, natural gas, chemical, and power. We have obtained multiple international certifications such as API, CE, ISO9001, and established a complete quality control and customized service system. Qiaopai has a mature low-temperature valve process system and cryogenic testing equipment for low-temperature and extreme working conditions.

Cryogenic Globe Valve Material:

Body materials: Forged Carbon Steel A105,Forged Stainless Steel F304/F316/F304L/F316L,Forged Duplex Stainless Steel,Low Temperature Forged Carbon Steel,  Forged Duplex Stainless Steel, Forged Super Duplex Stainless Steel, Nickel Alloys, Nickel Aluminum Bronze, Hastelloy, Inconel Etc.

Wedge disc material: WCB,CF3/CF3M,CF8/CF8M

Stem material: F304/304L,F316/316L,ICr13

Packing: PTFE,Graphite

Packing gland: WCB,CF3/CF3M,CF8/CF8M

Handwheel material: ductile cast iron

Applicable Standards：

1.Design - API 602 / BS 5352 / ASME B16.34

2.End Flange - ASME B16.5

3.BW End - ASME B16.25

4.SW End - ASME B16.11

5.Screwed Ends - ASME B1.20.1

6.Test - API598

7.Special - NACE MR-01-75

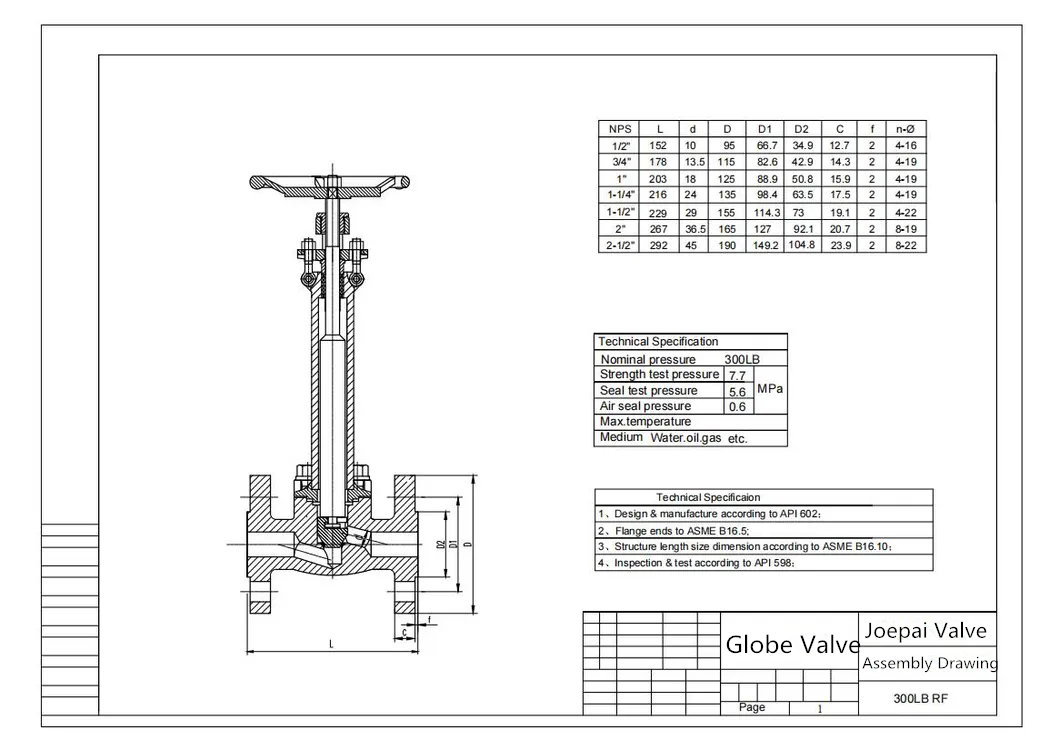

Specification:

1.Size: ½" up to 2"(DN 15 up to DN 50)

2.Pressure Rating: ASME 150# to 2500#

3.End Connection: Flanged RF, FF, RTJ, BW, NPT, SW Ends

4.Operator: Handwheel, Pneumatic,Electric Actuator

Features:

1.Bolted Bonnet, Welded Bonnet or Pressure Seal Bonnet

2.Plug Type Disc/Conic Disc

3.Full port or Conventional Port

4.Outside Screw and Yoke (OS&Y), Rising Stem

5.Extended Bonnet For Cryogenic Services

The installation and maintenance of globe valves should pay attention to the following matters:

1.The shut-off valve operated by handwheel and handle can be installed at any position in the pipeline.

2.Handwheels, handles, and micro motion mechanisms are not allowed for lifting purposes.

3. The flow direction of the medium should be consistent with the arrow direction shown on the valve body.
