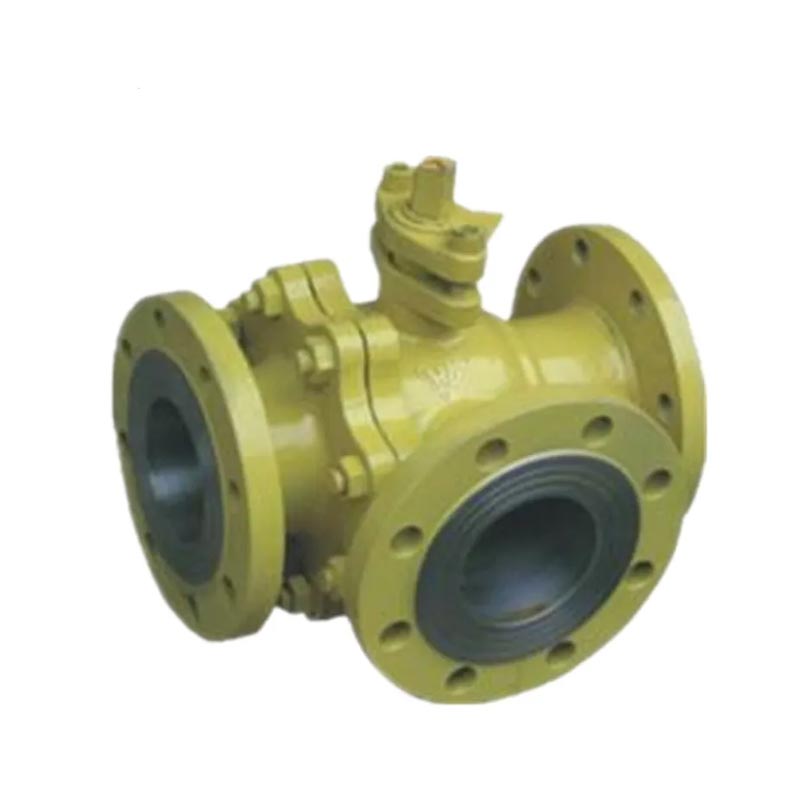

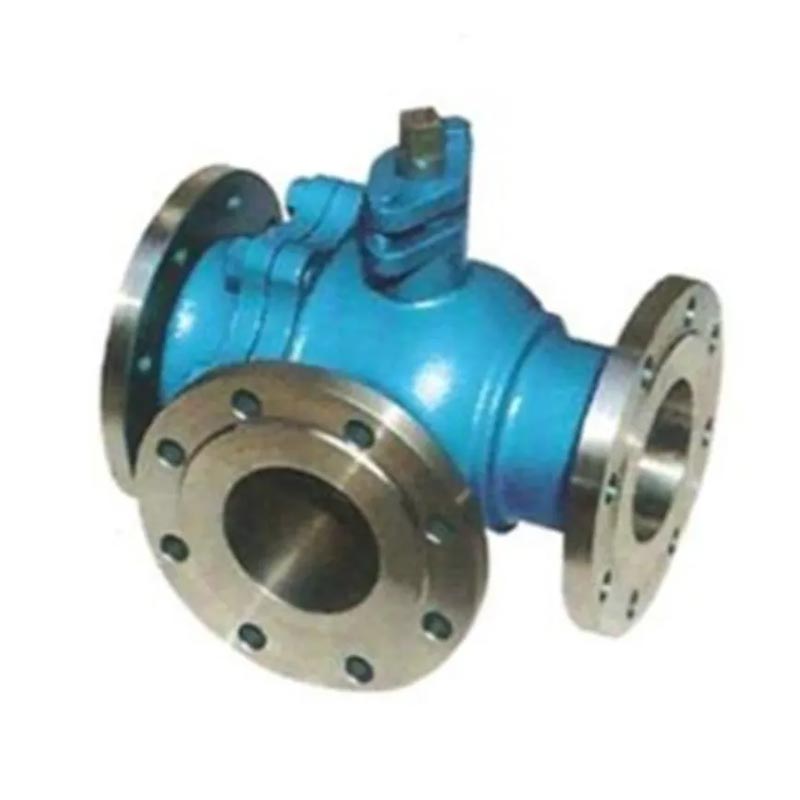

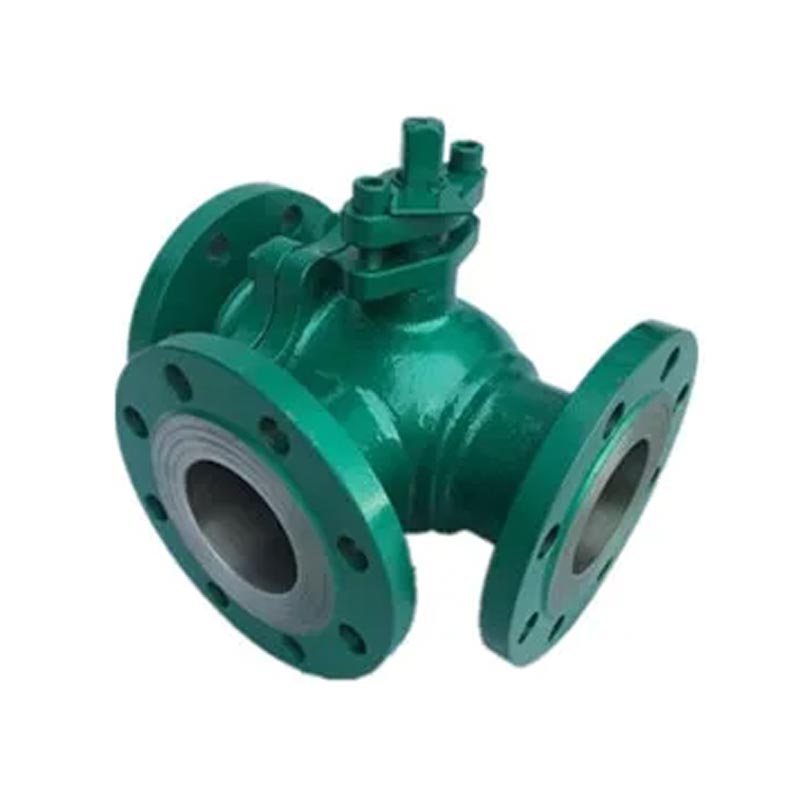

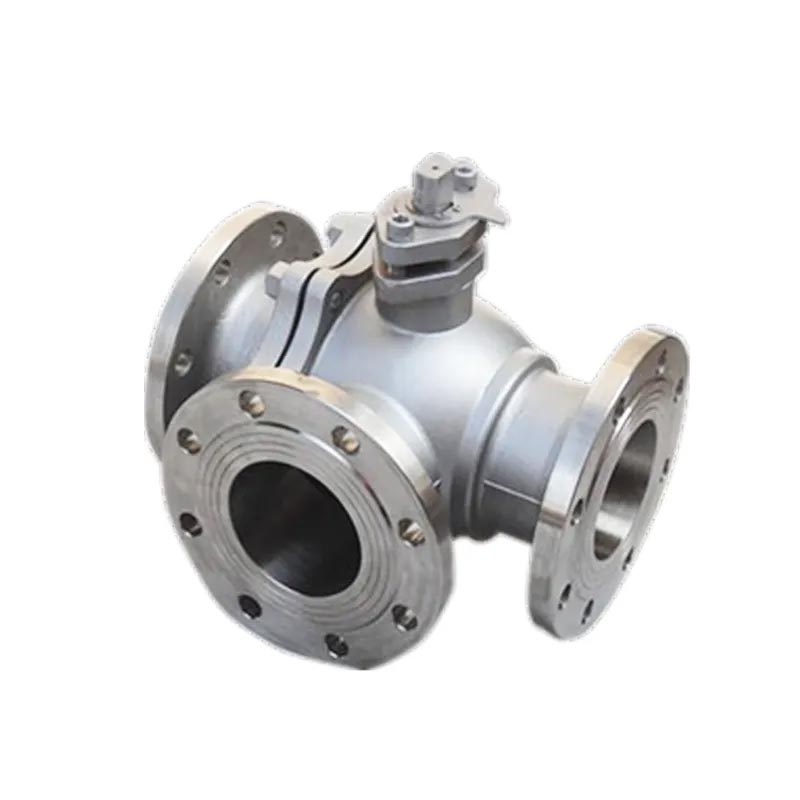

China JOEPAI PN16 Three Way Ball Valve has the advantages of flexible flow control, high sealing performance, and standard flange interface, making it an ideal valve for multi-channel fluid scheduling in industrial automation systems.
Our ball valve with L-shaped flow channel adopts
2-sided seat. Mainly used for reversing flow paths.
The three-way ball valve with T-shaped flow channel adopts
a 4-face valve seat, with balanced force to ensure reliable sealing on the
closed channel. Mainly used for diversion, mixing, reversing, and fully open
three channels.
Techniques:
Type: Q45F,Q345F,Q645F,Q945F
Bore: NPS½~NPS6,DN15~DN150
Rating: Class150~Class300,PN16~PN40
Material: Carbon Steel, Stainless Steel, Alloy Steel , Duplex Stainless
Steel

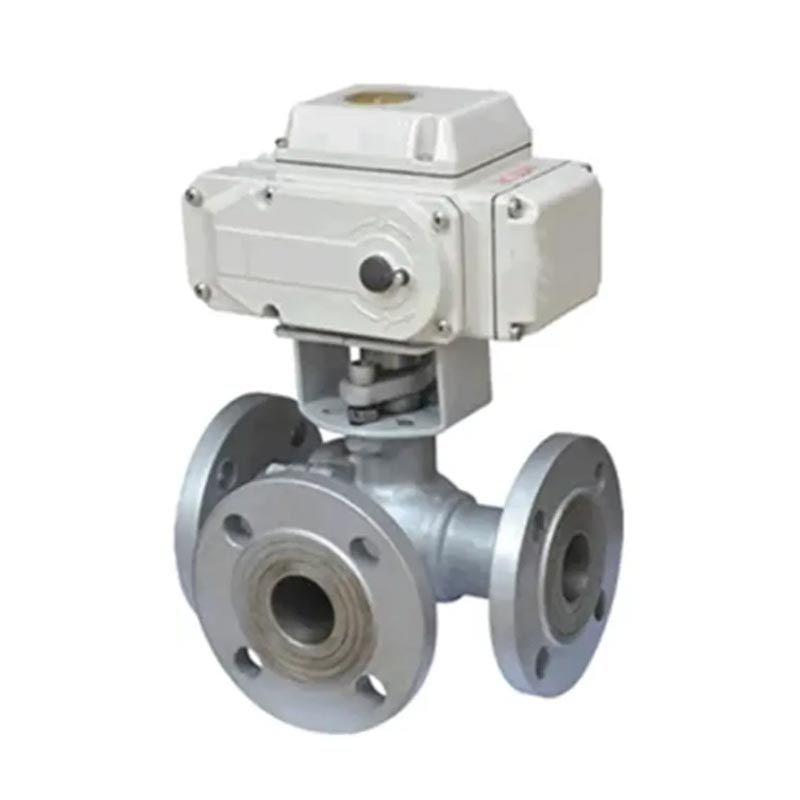

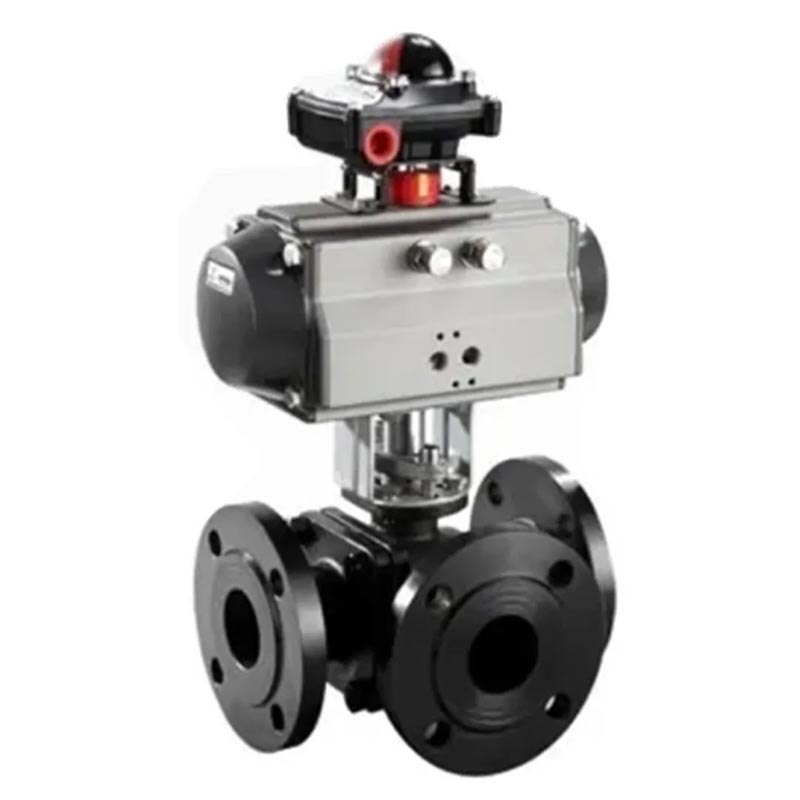

Operation: Manual, Gear Operated, Electric Operated, Pneumatic Operated
Applicable: Oil, Chemical, Natural Gas, Petrochemical, Coal Chemical and so
on
| 1 | Body | WCB/CF8/CF8M | 8 | Stem | SS304/SS316/SS |
| 2 | Cap | WCB/CF8/CF8M | 9 | Thrust Washer | PTFE |
| 3 | Cap | WCB/CF8/CF8M | 10 | Packing | PTFE |
| 4 | Ball | SS304/SS316/SS | 11 | Gland | SS304/SS |
| 5 | Seat | PTFE | 12 | Stem Nut | SS304/SS |
| 6 | Gasket-A | PTFE | 13 | Block Only Retreat | SS304/SS |
| 7 | Gasket-B | PTFE | |||
| Size | in | 2 | 2 1/2 | 3 | 4 | 6 | 8 | 10 | 12 | 14 | 16 |
| mm | 50 | 65 | 80 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | |
| L/L1(RF/BW) | in | 17.75 | 20.00 | 22.75 | 26.5 | 36.00 | 40.25 | 50.00 | 56.00 | / | / |
| mm | 451 | 508 | 578 | 673 | 914 | 1022 | 1270 | 1422 | / | / | |
| L2(RTJ) | in | 17.88 | 21.25 | 23.00 | 26.88 | 36.50 | 40.88 | 50.88 | 56.88 | / | / |
| mm | 454 | 540 | 584 | 683 | 927 | 1038 | 1292 | 1445 | / | / | |
| H | in | 7.50 | 9.00 | 11.00 | 14.12 | 15.75 | 18.88 | 20.50 | 26.38 | / | / |
| mm | 190 | 230 | 280 | 360 | 400 | 480 | 520 | 670 | / | / | |
| W | in | 24 | 32 | 32 | 32 | 32 | 40 | 40 | 40 | / | / |
| mm | 600 | 800 | 800 | 800 | 800 | 1000 | 1000 | 1000 | / | / | |
| WT(Kg) | RF/RTJ | 68 | 95 | 120 | 185 | 675 | 1100 | 1650 | 2300 | / | / |
| BW | 54 | 74 | 91 | 122 | 555 | 918 | 1355 | 2950 | / | / |
