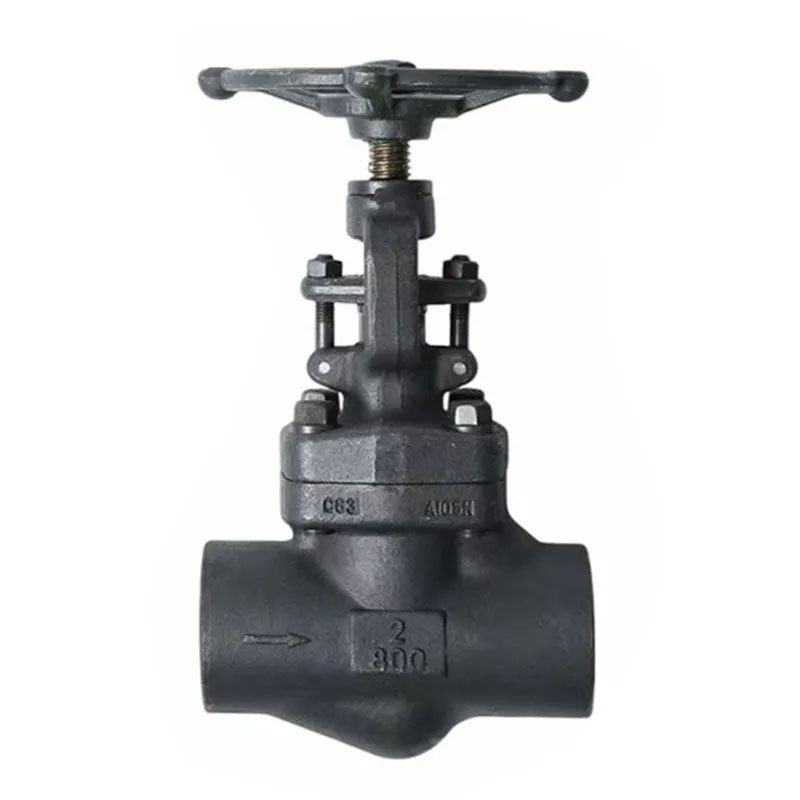

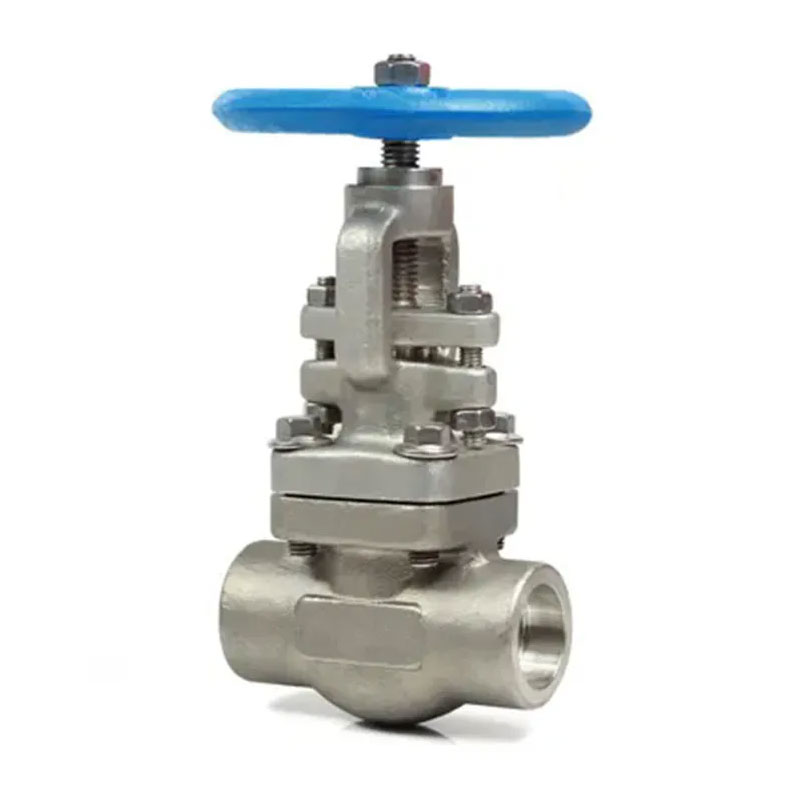

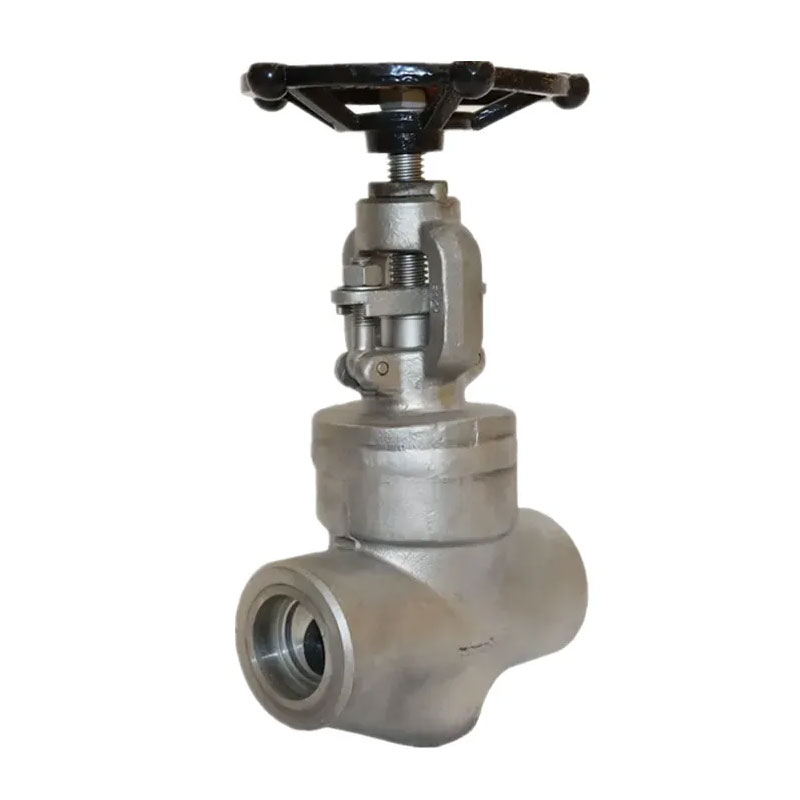

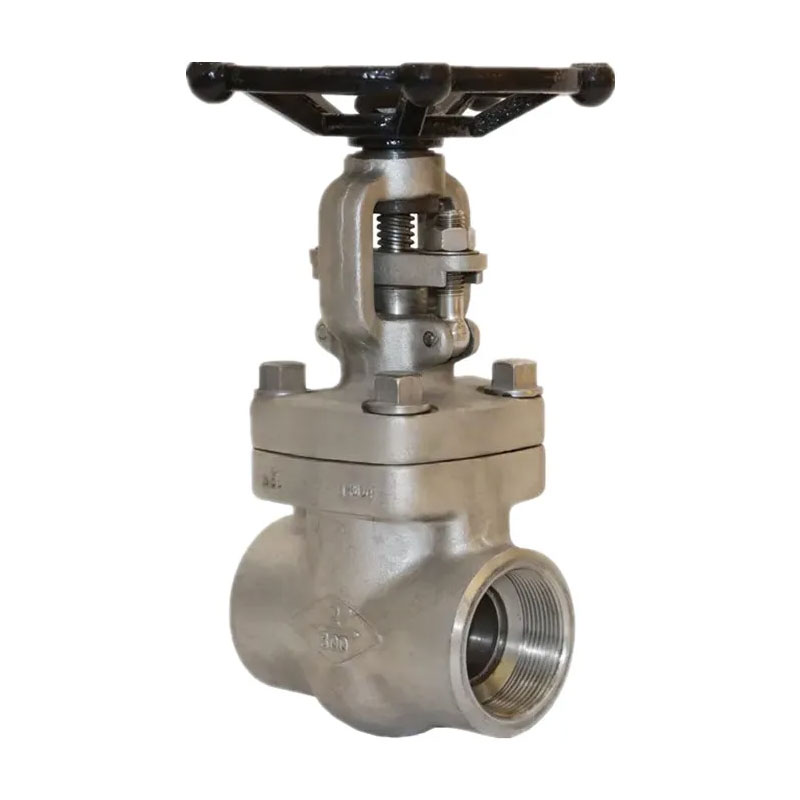

JOEPAI durable Stainless Steel Socket Welded Bonney Forge Globe Valve is a precision fluid control core component in engineering projects, and has become one of the preferred valves in engineering projects due to its stable sealing performance, high-strength valve body structure, and brand guarantee. If you have specific specification requirements during the procurement or technical consultation process, please feel free to contact us for detailed technical manuals, original factory information, and price lists.
1.Body materials: A105/F304/F316/F5/F9/F11/F22/F531/F91/F92/F304L/F316L/F51/F53/LF2,etc.
2.Size 1/2"-2"
3.Wedge disc material: WCB,CF3/CF3M,CF8/CF8M
4.Stem material: F304/304L,F316/316L,ICr13
5.Packing: PTFE,Graphite
6.Packing gland: WCB,CF3/CF3M,CF8/CF8M
7.Handwheel material: ductile cast iron
8.Suitable Medium Water,Natural Gas,oil and some corrosive liquid
9.Connection Ends NPT/SW/BSP/BSPT/BW/Flange
10.Operation: manual,pneumatic,electric
11.Port Full Port/Reduce Port
12.Working Pressure 150LB-2500LB
13.Working Temp -29~425ºC,or according to customer requirements for different industry.
14.Inspenction and Testing According to API598
- Body-bonnet connections are typically constructed in either bolted or
welded configurations.
- All pressure-containing components feature a fully die-forged structure.
- Flanged valves are manufactured with integral flanges forged as part of
the valve body.
- The standard gasket for bolted-bonnet valves is the spiral wound type for
pressure ratings up to ASME Class 1500. For ASME Class 2500 and above, Ring
Joint gaskets are standard. Spiral wound or Ring Joint gaskets can also be
supplied upon request for any pressure class.
- High-performance packing materials conforming to API 622 ensure tight
sealing and low emissions, in full compliance with API 624 requirements.
- The standard seat design is of the screwed-in type, with an integral seat
available as an alternative.
- Large flow port designs combined with optimized disc retraction reduce
flow velocity and extend the service life of the valve.
- Outside Screw and Yoke (OS&Y) construction.
- Low operating torque for ease of use.
- Self-aligning, two-piece packing gland design.

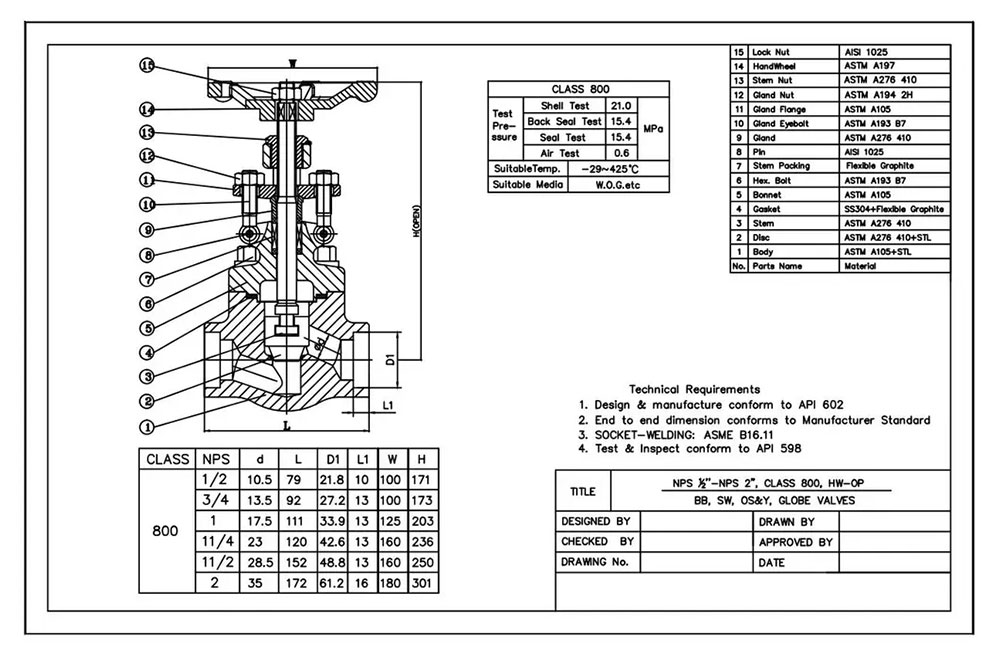

| Socket weld end/Screwed end | ANSI B16.11/ANSI B1.20.1 |
| Design standard | API 602, ASME B16.34 |
| Pressure Range | 150LB to 2500LB |
| Size Range | 1/4" to 3" |
| Material | Forged Carbon, Stainless or Alloy Steel Materials |
| Connection type | Socket weld end/Screwed en |
| Working Temperature | ≤500°C |
| Operating Type | Handwheel |
| Sealing surface material | Alloy |
| Pressure test | GB/T13927, API598 |
| Face to Face | GB/T12221, ASME B16.10 |
