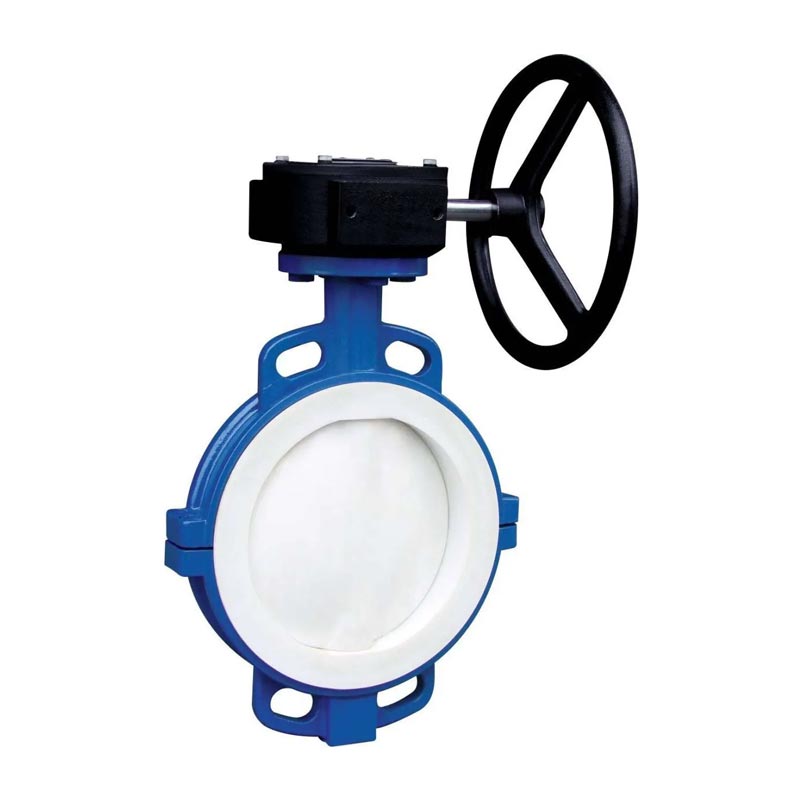

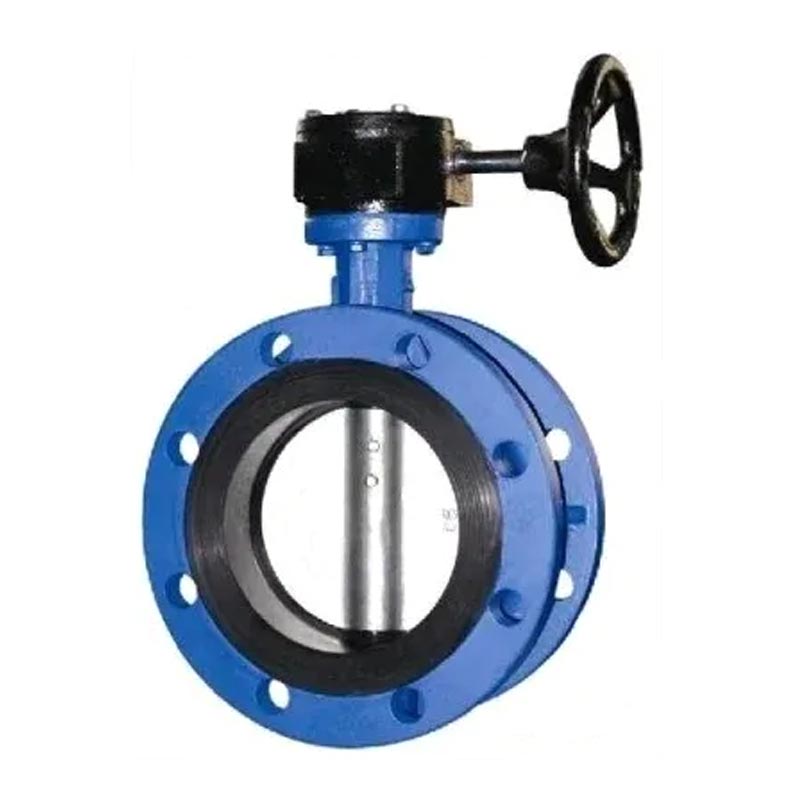

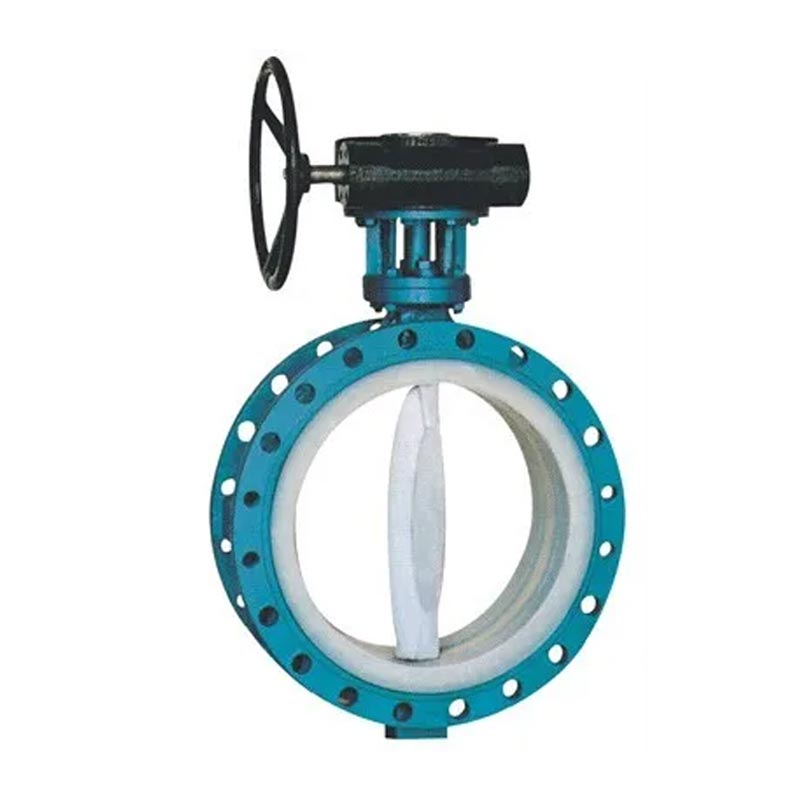

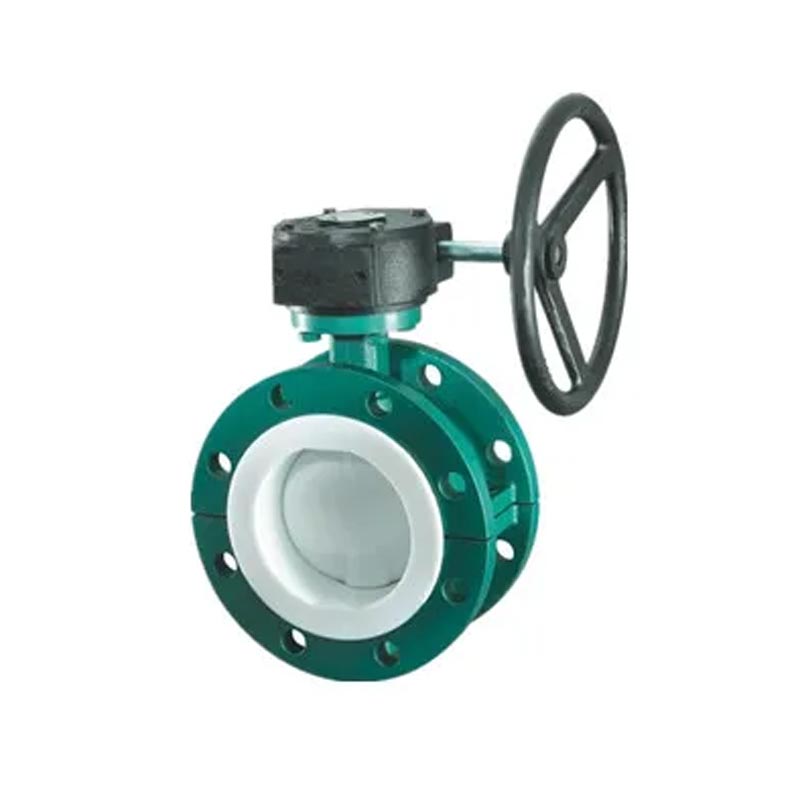

The JOEPAI durable Worm Gear Operated U Flange Lined Butterfly Valve features a fully lined structure and U shaped reinforcement design, making it particularly suitable for chemical and corrosive media transportation applications. Its worm gear drive system is widely used in global industrial fluid control systems and is a safe, efficient, and economical valve.

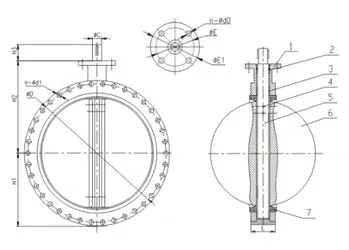

| NO. | Part Name | Material | Optional Material |
|
|
| 1 | Body | DI | CI, WCB, Stainless Steel | ||
| 2 | O Ring | NBR | EPDM, FKM | ||
| 3 | Bushing | PTFE | |||
| 4 | Pin | ASTM A276 416 | 316, 17-4PH | ||
| 5 | Shaft | ASTM A276 416 | 316, 17-4PH | ||
| 6 | Disc | Plated Ductile Iron | ASTM A351 CF8/CF8M, B148 C954/C958 | ||
| 7 | Seat | NBR | EPDM, FKM | ||
| SIZE | L | EN 1092-2 PN10 | EN 1092-2 PN16 | H1 | H2 | H3 | ΦC | ΦE1 | ΦE | n-Φd0 | ||
| ΦD | n-Φd1 | ΦD | n-Φd1 | |||||||||
| DN100 | 52 | 180 | 8-Φ19 | 180 | 8-Φ19 | 110 | 200 | 32 | 16 | 90 | 70 | 4-10 |
| DN125 | 56 | 210 | 8-Φ19 | 210 | 8-Φ19 | 125 | 213 | 32 | 19 | 90 | 70 | 4-10 |
| DN150 | 56 | 240 | 8-Φ23 | 240 | 8-Φ23 | 143 | 226 | 32 | 19 | 90 | 70 | 4-10 |
| DN200 | 60 | 295 | 8-Φ23 | 295 | 12-Φ23 | 170 | 260 | 37 | 22 | 125 | 102 | 4-12 |
| DN250 | 68 | 350 | 12-Φ23 | 355 | 12-Φ28 | 203 | 292 | 37 | 28 | 125 | 102 | 4-12 |
| DN300 | 78 | 400 | 12-Φ23 | 410 | 12-Φ28 | 242 | 337 | 37 | 32 | 125 | 102 | 4-12 |
| DN350 | 78 | 460 | 16-Φ23 | 470 | 16-Φ28 | 267 | 368 | 45 | 32 | 125 | 102 | 4-12 |
| DN400 | 102 | 515 | 16-Φ28 | 525 | 16-Φ31 | 297 | 400 | 51 | 33 | 175 | 140 | 4-18 |
| DN450 | 114 | 565 | 20-Φ28 | 585 | 20-Φ31 | 318 | 422 | 51 | 38 | 175 | 140 | 4-18 |
| DN500 | 127 | 620 | 20-Φ28 | 650 | 20-Φ34 | 348 | 480 | 64 | 41 | 175 | 140 | 4-18 |
| DN600 | 154 | 725 | 20-Φ31 | 770 | 20-Φ37 | 444 | 562 | 70 | 51 | 210 | 165 | 4-22 |
| DN700 | 165 | 840 | 24-Φ31 | 840 | 24-Φ37 | 505 | 624 | 66 | 63 | 300 | 254 | 8-18 |
| DN800 | 190 | 950 | 24-Φ34 | 950 | 24-Φ41 | 565 | 672 | 66 | 63 | 300 | 254 | 8-18 |
| DN900 | 203 | 1050 | 28-Φ34 | 1050 | 28-Φ41 | 637 | 720 | 118 | 75 | 300 | 254 | 8-18 |
| DN1000 | 216 | 1160 | 28-Φ37 | 1170 | 28-Φ44 | 700 | 800 | 142 | 85 | 300 | 254 | 8-18 |
| DN1200 | 254 | 1380 | 32-Φ41 | 1390 | 32-Φ50 | 844 | 940 | 160 | 105 | 350 | 298 | 8-22 |
Butterfly valves have a simple structure, small size, light weight, and relatively few components. Only a few key parts can form a butterfly valve, which is very convenient to open. Simply select the switch to 90 degrees. Butterfly valves have excellent control over fluids, and can increase or decrease flow at any time.
Valves have a certain resistance when transporting any fluid, and the resistance of butterfly valves mainly comes from themselves, such as the thickness of the butterfly valve body. If you want to reduce the resistance to fluids, you only need to reduce its thickness.
Elastic seals have the drawback of being limited by temperature.
The application range of Worm Gear Operated U Flange Lined Butterfly Valve is also relatively wide. If it is used to control flow, different types and valve body sizes need to be selected because butterfly valves are designed to be suitable for valves with larger diameters. The valve is widely used not only in general industries such as petroleum, gas, chemical, and water treatment, but also in cooling water systems for thermal power plants.
