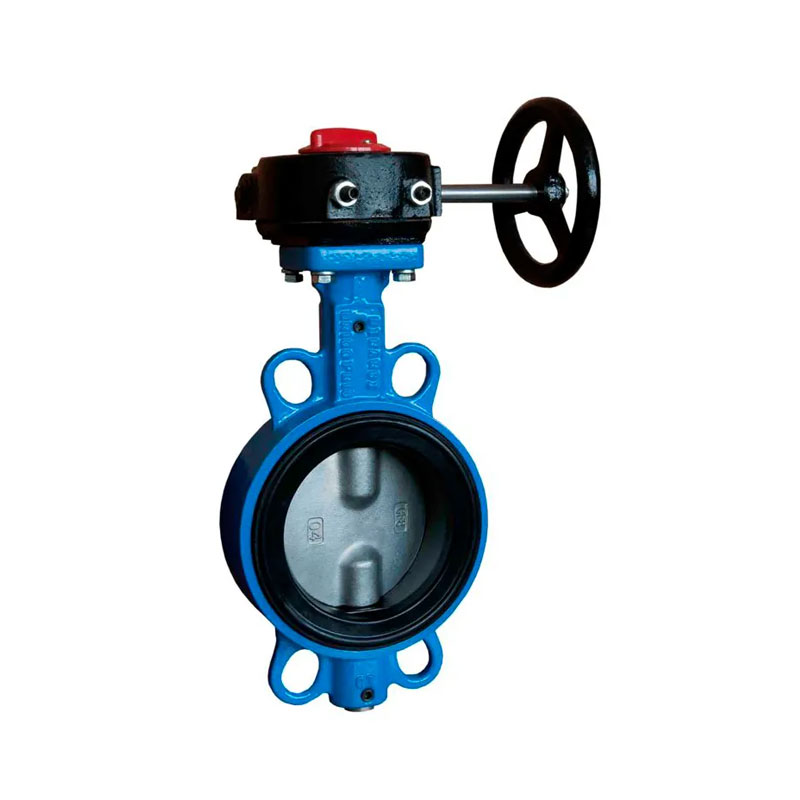

Gear Operated Wafer Butterfly Valves

The Gear Operated Wafer Butterfly Valves are a high quality clamp type butterfly valve designed by JOEPAI Valve specifically for industrial fluid systems. It is suitable for cutting off and regulating fluids in pipeline systems in water supply, HVAC, chemical, environmental protection, energy and other fields.

This product has a compact structure, light weight, easy installation, strong adaptability, and can be clamped between different flange standards (such as ANSI, DIN, JIS, etc.), suitable for use in space limited or light load systems. The Gear Operated Wafer Butterfly Valves adopts a handle operation method, with accurate positioning and flexible opening and closing.

The valve seat adopts an elastic sealing structure, with stable and reliable sealing performance, ensuring long-term maintenance free operation.

Key Points for Selecting

1. The main control parameters of Gear Operated Wafer Butterfly Valvess are specifications and dimensions.
2. Butterfly valve is a single plate air valve with a simple structure, easy processing, low cost, and easy operation. However, its adjustment accuracy is poor, and it is only suitable for use as a switch or rough adjustment in ventilation and air conditioning systems.
3. It can be operated manually, electrically, or zippered, and can be fixed at any angle within a 90 ° range.
4. Due to the limited load-bearing capacity of the single axis single valve plate, the service life of the valve is short under conditions of large pressure difference and high flow rate. This valve can be divided into sealed and ordinary types, insulated and non insulated types.
5. Electric butterfly valves only have dual position control, and the electric actuator is the same as multi leaf valves.
