Sanitary tri-clamp butterfly valve is a high purity fluid control product manufactured by Wenzhou JOEPAI Valve Co., Ltd. specifically for the food, pharmaceutical, biotechnology, and daily chemical industries. It adopts a quick installation (three clamp) connection structure, which is easy to disassemble and clean, and can meet the CIP/SIP on-site cleaning and sterilization needs. The Sanitary tri-clamp butterfly valve is entirely made of food grade stainless steel (such as SS304/SS316L). The valve body and sealing ring are mirror polished, with an inner surface roughness of ≤ 0.4 μ m, effectively preventing medium residue and bacterial growth.
Valves can be used to control the flow of various types of fluids such as air, water, steam, various corrosive media, mud, oil, liquid metals, and radioactive media. It mainly plays a role in cutting off and throttling on pipelines. The butterfly valve opening and closing component is a disc-shaped butterfly plate that rotates around its own axis inside the valve body to achieve the purpose of opening, closing, or adjusting.
1. Sanitary Tri-Clamp Butterfly Valves have the characteristics of simple structure, small
volume, light weight, low material consumption, small installation size,
fast opening and closing, 90 ° reciprocating rotation, and small driving
torque. They are used to cut off, connect, and regulate the medium in
pipelines, and have good fluid control characteristics and closing sealing
performance.
2. Butterfly valves can transport mud and accumulate the least amount of
liquid at the pipeline outlet. Under low pressure, good sealing can be
achieved. Good regulation performance.
3. The streamlined design of the butterfly plate reduces fluid resistance
loss, making it an energy-saving product.
4. The valve stem is a through stem structure that has undergone quenching
and tempering treatment, and has good comprehensive mechanical properties,
corrosion resistance, and abrasion resistance. When the Sanitary Tri-Clamp Butterfly Valve is
opened and closed, the valve stem only rotates and does not move up or down.
The packing of the valve stem is not easily damaged and the seal is
reliable. Fixed with the butterfly plate cone pin, the extended end is
designed to prevent the valve stem from bursting out in case of accidental
breakage at the connection between the valve stem and the butterfly
plate.
5. The connection methods include flange connection, clamp connection, butt
welding connection, and lug clamp connection.
The driving forms include manual, worm gear transmission, electric,
pneumatic, hydraulic, electro-hydraulic linkage and other actuating
mechanisms, which can achieve remote control and automated operation.

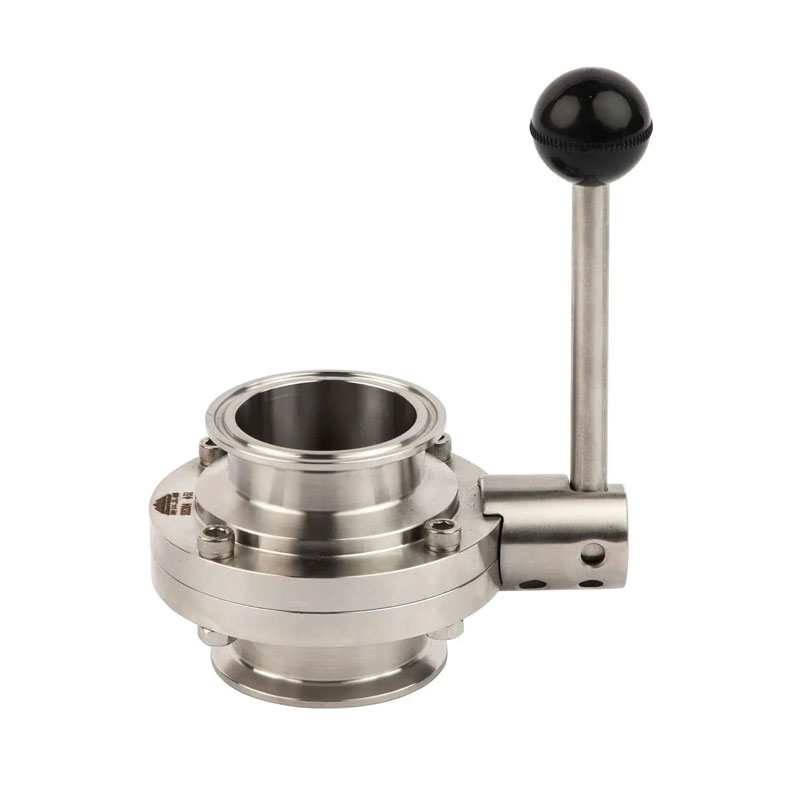

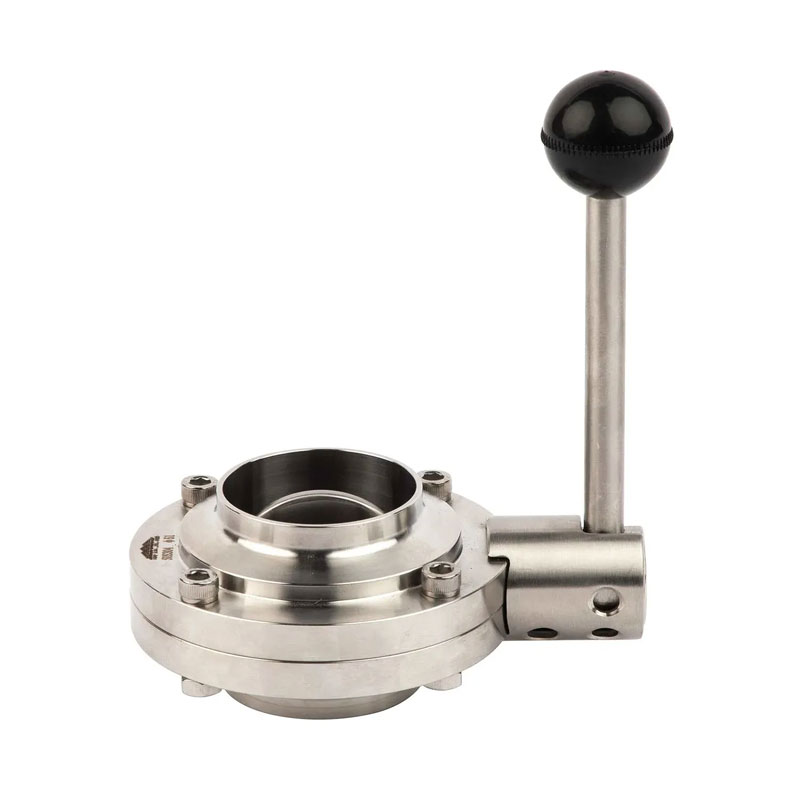

| Product name: | Stainless Steel Manual Tri Clamp Butterfly Valve for Sanitary Industry |
| Valve Body: | SS 304. SS 316L material |
| Feature: | Forged body, CNC one time machining guarantee machining precision |
| Standard: | 3A, SMS, DIN, RJT |
| Surface treatment: | Internal 0.8μm & external 1.2μm polishing. |
| Handle: | Pull handle, multiposition handle, stainless steel or plastic handle; |
| Operation: | From 2 position to 12 position, could be designed as per your requirement. |
| Size: | DN10-304 & 1/2"-12" |
| Design: | Could be operated by handle or pneumatic actuator, or by remote control with controller. |
| Drive forms: | Normally closed, normally opened and double acting. |
| Medium: | Beer, Dairy, Beverage, Pharmacy etc. |
