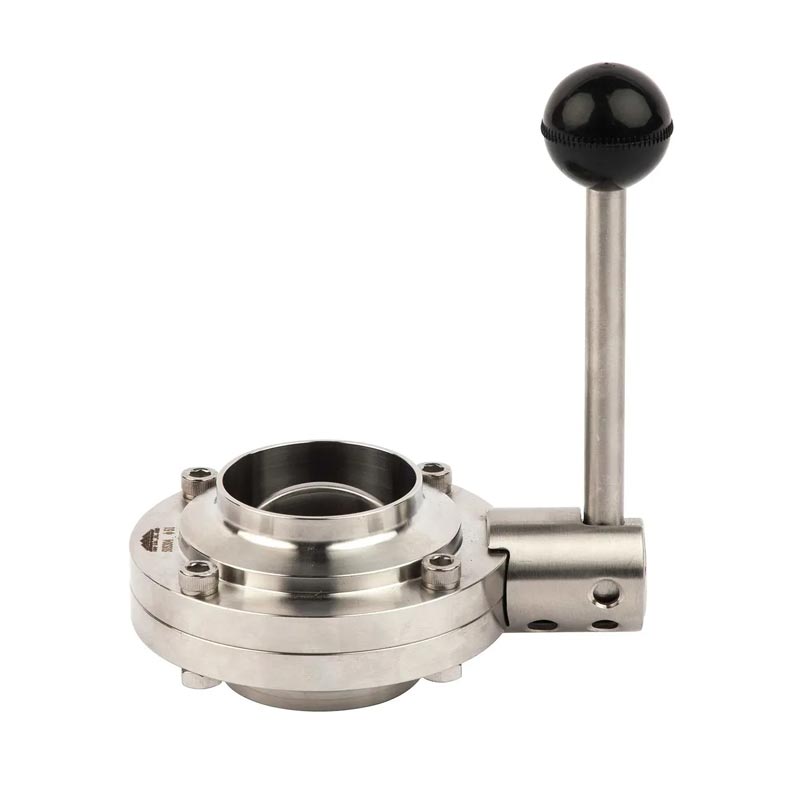

The Food Grade Manual Weld End Sanitary Butterfly Valve is a core fluid control component developed by JOEPAI Valve for industries such as food, pharmaceuticals, dairy, and brewing that require high cleanliness. The product is made of food grade stainless steel, with internal and external mirror polishing treatment and welded end connection structure, suitable for permanent welding installation in the system.
Manual operation is very easy, coupled with adjustable limit devices for easy switch position control, widely used in key links such as CIP/SIP cleaning systems, liquid conveying pipelines, reaction tanks, filling equipment, etc.
| Specification | |
|---|---|
| Product name: | Food Grade Manual Weld End Sanitary Butterfly Valve |
| Valve Body: | SS 304. SS 316L material |
| Feature: | Forged body, CNC one time machining guarantee machining precision |
| Standard: | 3A, SMS, DIN, RJT |
| Surface treatment: | Internal 0.8μm & external 1.2μm polishing. |
| Handle: | Pull handle, multiposition handle, stainless steel or plastic handle; |
| Operation: | From 2 position to 12 position, could be designed as per your requirement. |
| Size: | DN10-304 & 1/2"-12" |
| Design: | Could be operated by handle or pneumatic actuator, or by remote control with controller. |
| Drive forms: | Normally closed, normally opened and double acting. |
| Medium: | Beer, Dairy, Beverage, Pharmacy etc. |
1. Easy and quick opening and closing, labor-saving, low fluid resistance, and can be operated frequently.
2. Simple structure, small external dimensions, short structural length, small volume, light weight, suitable for large-diameter valves.
3. Food Grade Manual Weld End Sanitary Butterfly Valve can transport mud with minimal liquid accumulation at the pipeline outlet.
4. Under low pressure, good sealing can be achieved.
5. Good regulation performance.
6. When fully open, the effective flow area of the valve seat channel is larger and the fluid resistance is smaller.
7. The opening and closing torque is relatively small, and due to the fact that the butterfly plates on both sides of the shaft are subjected to the same medium effect, the direction of torque generated is opposite, making opening and closing more effortless.
8. The sealing surface material is generally made of rubber or plastic, so it has good low-pressure sealing performance.
9. Easy to install.
10. Flexible and labor-saving operation, available in manual, electric, pneumatic, and hydraulic modes.
