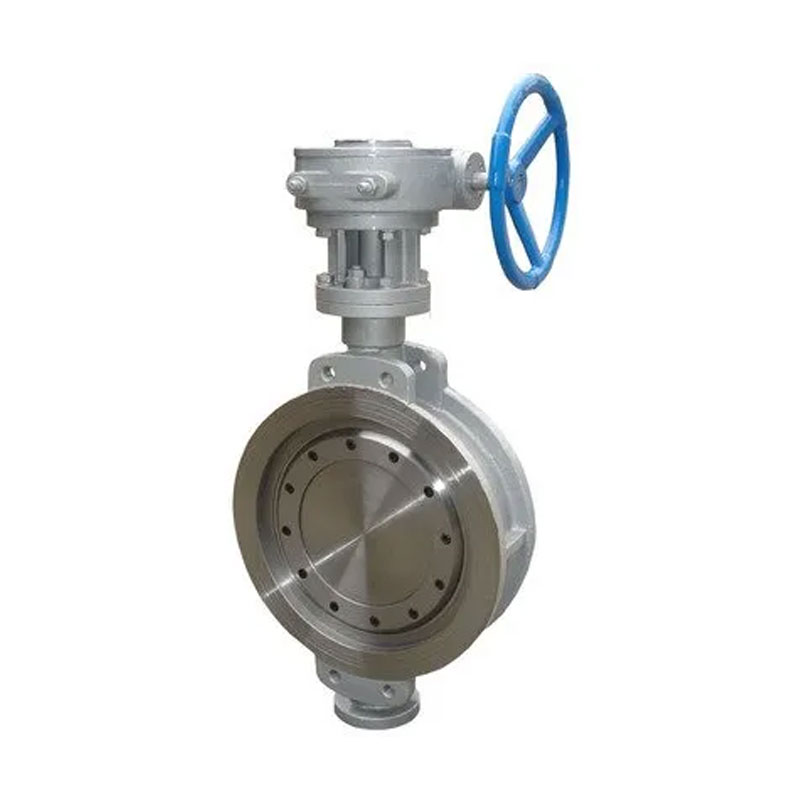

Metal Seated High Performance Butterfly Valve

The JOEPAI Metal Seated High Performance Butterfly Valve is suitable for harsh working conditions such as high temperature, high pressure, and abrasive media. It adopts a metal hard seal and double eccentric structure design, and is widely used in industries such as power, petrochemicals, and metallurgy. JOEPAI supports personalized customization and multiple driving methods Welcome everyone to purchase and inquire!

Product Function

The fully open and fully closed butterfly valve is usually less than 90 °, and the butterfly valve and stem themselves do not have self-locking ability. In order to position the butterfly plate, a worm gear reducer should be installed on the stem. By using a worm gear reducer, not only can the butterfly plate have self-locking ability to stop at any position, but it can also improve the operational performance of the valve.

The characteristics of Metal Seated High Performance Butterfly Valve include high temperature resistance, high pressure range, large nominal diameter, carbon steel valve body, and metal ring instead of rubber ring for valve plate sealing. Large high-temperature butterfly valves are manufactured by welding steel plates and are mainly used for flue gas ducts and gas pipelines for high-temperature media.

Customization and Service

JOEPAI Valve focuses on providing customized services to global customers. Our engineering team can create detailed solutions for you based on the working conditions, drawings, or usage environment provided by the customer.

Whether it's API, ANSI standard adaptation, or special sealing material selection, we can deliver high-performance and cost-effective butterfly valve products for you.

Connection Flange

BS4504 PN10, PN16, PN25 and PN40,
DIN2501 PN10, PN16, PN25 and PN40,
ANSI B16.5, 16.47 / 150LB, 300LB / MSS SP44 CL / 150LB,300LB,
JIS 10K, 16K & 20K / 30K / 40K

Face to Face Dimensions

Conform to API609, BS 5155, ISO 5752 and ANSI B 16.34

Application

1.Nuclear power Plants Petrochemical plants
2.Petroleum refinery Fossil power plants
3.Fire safe line Exhaust gas line & Steam line
4.Cryogenic services
