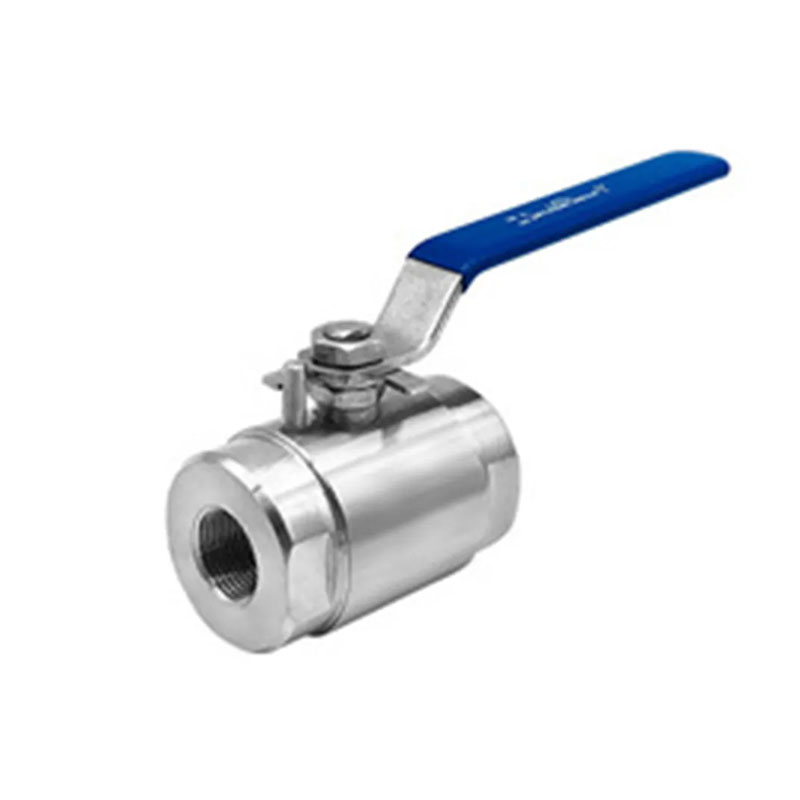

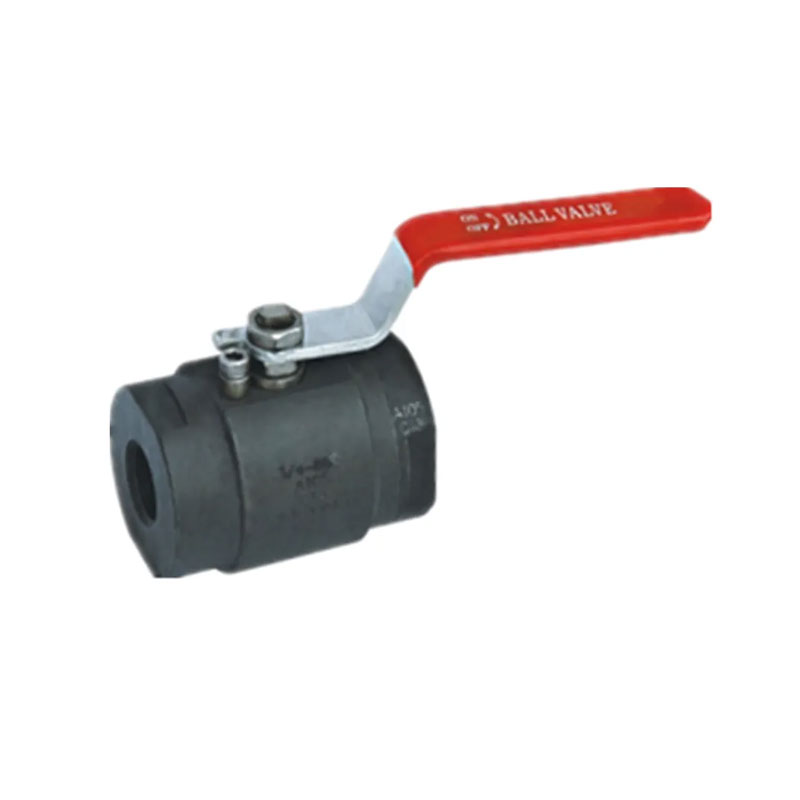

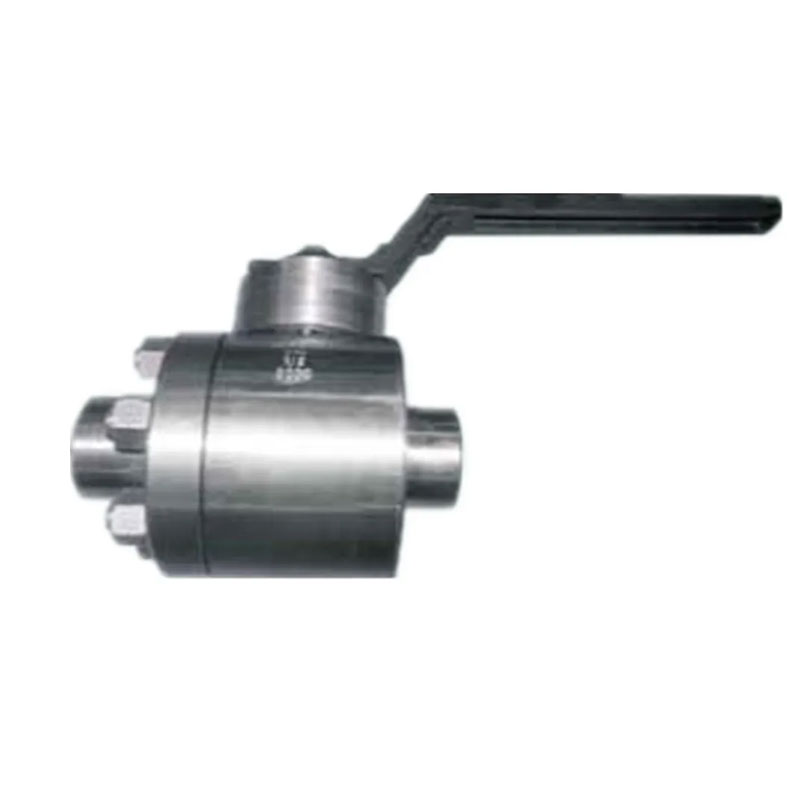

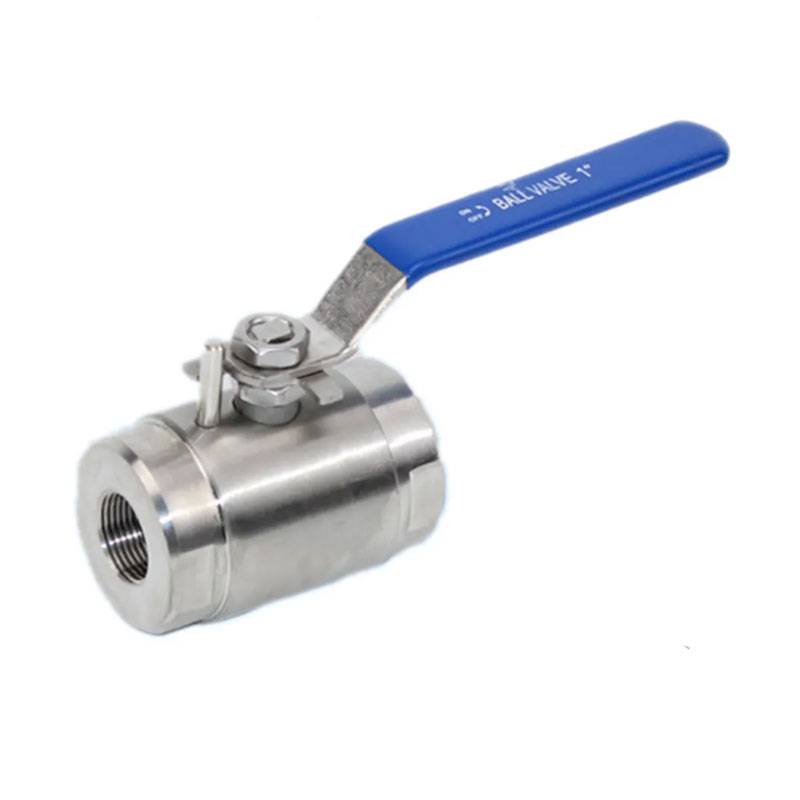

2-PC High Pressure Ball Valve

The main features of JOEPAI High Quality 2-PC High Pressure Ball Valve are its compact structure, reliable sealing, simple structure, easy maintenance, sealing surface and spherical surface are often in a closed state, not easily eroded by the medium, easy to operate and maintain, suitable for general working media such as water, solvents, acids and natural gas, and also suitable for media with harsh working conditions such as oxygen, hydrogen peroxide, methane and ethylene. It has been widely used in various industries. The valve body of a ball valve can be integral or modular.

Product Detail:

THREAD STANDARD: NPT, BSPT, DIN259, DIN2999, ISO228 CLASS A
MAX PRESSURE: 42MPA
TEMPERATURE RANGE: -20C~232C
SUITABLE MEDIUM: WATER, OIL, AIR AND SOME CORROSIVE LIQUIDS
BLOW-OUT PROOF STEM/FULL PORT
FORGING BODY
3000PSI(PN210) W.O.G
MATERIAL STANDARD: S45C/ASTM A216 GR-WCB/DIN1.00619
SS316/ASTM A351 GR-CF8M/DIN1.4408
SS304/ASTM A351 GR-CF8/DIN1.4308

Main Parts and Materials

Main Dimensions

Pay Attention To

When the ball valve is in the closed state, there is still pressurized fluid inside the valve body.
Before maintenance, release the pipeline pressure and keep the valve in the open position.
Before maintenance, disconnect the power or gas source.
Before maintenance, detach the actuator from the bracket.
It is necessary to confirm that the pressure in the upstream and downstream pipelines of the ball valve has been relieved before proceeding with disassembly and assembly operations.
