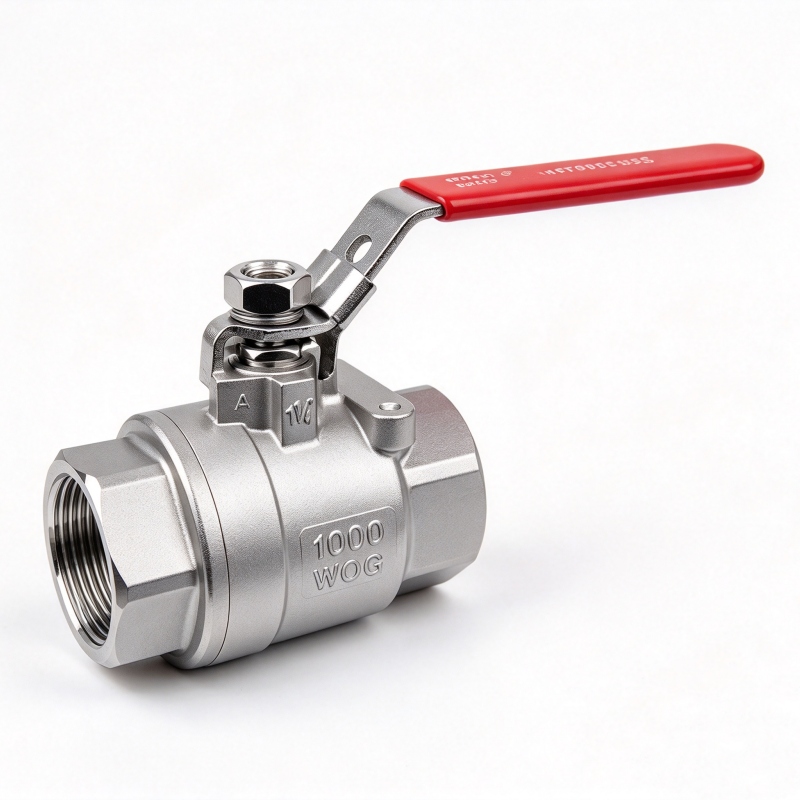

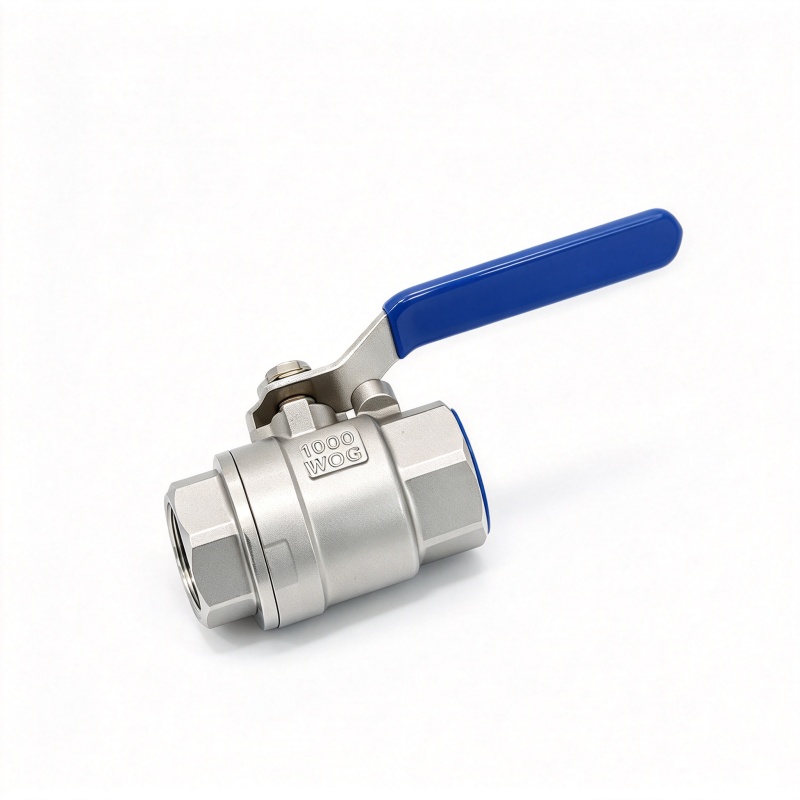

The 2PC Threaded Ball Valve 304 Stainless Steel Full Port 1000WOG produced from JOEPAI features a full bore design that ensures unrestricted flow with minimal pressure loss, combining full bore flow with high pressure tolerance. It is highly suitable for strict industrial applications, meets global thread standards, and can resist corrosion, chemical erosion, and high temperature stress.
| Size Range | 1/4" – 4" (DN8–DN100) |
|---|---|
| Pressure Rating | 1000 PSI / PN63 |
| Connection Type | BSP(G) / NPT / BSPT |
| Body Material | SS304 / SS316 |
| Ball & Stem | Solid Stainless Steel |
| Seat Material | PTFE / RPTFE |
| Temperature Range | -25°C to +180°C |
| Working Media | Water, Oil, Gas, Steam, Chemical |
| Operation | Manual / Optional Actuator Mounting |
Two piece ball valve, also known as quick opening ball valve, internal thread ball valve, or small ball valve.
The 2PC threaded ball valve uses a pin-in-groove stem design that lifts the ball off the seat before rotating. This prevents the ball from scraping the seat surface during every cycle and dramatically extends seal life.
Ensures unrestricted flow with minimal pressure loss across the entire size range.
Rated to 1000WOG / PN63 for demanding industrial pipelines.
SS304 / SS316 body resists corrosion, chemical erosion and high temperature stress.
BSP(G), NPT and BSPT options available for worldwide compatibility.
Durable solid stainless steel ball and stem for long cycle life.
Optional actuator mounting available for automated control systems.
| No. | Part Name | Material |
|---|---|---|
| 1 | Body | WCB / CF8M / CF8 |
| 2 | Cap | WCB / CF8M / CF8 |
| 3 | Seat | PTFE |
| 4 | Ball | SS316 / SS304 / SS |
| 5 | Stem | SS316 / SS304 / SS |
| 6 | Gasket | PTFE |
| 7 | Thrust Washer | PTFE |
| 8 | Packing | PTFE |
| 9 | Gland | SS304 / SS |
| 10 | Handle | SS304 / SS |
| 11 | Spring Washer | SS304 / SS |
| 12 | Stem Nut | SS304 / SS |
| 13 | Locking Piece | SS304 / SS |
| 14 | Plastic Cover | Plastic |
Materials can be customized according to working conditions, media, pressure and temperature requirements.
Standard sizes are listed below. Custom dimensions are available based on your drawings, and our engineering team can provide tailored designs for specific project requirements.
| NPS | DN | D | L | H | W |
|---|---|---|---|---|---|
| 1/2" | 15 | 15 | 62 | 55 | 95 |
| 3/4" | 20 | 20 | 71 | 60 | 110 |
| 1" | 25 | 25 | 79 | 70 | 125 |
| 11/4" | 32 | 30 | 97 | 75 | 145 |
| 11/2" | 40 | 38 | 105 | 86 | 170 |
| 2" | 50 | 49 | 123 | 95 | 170 |
| 21/2" | 65 | 65 | 142 | 128 | 210 |
| 3" | 80 | 80 | 168 | 134 | 240 |
| 4" | 100 | 100 | 208 | 160 | 314 |
Dimensions are for reference. Please confirm final drawings with JOEPAI before ordering.
This 2PC Threaded Ball Valve 304 Stainless Steel Full Port 1000WOG is widely used in water treatment, chemical processing, petroleum, natural gas, steam systems, food processing and other industrial pipelines for shut-off and flow control. It is not recommended for throttling.
Wenzhou Joepai Valve Co., Ltd. was established in 2020, with its predecessor Jingyue Valve Factory founded in 2003. We have more than ten years of experience in stainless steel ball valves, fire hydrants, booster valves and industrial flow control solutions. Our products are produced in accordance with international standards API, ANSI, JIS, ISO, DIN, GOST, BS and domestic standards JB, GB.
Located in Longwan District, Wenzhou, Zhejiang Province, near the airport with convenient transportation, the company integrates design, development, manufacturing and sales as a professional industrial flow control solution enterprise. We also focus on providing customized services to meet the unique needs of global customers for valve supply.
Core production equipment: more than 20 high-precision CNC lathes, 1 multifunctional machining center, 2 special pressure test equipment. Testing laboratory: spectral quantitative analyzer, high-precision roundness tester, hardness tester, torque wrench, valve fatigue tester.
JOEPAI has achieved ISO 9001 certification, with EU CE certification for core products, Korean KC certification for ball valves, and Australian AS 2419.2-2009 certification for fire hydrant products. The Dual Booster system is designed to comply with AS 2419.3 technical specifications. Please contact us for the specific certificate applicable to this model and order quantity.
Unlike standard ball valves, the stem uses a fixed pin running in a spiral groove to lift the ball off the seat before rotating. This prevents the ball from scraping the seat surface, greatly reducing seal wear and extending cycle life.
Standard options include BSP(G), NPT and BSPT. Please confirm your required thread type before ordering, and we will make sure the valve matches your pipeline specification.
Yes. With PTFE / RPTFE seat, the standard temperature range is -25°C to +180°C. For higher temperature requirements, please contact us to discuss alternative seat materials.
Yes. This 2PC threaded ball valve supports optional actuator mounting. Please provide your required actuator type (pneumatic or electric) and working parameters, and our team will confirm the mounting details.
Body: SS304 or SS316. Ball and stem: solid stainless steel. Seat: PTFE / RPTFE. Special materials such as SS304L, SS316L or Duplex stainless steel 2205/2507 can be customized on request.
Yes. We support sample orders for quality evaluation. Please contact us with your required size, thread standard, pressure rating and medium, and our team will arrange the sample and delivery details quickly.
We offer flexible MOQ for trial orders and long-term cooperation. Normal delivery time is about 15–30 days after order confirmation, depending on quantity and customization requirements.
We provide a 12-month warranty from the date of delivery. For quality issues not caused by human factors, we will repair or replace the product free of charge. Our after-sales team responds quickly to solve any technical or quality concerns.
Tell us your valve size, thread standard, pressure rating, medium and quantity. Our team will reply with price, lead time and technical confirmation within 24 hours on working days.
