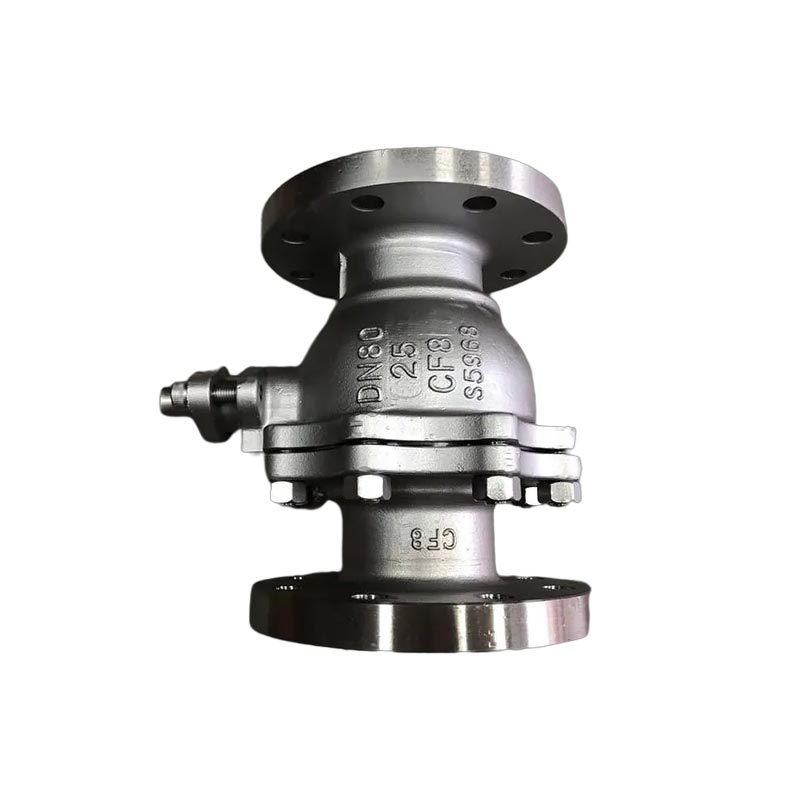

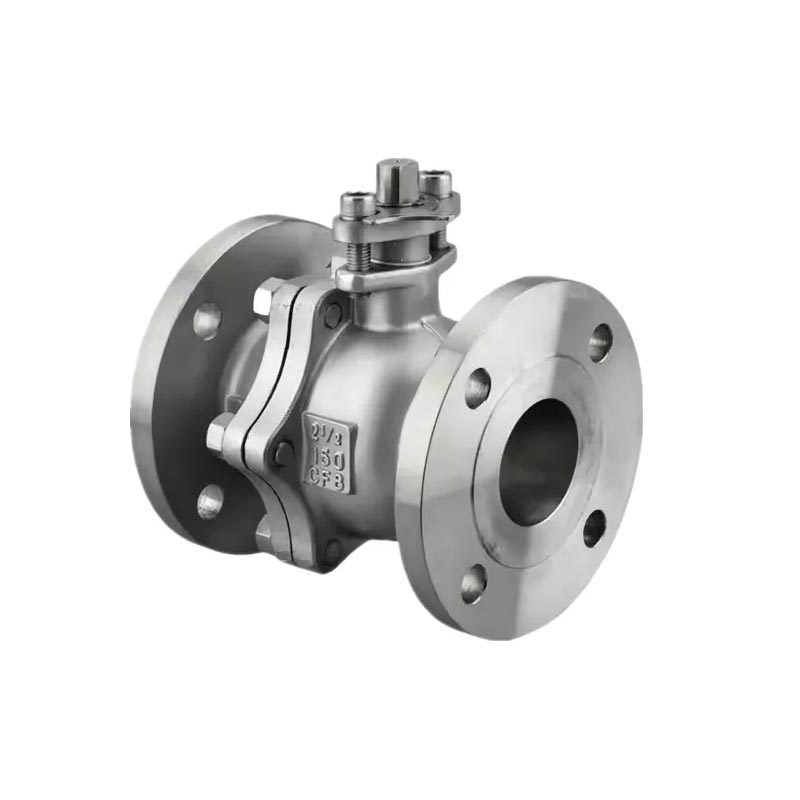

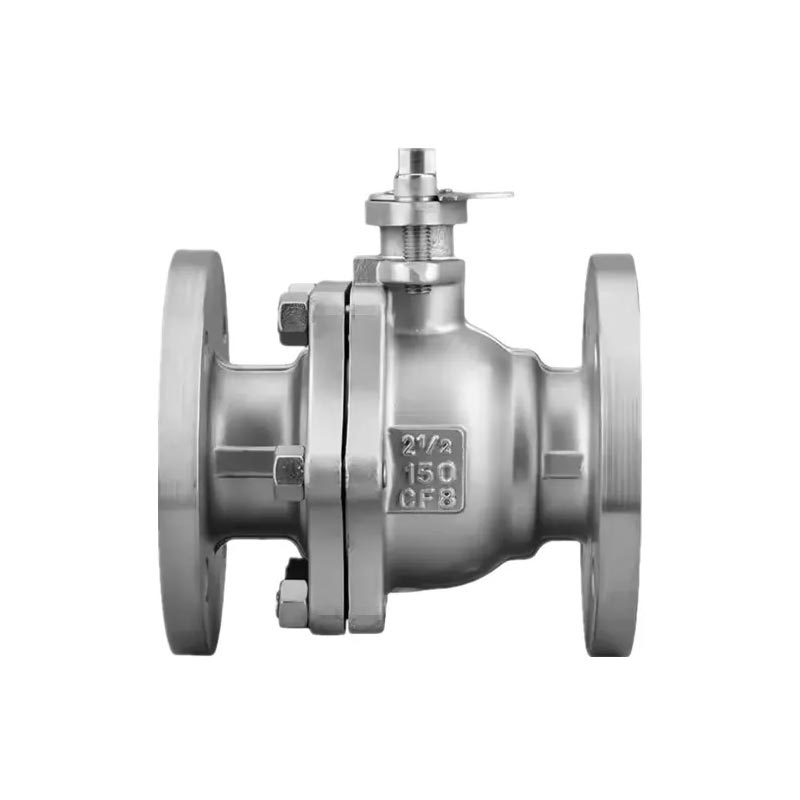

JOEPAI high quality ANSI Standard Stainless Steel Ball Valves, accurately benchmarking the international standard system, combines advantages such as corrosion resistance, high sealing, and high adaptability, and is a reliable brand for efficient fluid control in global industrial systems.
DESIGN: ANSI 16.34
END FLANGE:ASME B16.5
FACE-TO-FACE DIMENSIONS: ASME B16.10
INSPECTION & TEST: API 598
SIZE:1/2"~10",PRESSURE:150LB~300LB
FULL PORT,LEVER OPERATED
BLOWOUT-PROOF STEM DESIGN
INVESTMENT CASTING
MATERIAL: CARBON STEEL WCB/DIN1.0619
STAINLESS STEEL 304/1.4308
STAINLESS STEEL 316/1.4408
SUITABLE:WATER,OIL,GAS
| 1 | Body | WCB/ CF8/ CF8M | 9 | Thrust Pads | WCB/ CF8/ CF8M |
| 2 | Seat | PTFE | 10 | Packing | WCB/ CF8/ CF8M |
| 3 | Ball | SS304/ SS316 | 11 | Stem | SS304/ SS316 |
| 4 | Bolt | SS304/ SS316 | 12 | Gland | SS304/ SS316 |
| 5 | Spring Washer | SS304/ SS316 | 13 | Nut | SS304/ SS316 |
| 6 | Nut | SS304/ SS316 | 14 | Spring Washer | SS304/ SS316 |
| 7 | Cap | WCB/ CF8/ CF8M | 15 | Lever | SS |
| 8 | Gasket | WCB/ CF8/ CF8M |

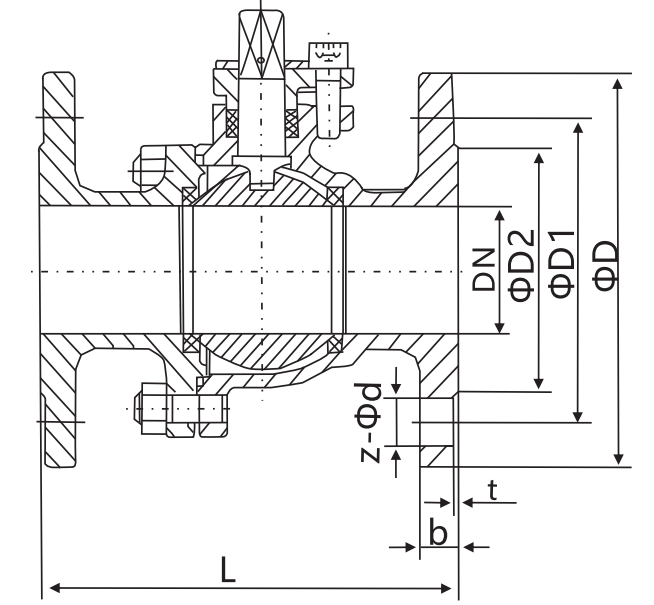

| NPS | DN | L | D | D1 | D2 | b | t | z-Φd |
| 1/2" | 15 | 108 | 90 | 60.3 | 34.9 | 11.5 | 1.6 | 4-Φ16 |
| 3/4" | 20 | 117 | 100 | 69.9 | 42.9 | 13 | 1.6 | 4-Φ16 |
| 1" | 25 | 127 | 110 | 79.4 | 50.8 | 14.5 | 1.6 | 4-Φ16 |
| 11/4" | 32 | 140 | 115 | 88.9 | 63.5 | 16 | 1.6 | 4-Φ16 |
| 11/2" | 40 | 165 | 125 | 98.4 | 73 | 17.5 | 1.6 | 4-Φ16 |
| 2" | 50 | 178 | 150 | 120.7 | 92.1 | 19.5 | 1.6 | 4-Φ19 |
| 21/2" | 65 | 190 | 180 | 139.7 | 104.8 | 22.5 | 1.6 | 4-Φ19 |
| 3" | 80 | 203 | 190 | 152.4 | 127 | 24 | 1.6 | 4-Φ19 |
| 4" | 100 | 229 | 230 | 190.5 | 157.2 | 24 | 1.6 | 4-Φ19 |
| 5" | 125 | 356 | 255 | 215.9 | 185.7 | 24 | 1.6 | 4-Φ22 |
| 6" | 150 | 394 | 280 | 241.3 | 215.9 | 25.5 | 1.6 | 4-Φ22 |
| 8" | 200 | 457 | 345 | 298.5 | 269.9 | 29 | 1.6 | 4-Φ22 |
| 10" | 250 | 533 | 405 | 362 | 323.8 | 30.5 | 1.6 | 4-Φ25 |
| 12" | 300 | 610 | 485 | 431.8 | 381 | 32 | 1.6 | 4-Φ25 |
| 14" | 350 | 686 | 535 | 476.3 | 412.8 | 35 | 1.6 | 4-Φ29 |
| 16" | 400 | 762 | 595 | 539.8 | 469.9 | 37 | 1.6 | 4-Φ29 |
| NPS | DN | L | D | D1 | D2 | b | t | z-Φd |
| 1/2" | 15 | 140 | 95 | 66.7 | 34.9 | 14.5 | 1.6 | 4-Φ16 |
| 3/4" | 20 | 152 | 115 | 82.6 | 42.9 | 16 | 1.6 | 4-Φ19 |
| 1" | 25 | 165 | 125 | 88.9 | 50.8 | 17.5 | 1.6 | 4-Φ19 |
| 11/4" | 32 | 178 | 135 | 98.4 | 63.5 | 19.5 | 1.6 | 4-Φ19 |
| 11/2" | 40 | 190 | 155 | 114.3 | 73 | 21 | 1.6 | 4-Φ22 |
| 2" | 50 | 216 | 165 | 127 | 92.1 | 22.5 | 1.6 | 8-Φ19 |
| 21/2" | 65 | 241 | 190 | 149.2 | 104.8 | 25.5 | 1.6 | 8-Φ22 |
| 3" | 80 | 282 | 210 | 168.3 | 127 | 29 | 1.6 | 8-Φ22 |
| 4" | 100 | 305 | 255 | 200 | 157.2 | 32 | 1.6 | 8-Φ22 |
| 5" | 125 | 381 | 280 | 235 | 185.7 | 35 | 1.6 | 8-Φ22 |
| 6" | 150 | 403 | 320 | 269.9 | 215.9 | 37 | 1.6 | 12-Φ22 |
| 8" | 200 | 502 | 380 | 330.2 | 269.9 | 41.5 | 1.6 | 12-Φ25 |
| 10" | 250 | 568 | 445 | 387.4 | 323.8 | 48 | 1.6 | 16-Φ29 |
| 12" | 300 | 648 | 520 | 450.8 | 381 | 51.0 | 1.6 | 16-Φ32 |
| 14" | 350 | 762 | 585 | 514.4 | 412.8 | 54.0 | 1.6 | 20-Φ32 |
| 16" | 400 | 838 | 650 | 571.5 | 469.9 | 57.5 | 1.6 | 20-Φ35 |
As an export-oriented high-tech enterprise, JOEPAI strictly follows international standardized manufacturing processes, adopts CNC numerical control centers and multi-stage leakage testing to ensure that our ANSI Standard Stainless Steel Ball Valves meet ANSI/API standards. All products can provide material reports (MTC 3.1) and third-party testing certifications (CE, ISO, API 607 fire protection), providing stable and reliable valve control guarantees for global customers.
