JOEPAI Api 600 ANSI Flanged Gear Operated Cast Steel Gate Valve made in China factory adopts casted valve body, high pressure resistance, high sealing performance and high durability, widely used in industries such as petroleum, natural gas, chemical, and power. Welcome to contact us for more information or technical support!
Bolted Bonnet or Pressure Seal Bonnet
Flexible Wedge
Full Port
Outside Screw and Yoke (OS&Y), Rising Stem
Extended Bonnet For Cryogenic Services
Locking Device Optional
By pass on Request
Design And Manufacture: API 600, API 6D, BS1414,Etc
Face To Face (End To End): ANSI B16.10, API 6D,Etc
Flanged Connection: ANSI B16.5, ASME B16.47 Etc
Butt Welded End: ANSI B16.25,Etc
Test And Inspection: API 598, API 6D,Etc
Model:Z40H
Size: 2" up to 60"(DN50 up to DN1500)
Pressure: ASME 150#,300#,600#,900#,1500#, 2500#
Body Material: Stainless Steel, Duplex Stainless Steel, Super Duplex Stainless Steel,Carbon Steel, Low Temperature Carbon Steel, Nickel Alloys, Nickel Aluminum Bronze, Hastelloy, Inconel Etc.
Trim Material: 13%Cr,SS304,SS316, SS304L, SS316L, F11, F22 Etc
End Connection:Flanged RF/ RTJ/ FM/ FF , Butt-welding(BW)
Operation: Handwheel, gear worm ,Electric operated

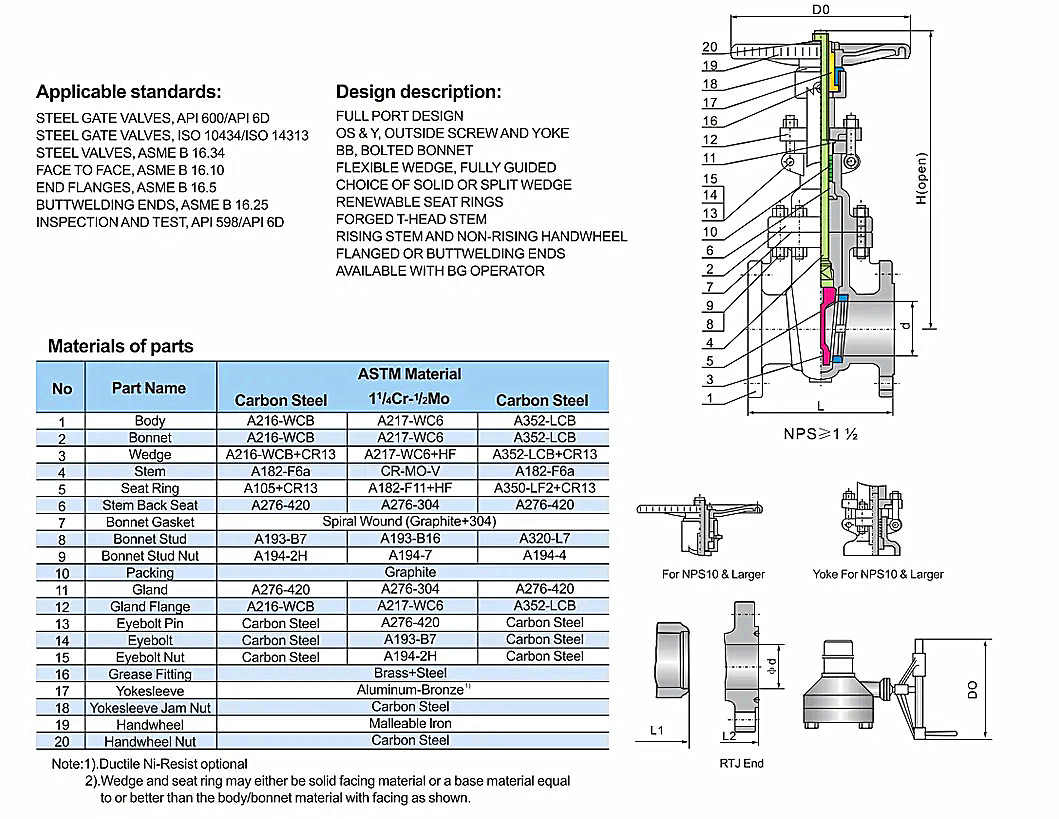

| CLASS150 | |||||||||||||
| size(in) | 2" | 2-1/2" | 3" | 4" | 6" | 8" | 10" | 12" | 14" | 16" | 18" | 20" | 24" |
| L,RF(mm) | 178 | 191 | 203 | 229 | 267 | 292 | 330 | 356 | 381 | 406 | 432 | 457 | 508 |
| L1-BW(mm) | 216 | 241 | 283 | 305 | 403 | 419 | 457 | 502 | 572 | 610 | 660 | 711 | 813 |
| L2-RTJ(mm) | 191 | 203 | 216 | 241 | 279 | 305 | 343 | 368 | 394 | 419 | 445 | 470 | 521 |
| H(mm) | 400 | 490 | 510 | 585 | 795 | 1015 | 1230 | 1465 | 1755 | 2030 | 2210 | 2510 | 2880 |
| K(mm) | 200 | 200 | 250 | 300 | 350 | 350 | 400 | 450 | 500 | 500 | 600 | 750 | 750 |
| CLASS300 | |||||||||||||
| size(in) | 2" | 2-1/2" | 3" | 4" | 6" | 8" | 10" | 12" | 14" | 16" | 18" | 20" | 24" |
| L,RF(mm) | 216 | 241 | 283 | 305 | 403 | 419 | 457 | 502 | 762 | 838 | 914 | 991 | 1143 |
| L1-BW(mm) | 216 | 241 | 283 | 305 | 403 | 419 | 457 | 502 | 762 | 838 | 914 | 991 | 1143 |
| L2-RTJ(mm) | 232 | 257 | 298 | 321 | 419 | 435 | 473 | 518 | 778 | 854 | 930 | 1010 | 1165 |
| H(mm) | 470 | 525 | 533 | 610 | 845 | 1050 | 1295 | 1600 | 1830 | 2035 | 2195 | 2470 | 2900 |
| K(mm) | 200 | 200 | 250 | 300 | 350 | 350 | 400 | 450 | 500 | 500 | 600 | 750 | 750 |
| CLASS600 | |||||||||||||
| size(in) | 2" | 2-1/2" | 3" | 4" | 6" | 8" | 10" | 12" | 14" | 16" | 18" | 20" | 24" |
| L,RF(mm) | 292 | 330 | 356 | 432 | 559 | 660 | 787 | 838 | 889 | 991 | 1092 | 1194 | 1397 |
| L1-BW(mm) | 292 | 330 | 356 | 432 | 559 | 660 | 787 | 838 | 889 | 991 | 1092 | 1194 | 1397 |
| L2-RTJ(mm) | 295 | 333 | 359 | 435 | 562 | 664 | 791 | 841 | 892 | 994 | 1095 | 1200 | 1407 |
| H(mm) | 495 | 550 | 615 | 735 | 1005 | 1245 | 1480 | 1730 | 1915 | 2050 | 2260 | 2620 | 2900 |
| K(mm) | 200 | 250 | 300 | 350 | 450 | 500 | 600 | 750 | 850 | 850 | 960 | 960 | 1000 |
| CLASS900 | |||||||||||||
| size(in) | 2" | 2-1/2" | 3" | 4" | 6" | 8" | 10" | 12" | 14" | 16" | 18" | 20" | 24" |
| L,RF(mm) | 368 | 419 | 381 | 457 | 610 | 737 | 838 | 965 | 1029 | 1130 | 1219 | 1321 | 1549 |
| L1-BW(mm) | 368 | 419 | 381 | 457 | 610 | 737 | 838 | 965 | 1029 | 1130 | 1219 | 1321 | 1549 |
| L2-RTJ(mm) | 371 | 422 | 384 | 460 | 613 | 740 | 841 | 968 | 1038 | 1140 | 1232 | 1334 | 1568 |
| H(mm) | 590 | 700 | 740 | 870 | 1120 | 1390 | 1592 | 1765 | 2025 | 2175 | 2510 | 2750 | 3240 |
| K(mm) | 250 | 300 | 350 | 450 | 500 | 600 | 750 | 850 | 850 | 960 | 960 | 1000 |
1000 |
