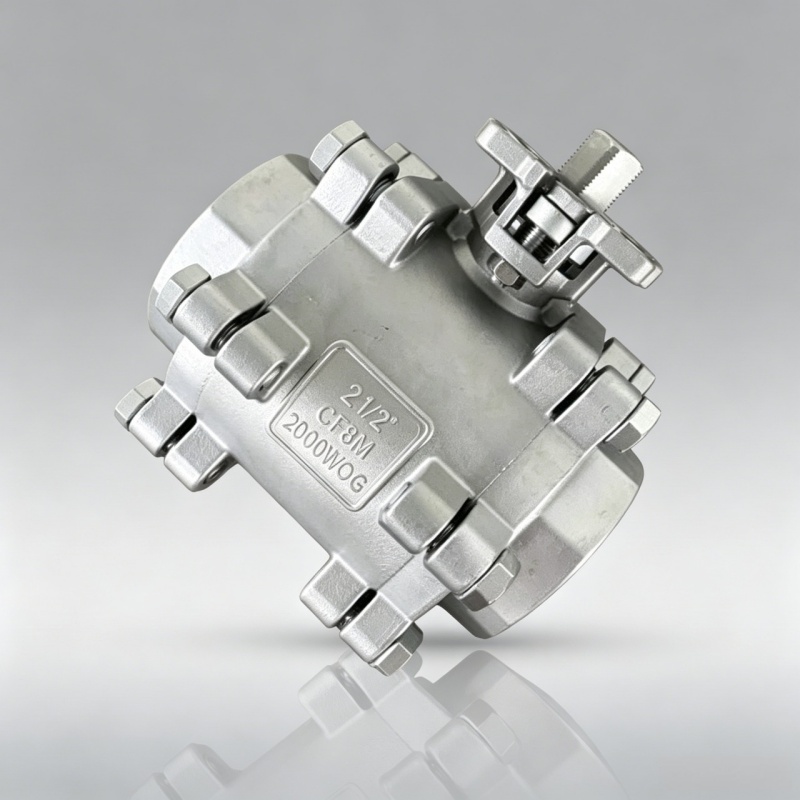

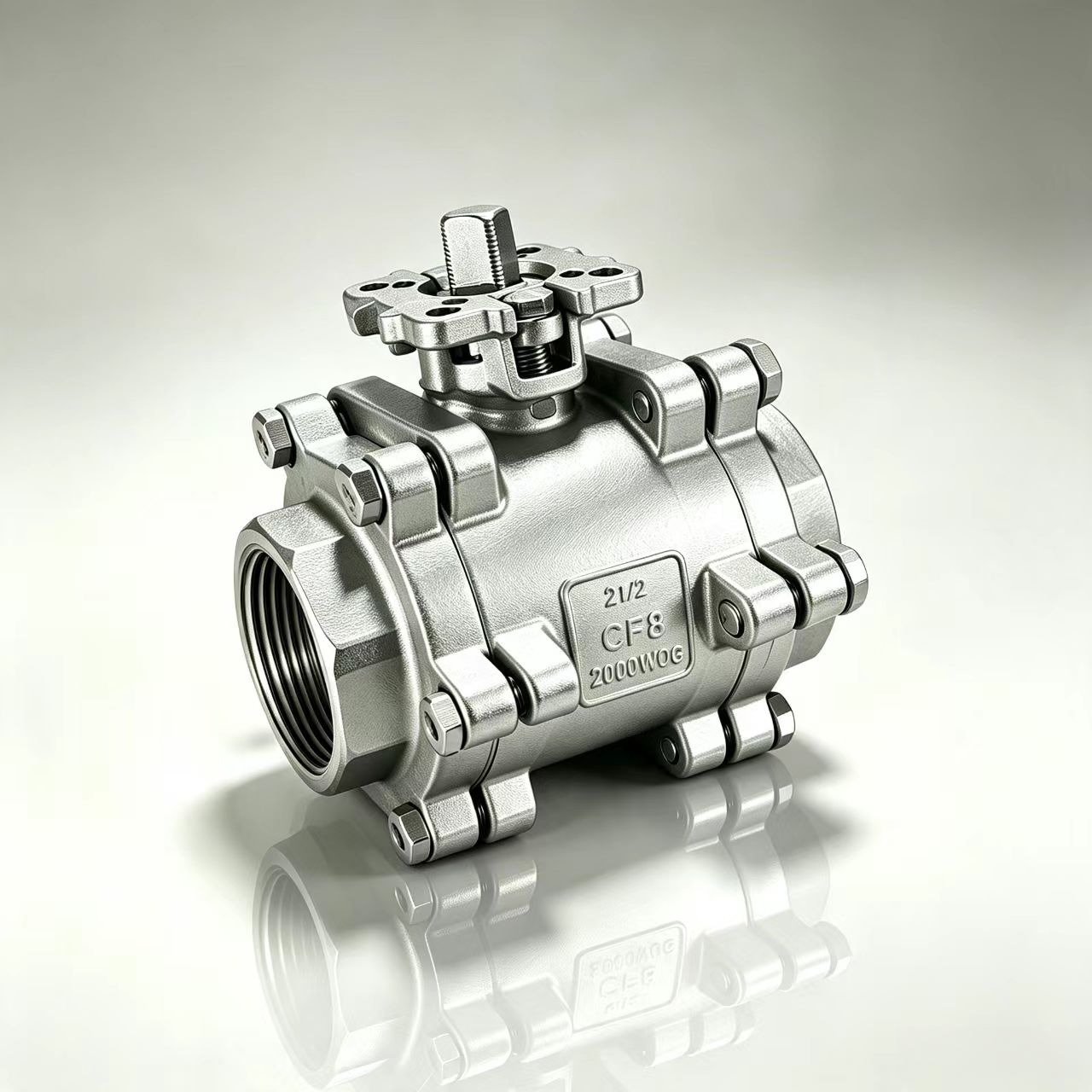

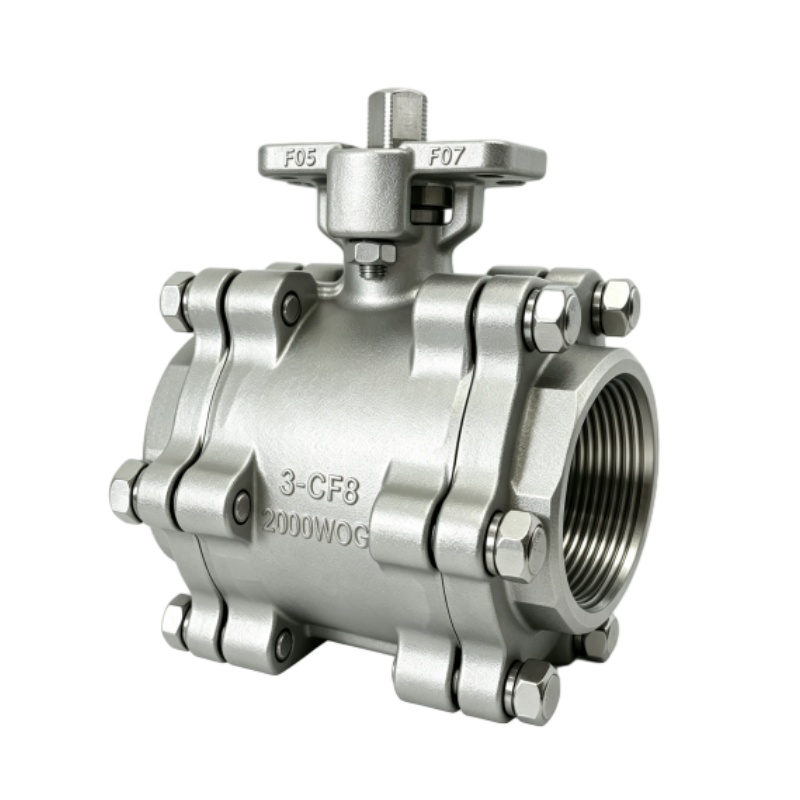

The JOEPAI Heavy Duty Full Wrap Lug 2000WOG 3-Piece Ball Valve is a high-performance industrial valve engineered for demanding high-pressure applications. This heavy-duty ball valve features a 3-piece body construction with a 2000 PSI WOG pressure rating, making the Full Wrap Lug 2000WOG 3-Piece Ball Valve ideal for oil and gas, chemical processing, and hydraulic systems.
This 2000WOG ball valve incorporates a blow-out proof stem with SS304 or SS316 body and ball. A stainless steel pad-lockable handle ensures secure operation, while the ISO 5211 mounting pad supports electric or pneumatic actuator integration. The 3-piece ball valve design enables easy in-line maintenance without full pipeline removal.
The Heavy Duty Full Wrap Lug 2000WOG 3-Piece Ball Valve features a valve body wall thickness increased by over 40% compared to standard 3-piece ball valves. This heavy-duty ball valve's enlarged central body creates a full pressure-bearing cavity that effectively counteracts expansion caused by pressurized media during operation.
Both end threaded sections on this 2000WOG ball valve incorporate thicker outer walls, with the wall thickness at the thread root doubled to eliminate risks of thread expansion and cracking under high pressure.

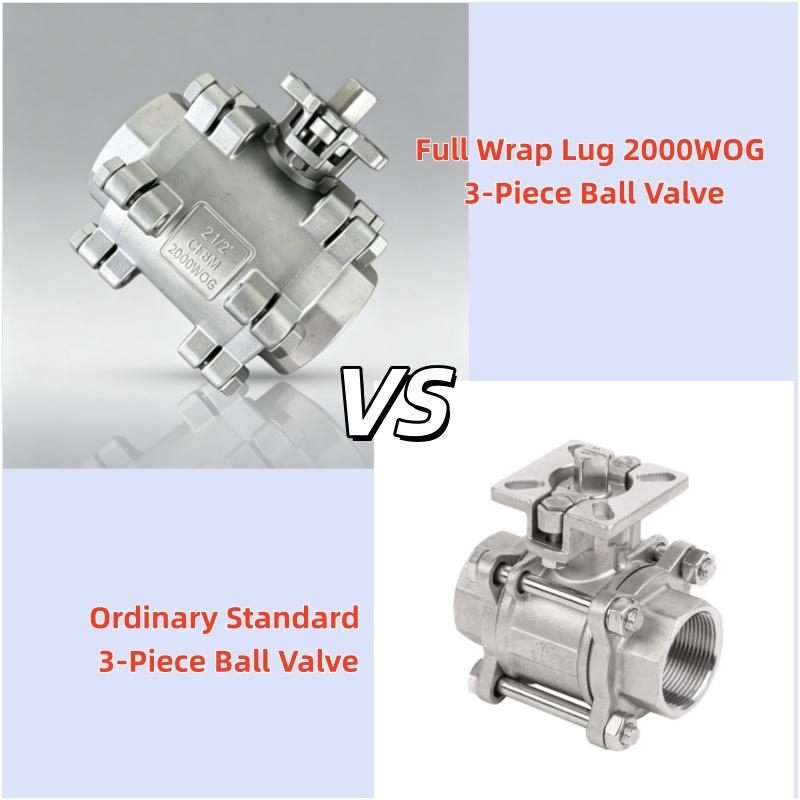

Ordinary 3-piece ball valves typically use only 4 thin bolts on the top and bottom. Narrow connecting lugs on a standard 3-piece ball valve are prone to segment separation under separating force generated by high pressure, resulting in medium leakage via gaskets. This heavy-duty ball valve uses 12 reinforced hex bolts for full clamping around all sides, evenly distributing separating tension.
Even under instantaneous impact pressure, the three valve segments on this 2000WOG ball valve stay tightly locked to avoid gasket leakage.
The Full Wrap Lug 2000WOG 3-Piece Ball Valve is ideal for high-pressure nitrogen, hydrogen, compressed air, and oxygen pipelines, as well as shut-off valves at outlets of air compressors, boosters, and gas storage tanks. Frequent valve opening and closing generates severe air hammer impact. Standard 4-bolt valves are vulnerable to segment separation, but the 2000WOG ball valve's balanced 12-bolt structure offsets instantaneous separating tension. Typical applications include nitrogen and oxygen generation equipment, high-pressure gas circuits for laser cutting, and branch pipelines of gas refueling stations.
Oilfield sampling pipelines, small oil and gas transportation branches, and high-pressure branches for LNG vaporization demand the Full Wrap Lug 2000WOG 3-Piece Ball Valve's outstanding fatigue resistance. This heavy-duty ball valve withstands unstable pulsating pressure while preventing bolt loosening and valve body deformation during long-term operation.
Transport pipelines for organic solvents, high-pressure fuel gas, and light oil products require enhanced safety. The Full Wrap Lug 2000WOG 3-Piece Ball Valve delivers superior explosion safety with no weak stress points, meeting strict explosion-proof specifications for industrial plants.
If pipelines maintain constant pressure with rare switching operations and no water hammer or air hammer shock, standard 4-bolt 2000WOG ball valves are sufficient with better cost performance. Applications include pipelines carrying stable high-temperature clean water, static chemical liquid, central air conditioning refrigerant, and regular boiler circulating water.
The Heavy Duty Full Wrap Lug 2000WOG 3-Piece Ball Valve features an Encapsulated Bolts design that sets this heavy-duty ball valve apart from conventional 3-piece ball valves. While standard 3-piece valves use exposed through-bolts passing through the body and end caps, this 2000WOG ball valve incorporates thick cast bore walls and reinforcing sleeves that encapsulate and support the bolts within the valve casting.
This Full Wrap Lug 2000WOG 3-Piece Ball Valve's encapsulated bolt structure better disperses pipeline tensile and torsional stresses. The 3-piece ball valve effectively avoids micro-misalignment of the middle body segment under high pressure, significantly reducing the probability of transverse gasket leakage.
This heavy-duty ball valve's design ensures long-term reliability in the most challenging operating conditions. The encapsulated structure protects the bolt holes from fracture and keeps all three segments aligned under continuous pressure and thermal cycling.

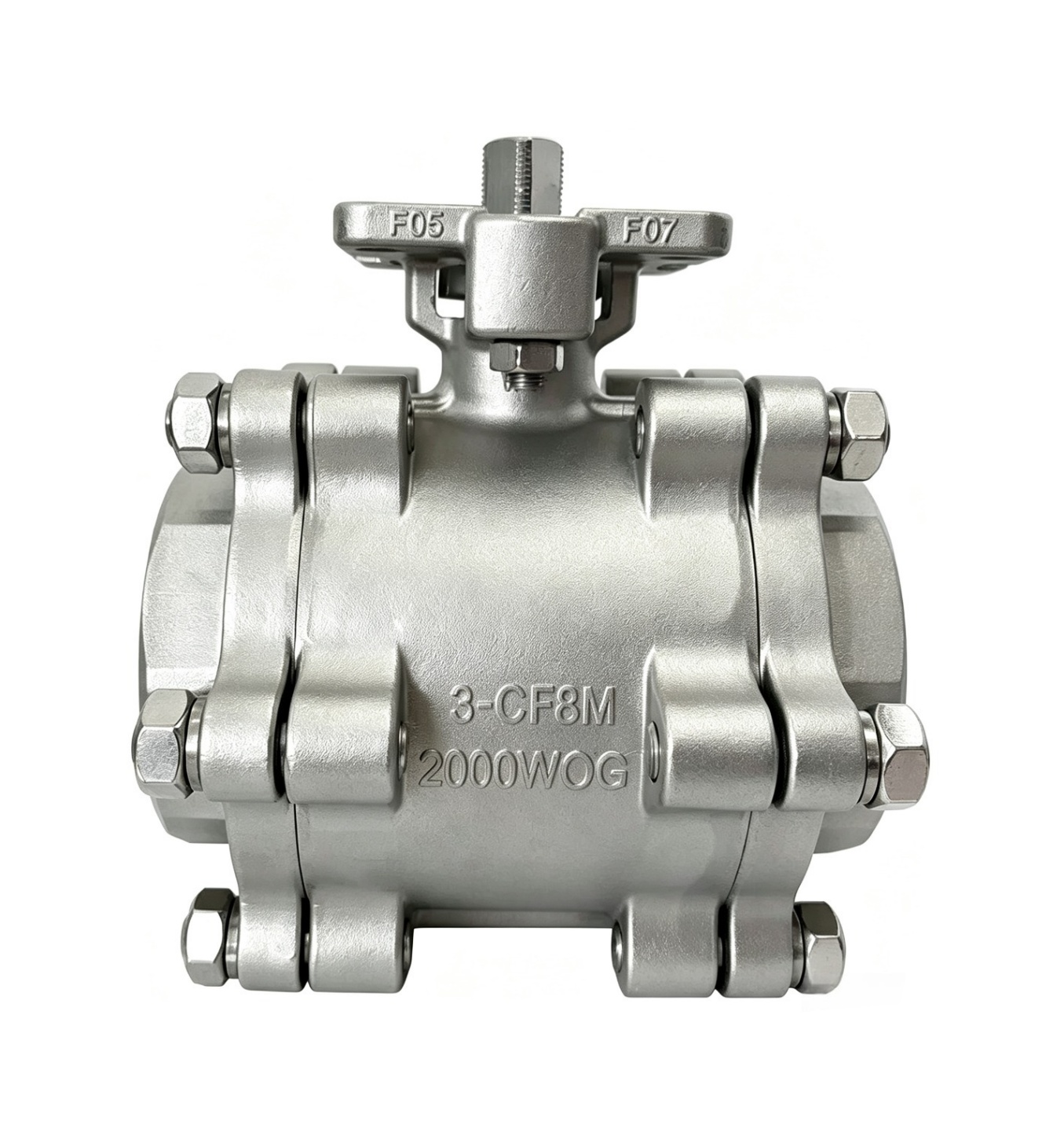

The Full Wrap Lug 2000WOG 3-Piece Ball Valve, particularly in CF8M (316 stainless steel) construction, delivers exceptional resistance to pitting and chemical attack. Combined with the 2000WOG high-pressure rating and anti-bolt-deformation design, this heavy-duty ball valve is widely used in:
The 3-piece ball valve handles high-pressure wellhead and pipeline applications.
The 2000WOG ball valve ensures pure, leak-free flow.
High-pressure pump outlets — this heavy-duty ball valve resists corrosion in saltwater environments.
The Full Wrap Lug 2000WOG 3-Piece Ball Valve withstands extreme pressures in hydraulic systems.
A: 2000WOG indicates 2000 PSI pressure rating for Water, Oil, and Gas service. The Full Wrap Lug 2000WOG 3-Piece Ball Valve is engineered for these high-pressure applications.
A: A 3-piece ball valve has three sections bolted together, allowing easy maintenance without removing the entire valve from the pipeline. The 2000WOG 3-piece ball valve offers superior serviceability.
A: The 12-bolt design provides uniform clamping around the entire circumference, preventing segment separation under high pressure and impact — a critical advantage over standard 4-bolt 3-piece ball valves.
A: This 3-piece ball valve is available in WCB, SS304, and SS316 (CF8M), with PTFE or RPTFE seats for various media compatibility.
A: Yes. The Heavy Duty Full Wrap Lug 2000WOG 3-Piece Ball Valve features an ISO 5211 mounting pad for direct electric or pneumatic actuator installation.
A: The 2000WOG ball valve operates from -40°F to 400°F with PTFE seats.
A: Fire-safe design per API 607 is available as an option for this heavy-duty ball valve.
A: The 3-piece ball valve offers NPT, BSP, RC threaded, and SW/BW welded ends.
