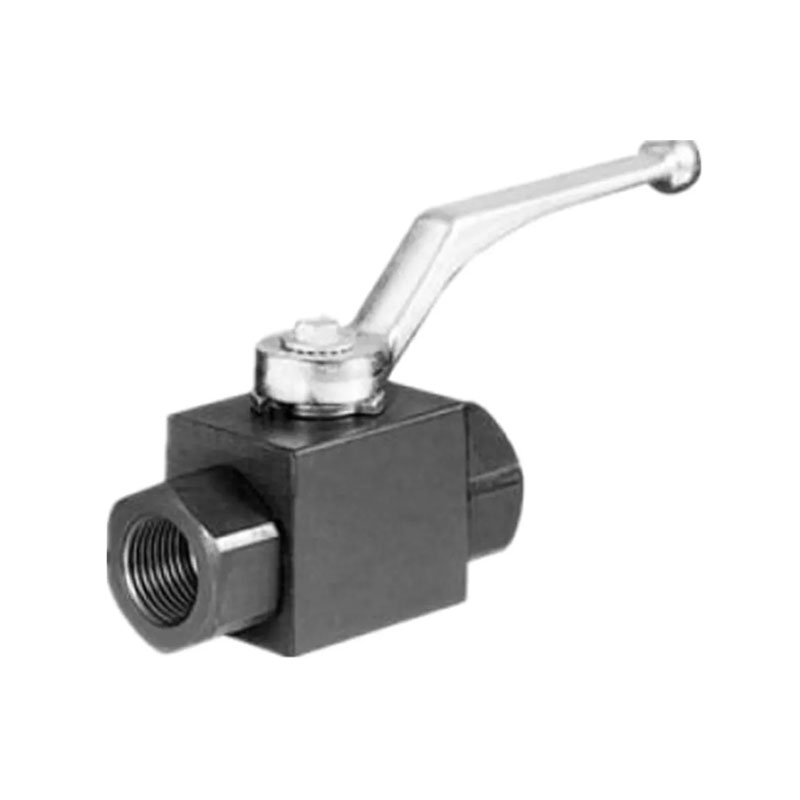

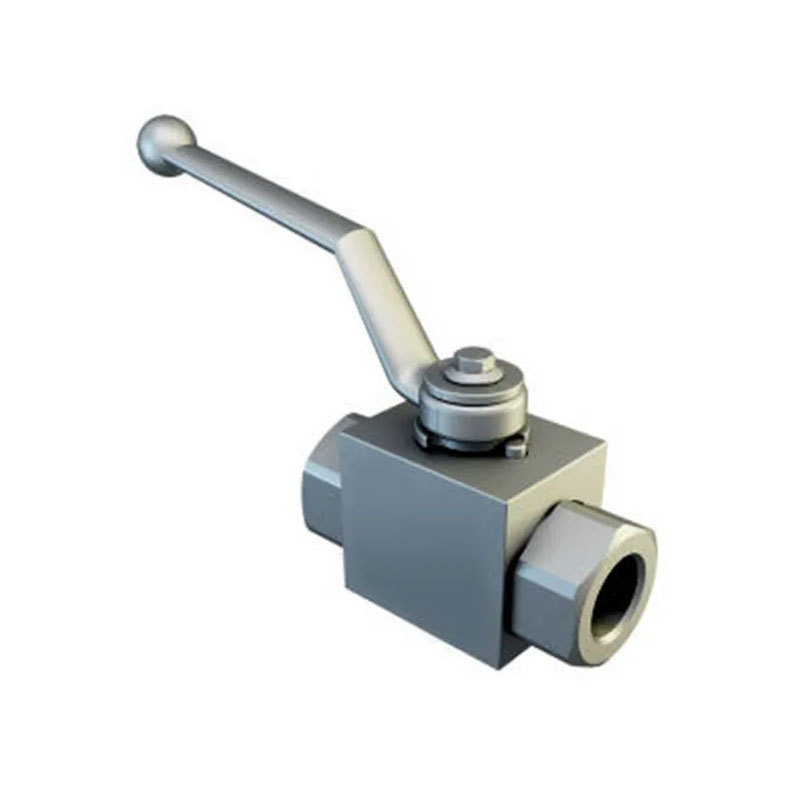

The JOEPAI KHB KHM High Pressure Hydraulic Ball Valve is manufactured with high-quality materials, providing excellent performance and reliability for high-pressure applications in various industries, including oil and gas, hydraulic systems, and power generation.
Explosion proof valve stem
Ball valve body anti-static device
Precision cast valve body
There is a pressure balance hole in the ball groove
ISO 5211 direct installation pad for easy automation
Can provide locking device
YJZQ High Pressure Forged Steel Hydraulic Ball Valve (F/F)
PIPE THREAD IN ACCORDANCE: NPT, BSPT, BSPP
TEMPERATURE RANGE: -20ºC~150ºC
SUITABLE MEDIUM: WATER, OIL, AIR
NOMINAL PRESSURE: 1.6~31.5MPA
MATERIAL:
CARBON STEEL/SCPH2/A105
STAINLESS STEEL/304/SCS13
STAINLESS STEEL/316/SCS14
| 1 | Body | A105 | 5 | Seat | PTFE |
| 2 | Ball | SS304/SS316 | 6 | Joint Packing | PTFE |
| 3 | Stem | SS304/SS316 | 7 | Cap | A105 |
| 4 | O-Ring | NBR | 8 | Handle | Iron |
| DN | G | M | L | L1 | L2 | SW | S | H | W |
| 8 | 1/4" | M14x1.5 | 72 | 40 | 13 | 9 | 27 | 70 | 120 |
| 10 | 3/8" | M18x1.5 | 78 | 44 | 14 | 9 | 30 | 70 | 140 |
| 15 | 1/2" | M22x1.5 | 86 | 48 | 16 | 9 | 36 | 78 | 140 |
| 20 | 3/4" | M27x2 | 108 | 60 | 18 | 11 | 40 | 90 | 160 |
| 25 | 1" | M33x2 | 116 | 64 | 20 | 11 | 50 | 100 | 185 |
| 32 | 11/4" | M42x2 | 136 | 78 | 22 | 14 | 60 | 120 | 185 |
| 40 | 11/2" | M48x2 | 148 | 84 | 24 | 17 | 74 | 140 | 280 |
| 50 | 2" | M64x2 | 180 | 108 | 30 | 17 | 82 | 150 | 280 |
