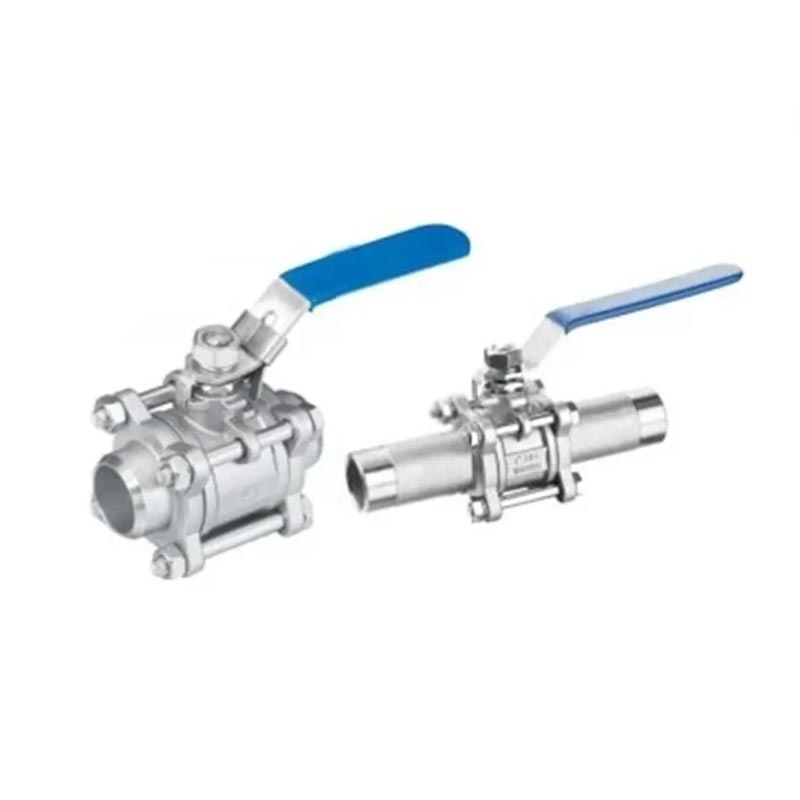

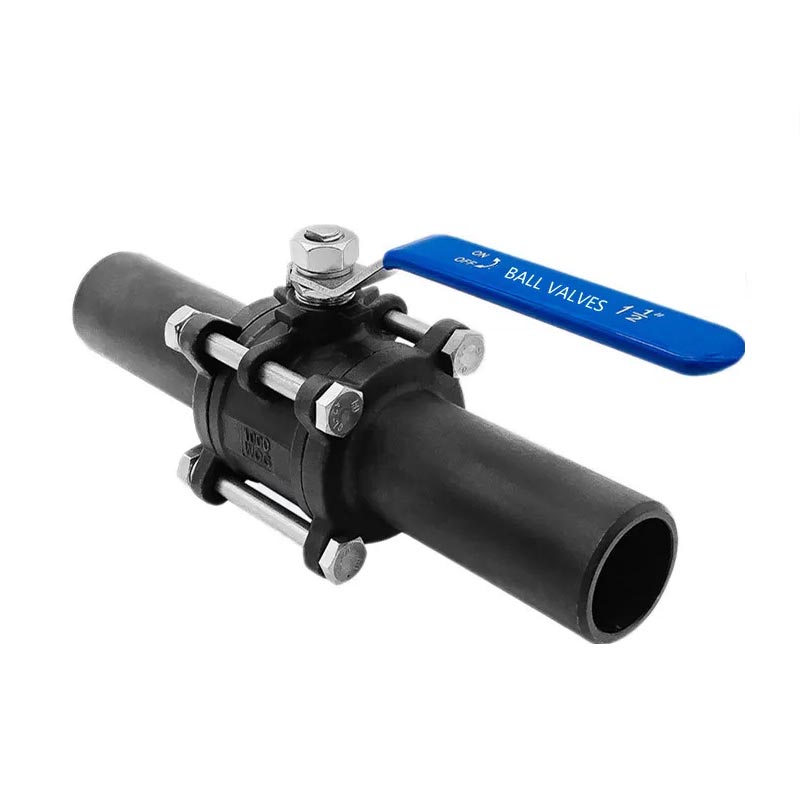

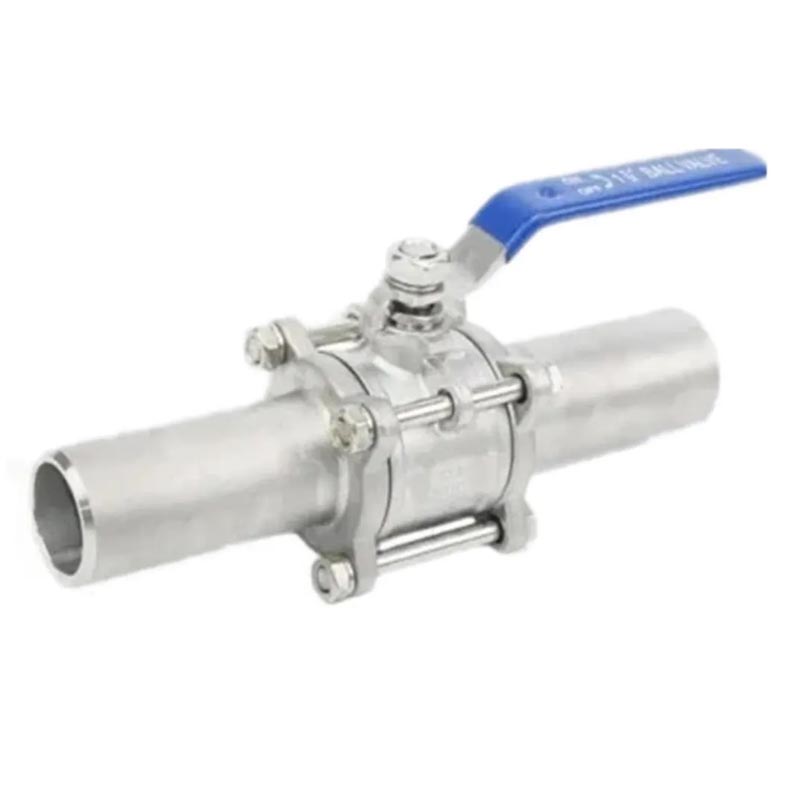

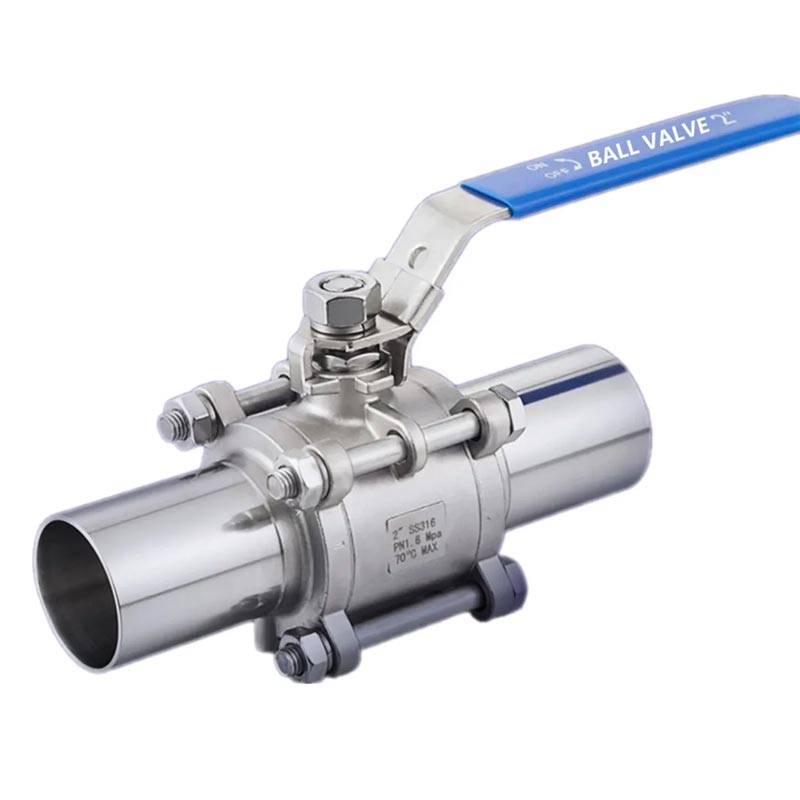

Pn63 Stainless Steel 3PC Ball Valve weld extended SS304 1000WOG

The Pn63 Stainless Steel 3PC Ball Valve weld extended SS304 1000WOG is designed specifically for high-pressure applications, with excellent performance, durability, and versatility. These valves are suitable for a range of industries, including oil and gas, chemical processing, food and beverage, and HVAC systems. Choose JOEPAI to obtain reliable and high quality valves to meet your requirements

JOEPAI high quality Pn63 Stainless Steel 3PC Ball Valve weld extended SS304 1000WOG are made of high quality stainless steel, with excellent performance and can withstand harsh industrial conditions. These valves come in various configurations to meet different application requirements, offering various sizes and options that can be seamlessly integrated into your piping system.

Product advantages:

1. Pn63 Stainless Steel 3PC Ball Valve weld extended has excellent sealing performance and is also used in vacuum systems.
2. Stainless Steel Pn63 Extended Welded 3PC Ball Valve is easy to operate, with quick opening and closing, and convenient for remote control.
3. The three piece ball valve has a simple structure, small volume, light weight, and low flow resistance.
4. The sealing ring of a three piece ball valve is usually movable, easy to disassemble and maintain.

Differences between various piece ball valves

Differentiate structurally:

One piece ball valve is an integrated valve consisting of a ball, PTFE ring, and locking nut. The diameter of the ball is slightly smaller than the diameter of the pipeline, similar to a wide ball valve.
A two-piece ball valve consists of two parts, with better sealing effect than a one-piece ball valve. The diameter of the ball is the same as the diameter of the pipeline, making it easier to disassemble than a one-piece ball valve.
A three piece ball valve consists of two side valve covers and a middle valve body. The difference between a three piece ball valve and a two-piece ball valve is that it is easy to disassemble and maintain.

Differentiate from pressure:

The pressure resistance of the three piece ball valve is much higher than that of the one piece and two-piece ball valves. The main body of the three piece ball valve is fixed by four outer bolts, which play a good fastening role. The precision cast valve body can achieve a pressure of 1000psi ≈ 6.9MPa. To achieve higher pressures, forged valve bodies are required.

Stainless Steel Pn63 1PC 2PC 3PC Ball Valve

Main Parts and Materials

1 Cap CF8M/CF8/WCB 9 Thrust Washer PTFE
2 Bolt Washer SS304/SS/SS316 10 Packing PTFE
3 Hex Nut SS304/SS/SS316 11 Gland SS304/SS
4 Bolt SS304/SS/SS316 12 Handle SS304/SS
5 Body CF8M/CF8/WCB 13 Spring Washer SS304/SS
6 Seat PTFE 14 Stem Nut SS304/SS
7 Ball SS316/SS304/SS 15 Plastic Cover Plastic
8 Stem SS316/SS304/SS

Main Dimensions

NPS DN d D L W H
1/4" 8 10 18 225 90 55
3/8" 10 10 18 225 90 55
1/2" 15 15 22 225 90 60
3/4" 20 20 28 225 130 65
1" 24 24 34 245 145 69
11/4" 32 32 44 255 170 82
11/2" 40 38 51 260 170 90
2" 50 50 61 294 180 102
21/2" 65 65 76 334 250 130
3" 80 76 92 354 250 130
4" 100 100 115 346 280 150

Stainless Steel Pn63 1PC 2PC 3PC Ball ValveStainless Steel Pn63 1PC 2PC 3PC Ball ValveStainless Steel Pn63 1PC 2PC 3PC Ball Valve
