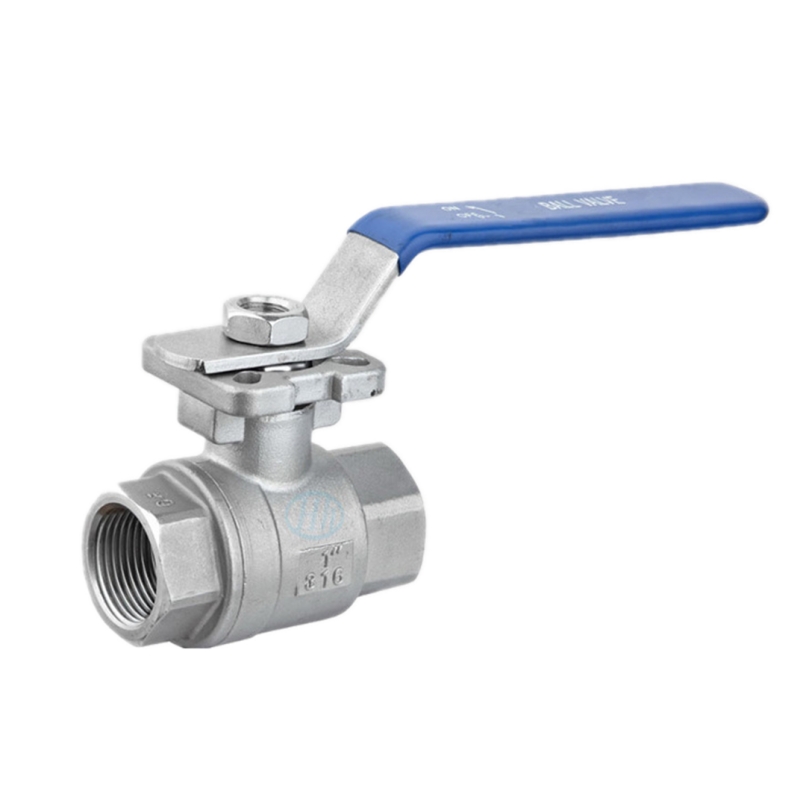

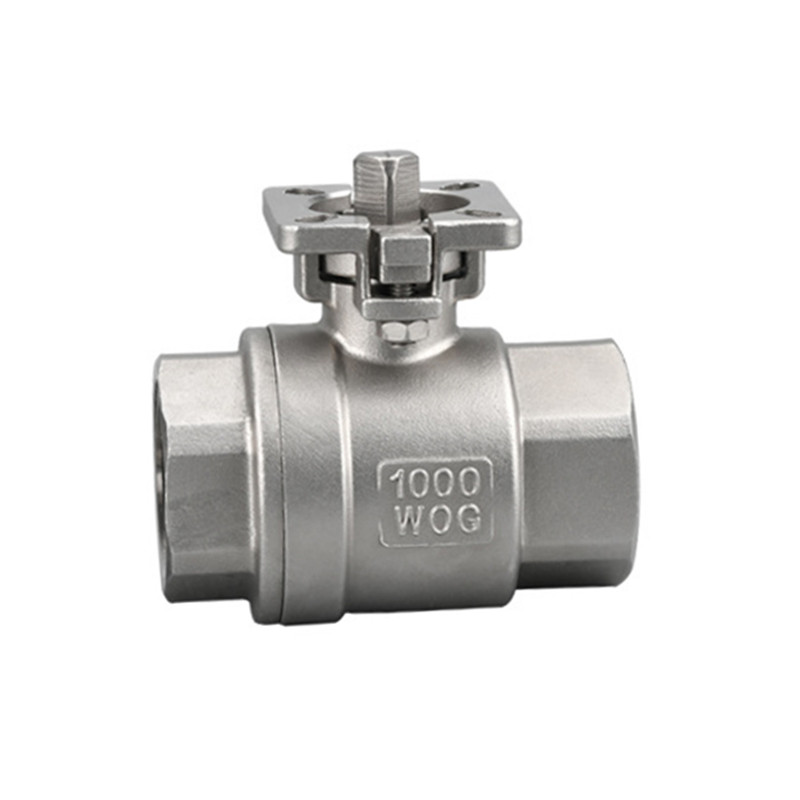

JOEPAI Female Threaded 2PC Ball Valve with ISO5211 Direct Mounting Pad is an advanced valve made of high-quality stainless steel (SS304 / SS316). This valve adopts a two-piece design and ISO5211 mounting pad, providing great convenience for actuator installation and suitable for modern industrial systems that require high efficiency and minimal manual intervention.
Manufactured by Wenzhou Joepai Valve Co., Ltd., whose predecessor Jingyue Valve Factory was established in 2003, JOEPAI has more than ten years of experience in stainless steel ball valves, fire hydrants, booster valves, and industrial flow control solutions.
| Design | ASME B16.34 / API 608 |
|---|---|
| Wall Thickness | ASME B16.34 / EN12516-3 |
| Fire Protection Design | Complies with API 607 |
| Threaded End | BSPT, BSP(P), NPT, DIN2999 G Thread |
| Inspection and Testing | API598 / EN12266 |
JOEPAI has a wide range of capabilities as we manufacture different types of valves and provide solutions for every industry. They are designed to operate in any environment and at any work rate. Some of them are industrial ball valves, butterfly valves, gate valves, check valves, globe valves, and fire system valves.

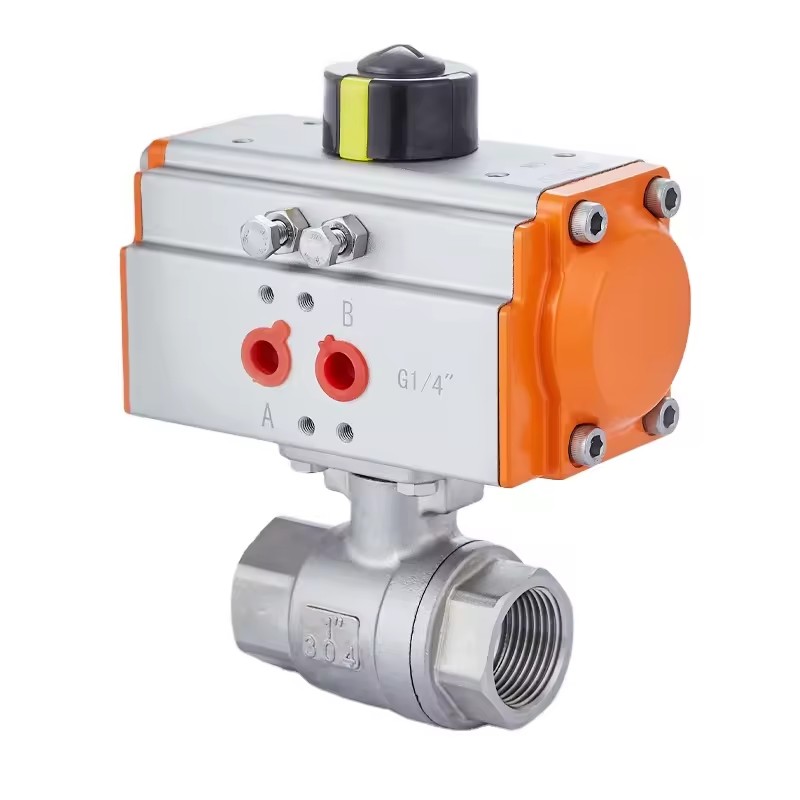

Allows fast and reliable mounting of pneumatic or electric actuators, enabling automation with minimal manual intervention.
Stem equipped with anti-static device and explosion-proof design, improving safety when handling flammable media.
Pressure balance hole on the ball groove prevents abnormal pressure rise in the valve chamber.
Precision cast valve body ensures clean surfaces, stable dimensions and reliable sealing performance.
| No. | Part Name | Material |
|---|---|---|
| 1 | Body | WCB / CF8M / CF8 |
| 2 | Cap | WCB / CF8M / CF8 |
| 3 | Seat | PTFE |
| 4 | Ball | SS316 / SS304 / SS |
| 5 | Stem | SS316 / SS304 / SS |
| 6 | Gasket | PTFE |
| 7 | Thrust Washer | PTFE |
| 8 | Packing | PTFE |
| 9 | Gland | SS304 / SS |
| 10 | Handle | SS304 / SS |
| 11 | Spring Washer | SS304 / SS |
| 12 | Stem Nut | SS304 / SS |
| 13 | Locking Piece | SS304 / SS |
| 14 | Plastic Cover | Plastic |
Materials can be customized according to working conditions, media, pressure and temperature requirements.
We supply standard sizes, and we can also accommodate custom orders manufactured in accordance with your drawings. Our engineering team can provide tailored designs to meet specific project requirements.
| NPS | DN | D | L | H | H1 | RA | RB | Ra | Rb | K |
|---|---|---|---|---|---|---|---|---|---|---|
| 1/2" | 15 | 15 | 62 | 38 | 9 | 18 | 21 | 3 | 3 | 9 |
| 3/4" | 20 | 20 | 75 | 41 | 9 | 18 | 21 | 3 | 3 | 9 |
| 1" | 25 | 25 | 85 | 58 | 11 | 21 | 25 | 3 | 3.5 | 11 |
| 11/4" | 32 | 30 | 91 | 60 | 11 | 21 | 25 | 3 | 3.5 | 11 |
| 11/2" | 40 | 38 | 105 | 75 | 14 | 25 | 35 | 3.5 | 4.5 | 14 |
| 2" | 50 | 49 | 120 | 80 | 14 | 25 | 35 | 3.5 | 4.5 | 14 |
Dimensions are for reference. Please confirm final drawings and actuator mounting dimensions with JOEPAI before ordering.
This Female Threaded 2PC Ball Valve with ISO5211 Direct Mounting Pad is widely used in water treatment, chemical processing, petroleum, natural gas, HVAC, food processing and other industrial pipelines for shut-off and flow control. It is designed for automation and is not recommended for throttling.
Wenzhou Joepai Valve Co., Ltd. was established in 2020, with its predecessor Jingyue Valve Factory founded in 2003. We have more than ten years of experience in stainless steel ball valves, fire hydrants, booster valves and industrial flow control solutions.
Our products are produced in accordance with international standards API, ANSI, JIS, ISO, DIN, GOST, BS and domestic standards JB, GB. We focus on providing customized services to meet the unique needs of global customers for valve supply.

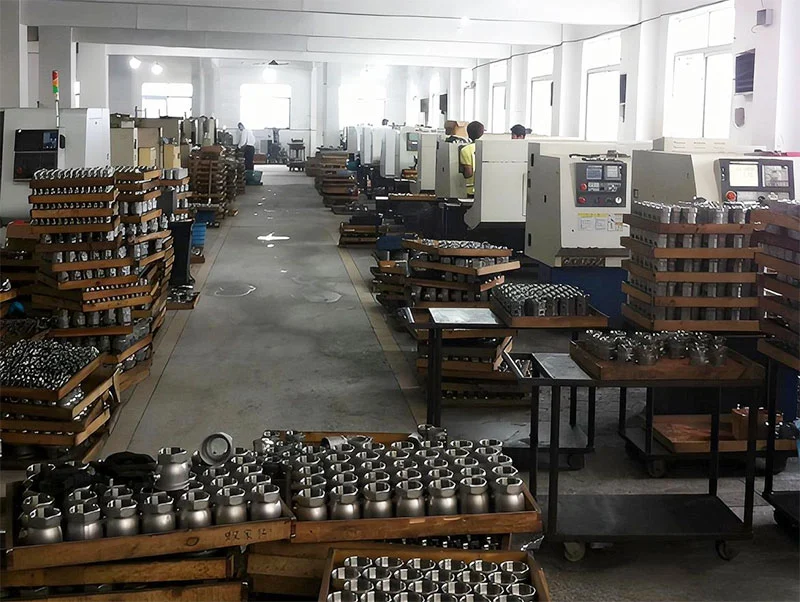

Wenzhou Joepai Valve Co., Ltd. is located in Longwan District, Wenzhou, Zhejiang Province, near the airport, with convenient transportation. The company integrates design, development, manufacturing and sales as a professional industrial flow control solution enterprise.
The company has CAD valve design, UG three-dimensional shaping and a quality inspection test center. Powerful production equipment and perfect testing methods effectively improve product quality and protect customer interests.

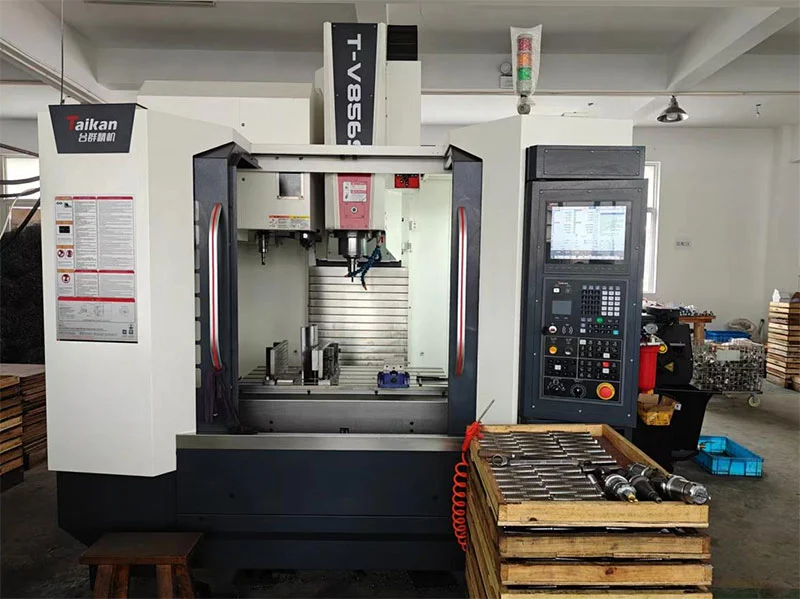

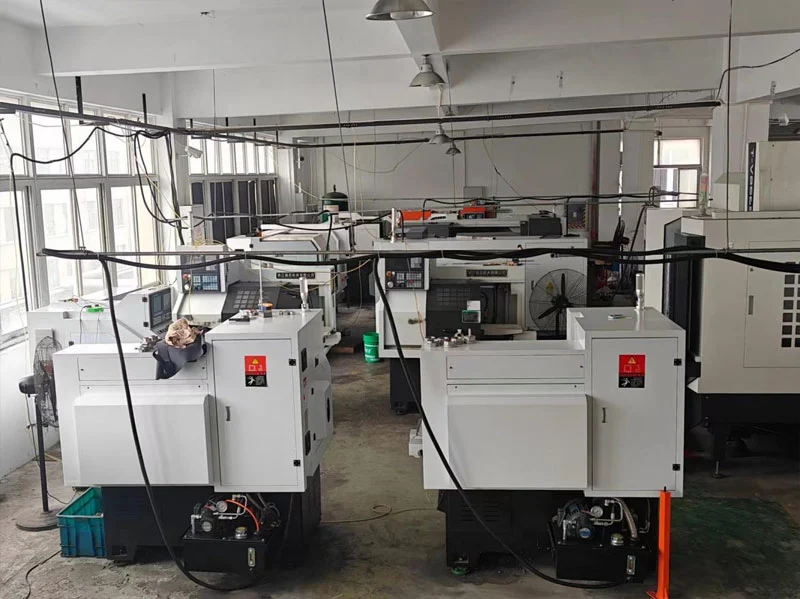

Core production equipment: more than 20 high-precision CNC lathes, 1 multifunctional machining center, 2 special pressure test equipment. Testing laboratory: spectral quantitative analyzer, high-precision roundness tester, hardness tester, torque wrench, valve fatigue tester.
JOEPAI has achieved ISO 9001 certification, with EU CE certification for core products, Korean KC certification for ball valves, and Australian AS 2419.2-2009 certification for fire hydrant products. The Dual Booster system is designed to comply with AS 2419.3 technical specifications.
Please contact us for the specific certificate applicable to this model and order quantity.
This valve combines a two-piece split body with an ISO5211 direct mounting pad, making it ideal for automation. It also features an explosion-proof stem, anti-static device, precision cast body and pressure balance hole for safer and more stable performance in industrial systems.
Standard options include BSPT, BSP(P), NPT and DIN2999 G thread. Other thread standards can be customized on request. Please confirm your required thread type before ordering.
Yes. The ISO5211 direct mounting pad allows fast and reliable installation of pneumatic or electric actuators. Our technical team can help you select the right actuator according to your working conditions.
Yes. The fire protection design complies with API 607. Design follows ASME B16.34 and API 608, wall thickness follows ASME B16.34 and EN12516-3, and inspection and testing follow API598 and EN12266.
Body: WCB, CF8, CF8M. Ball and stem: SS316, SS304 or SS. Seat and seals: PTFE. Special materials such as SS304L, SS316L or Duplex stainless steel 2205/2507 can be customized on request.
Yes. We support sample orders for quality evaluation. Please contact us with your required size, thread standard, pressure rating and medium, and our team will arrange the sample and delivery details quickly.
We offer flexible MOQ for trial orders and long-term cooperation. Normal delivery time is about 15–30 days after order confirmation, depending on quantity and customization requirements.
We provide a 12-month warranty from the date of delivery. For quality issues not caused by human factors, we will repair or replace the product free of charge. Our after-sales team responds quickly to solve any technical or quality concerns.
Tell us your valve size, thread standard, pressure rating, medium and quantity. Our team will reply with price, lead time and technical confirmation within 24 hours on working days.
