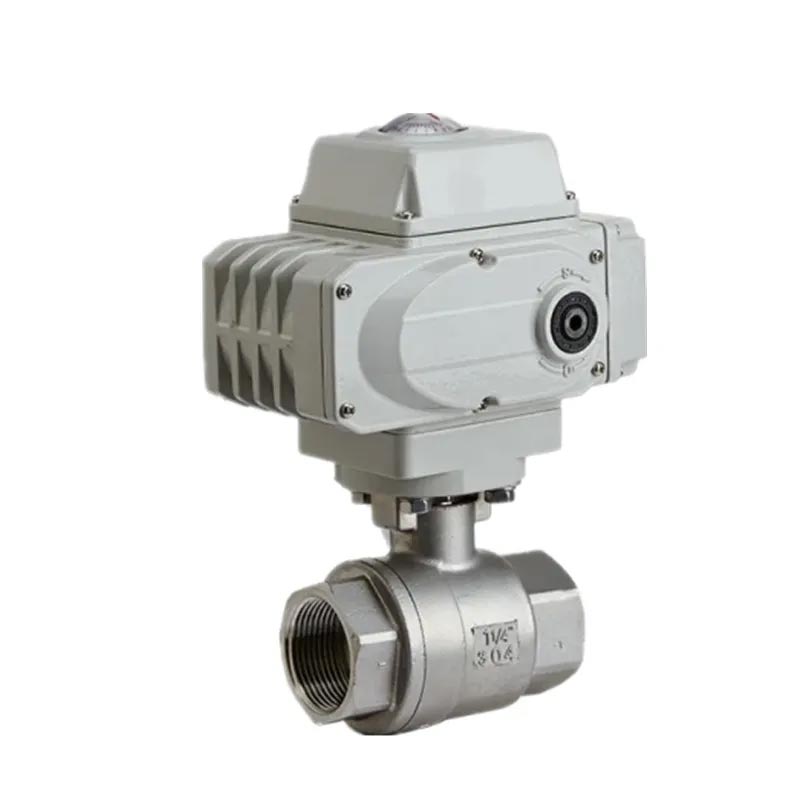

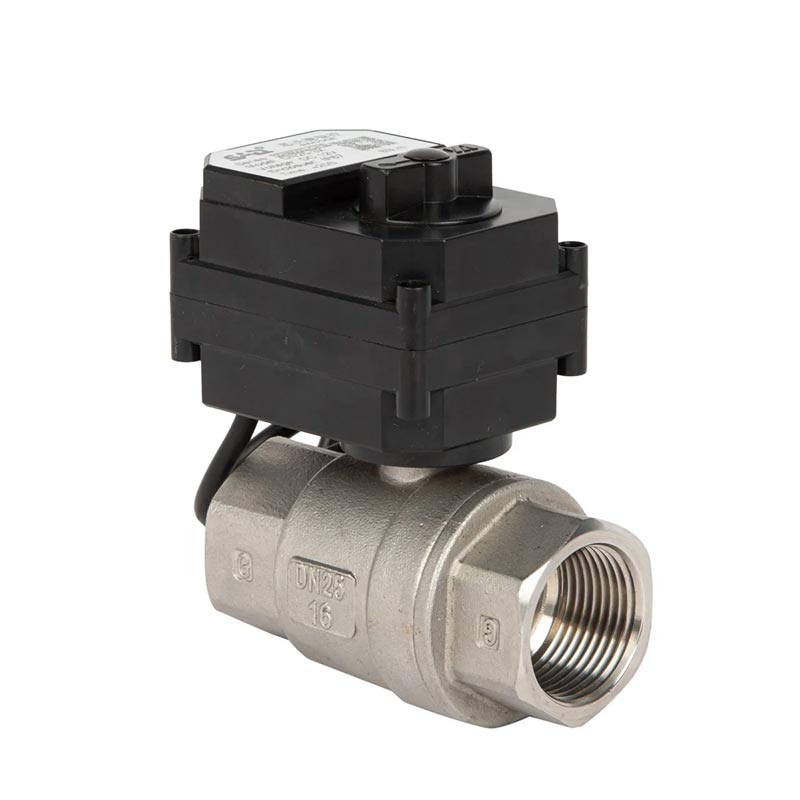

2PC Electromagnetic Stainless Steel Ball Valve is an industrial equipment controlled by electromagnetic technology. It is an automation basic component used to control fluids and belongs to actuators, not limited to hydraulic and pneumatic systems. It is used in industrial control system to adjust the direction, flow, speed and other parameters of medium. Electromagnetic valves can be used in conjunction with different circuits to achieve the desired control, while ensuring the accuracy and flexibility of the control. There are many types of solenoid valves, and different solenoid valves play a role in different positions of the control system. The most commonly used ones are one-way valves, safety valves, directional control valves, speed regulating valves, etc.
1. Low density and high filling capacity;
2. Aging resistance;
3. Corrosion resistance;
4. Water vapor resistance performance;
5. Hot water resistance performance;
6. Electrical performance;
7. Elasticity;
8. Adhesive properties.
2PC Electromagnetic Stainless Steel Ball Valve is used in oil, gas, chemical, pharmaceutical, food, water, and HVAC industries for precise flow control in harsh environments.
| 1 | Body | WCB/CF8M/CF8 | 8 | Packing | PTFE |
| 2 | Cap | WCB/CF8M/CF8 | 9 | Gland | SS304/SS |
| 3 | Seat | PTFE | 10 | Handle | SS304/SS |
| 4 | Ball | SS316/SS304/SS | 11 | Spring Washer | SS304/SS |
| 5 | Stem | SS316/SS304/SS | 12 | Stem Nut | SS304/SS |
| 6 | Gasket | PTFE | 13 | Locking Piece | SS304/SS |
| 7 | Thrust Washer | PTFE | 14 | Plastic Cover | Plastic |
| NPS | DN | D | L | H | H1 | RA | RB | Ra | Rb | K |
| 1/2" | 15 | 15 | 62 | 38 | 9 | 18 | 21 | 3 | 3 | 9 |
| 3/4" | 20 | 20 | 75 | 41 | 9 | 18 | 21 | 3 | 3 | 9 |
| 1" | 25 | 25 | 85 | 58 | 11 | 21 | 25 | 3 | 3.5 | 11 |
| 11/4" | 32 | 30 | 91 | 60 | 11 | 21 | 25 | 3 | 3.5 | 11 |
