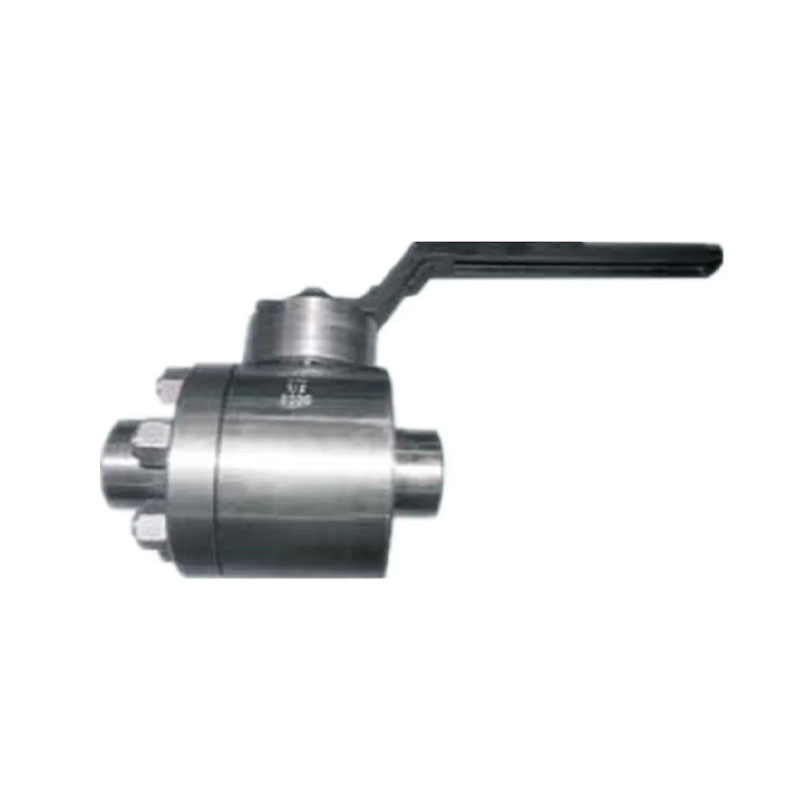

2PC High Pressure Ball Valve Class 3000LB

JOEPAI is one of the most famous valve factory in China provided 2PC High Pressure Ball Valve Class 3000LB. It is mainly used to cut off or connect media in pipelines, and can also be used for fluid regulation and control. Among them, the hard sealed V-shaped ball valve has a strong shear force between its V-shaped core and the metal valve seat welded with hard alloy, which is particularly suitable for media containing fibers, small solid particles, etc. The multi way ball valve on the pipeline can not only flexibly control the merging, splitting, and switching of the flow direction of the medium, but also close any channel to connect the other two channels. This type of valve should generally be installed horizontally in pipelines.

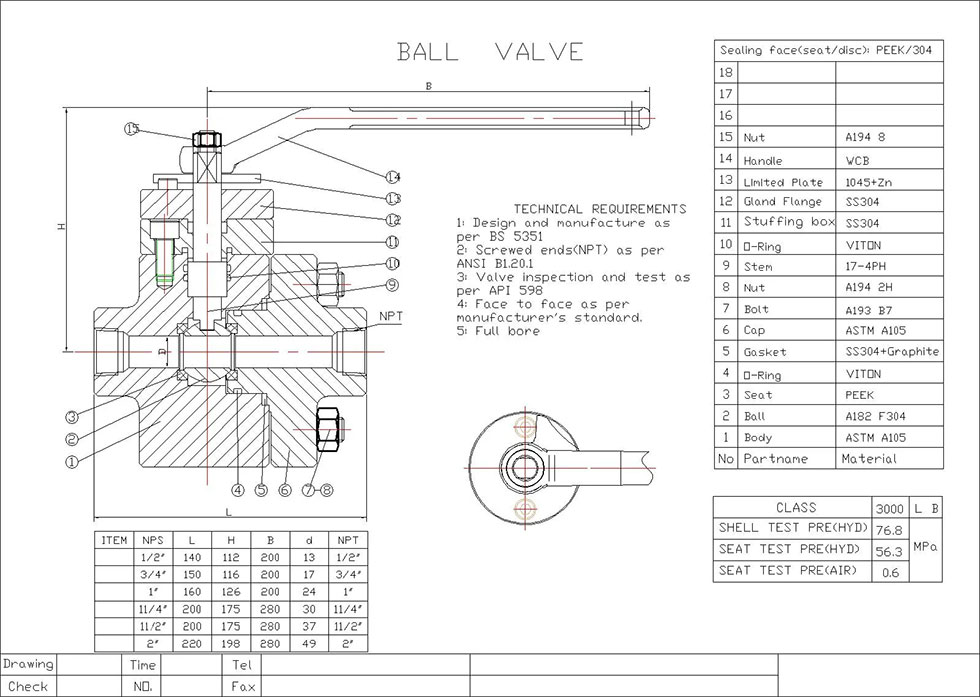

Technical Requirements

1: Design and manufacture as per BS 5351
2: Screwed ends(NPT) as per ANSI B1.20.1
3: Valve inspection and test as per API 598
4: Face to face as per manufacturer's standard.
5: Full bore

Product Feature:

1. The fluid resistance is small, and full bore ball valves have almost no flow resistance.
2. Simple structure, small size, and light weight.
3. Tight and reliable. It has two sealing surfaces, and the sealing surface material of the ball valve is widely used with various plastics, which has good sealing performance and can achieve complete sealing. It has also been widely used in vacuum systems.
4. Easy to operate, quick opening and closing, only need to rotate 90 ° from fully open to fully closed, making it convenient for remote control.
5. Easy maintenance, simple ball valve structure, and generally movable sealing rings make disassembly and replacement relatively convenient.
When fully open or fully closed, the sealing surfaces of the ball and valve seat are isolated from the medium, and when the medium passes through, it will not cause erosion of the valve sealing surface.
7. 2PC High Pressure Ball Valve Class 3000LB has a wide range of applications, with diameters ranging from a few millimeters to several meters, and can be used from high vacuum to high pressure.
8. Due to the wiping property of ball valves during opening and closing, they can be used in media with suspended solid particles
