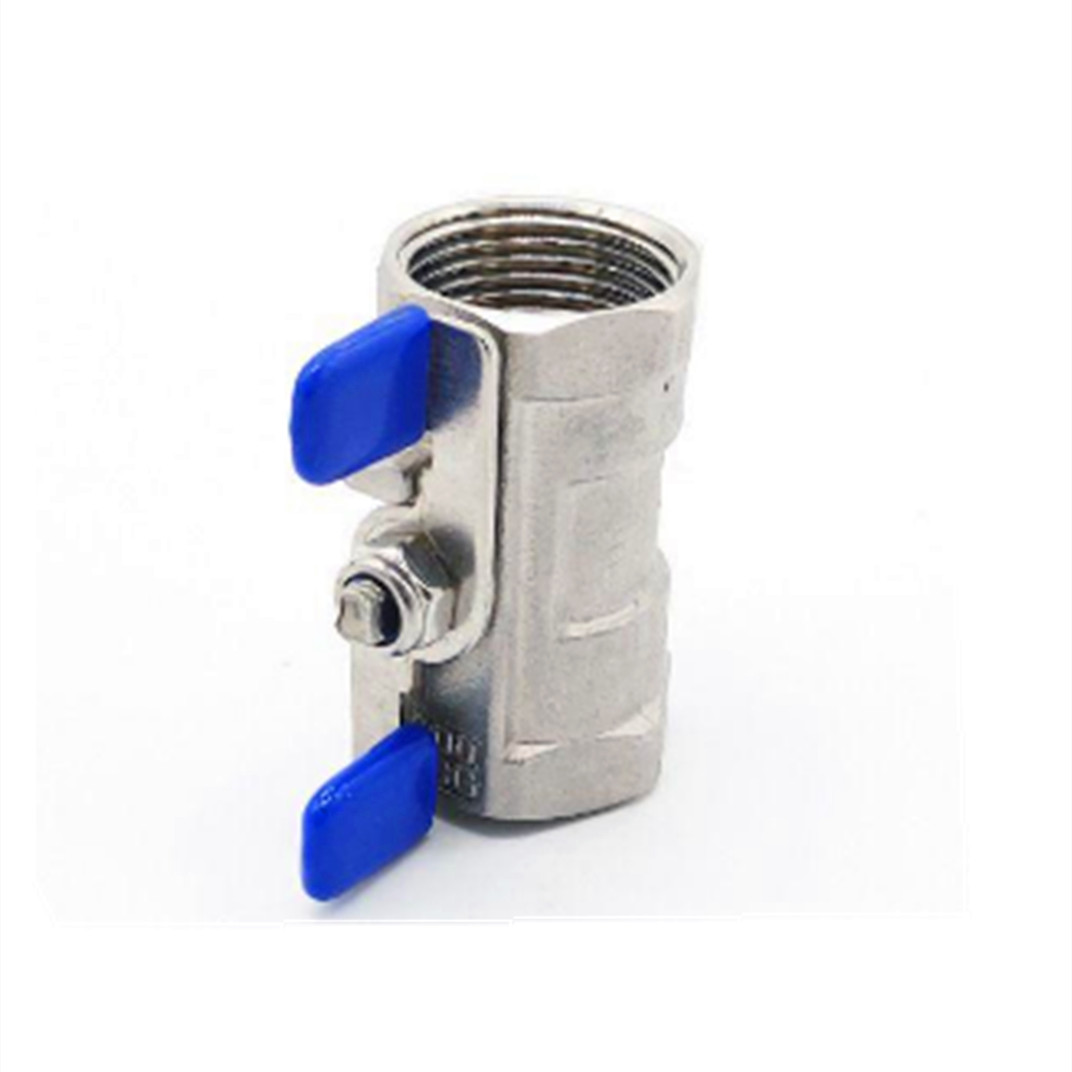

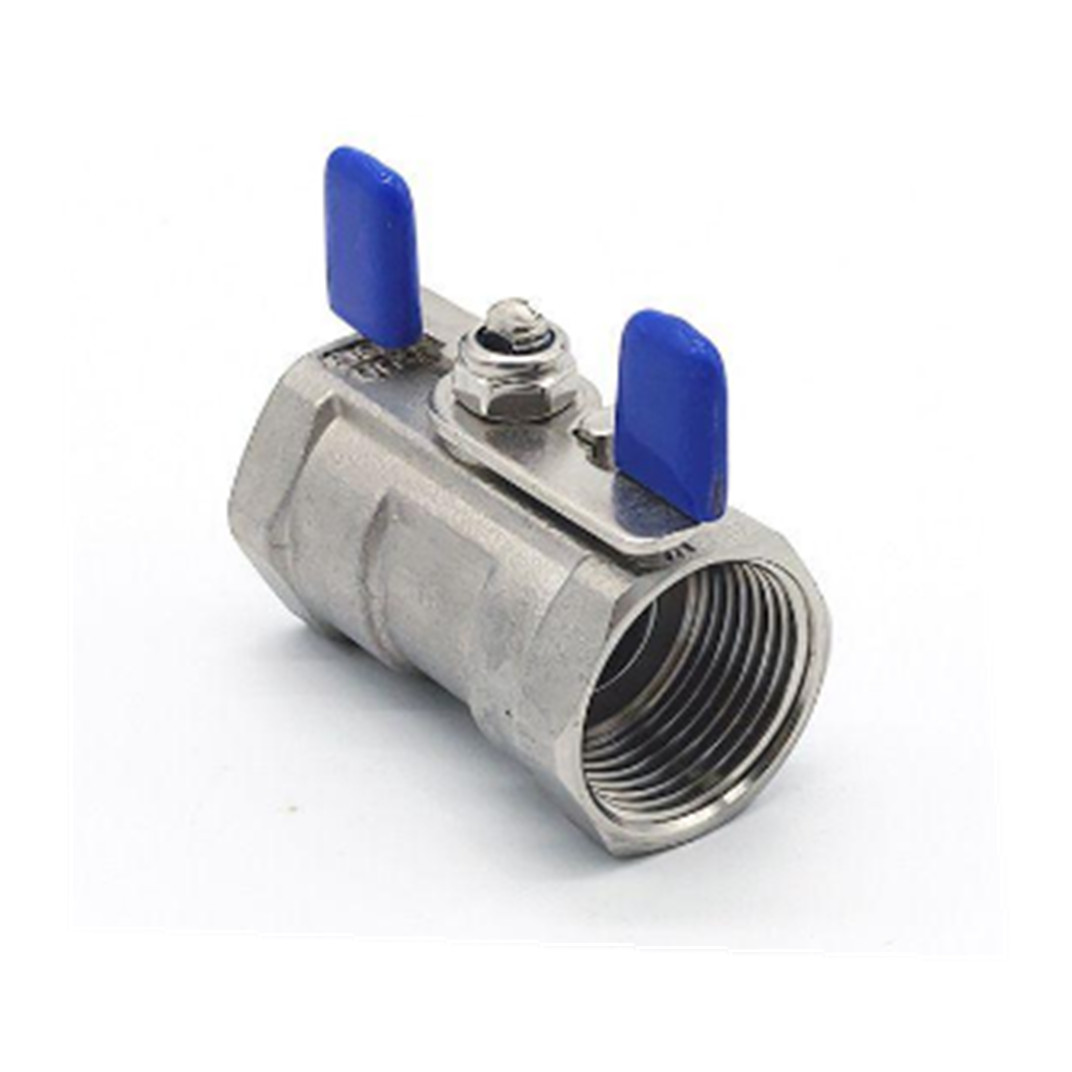

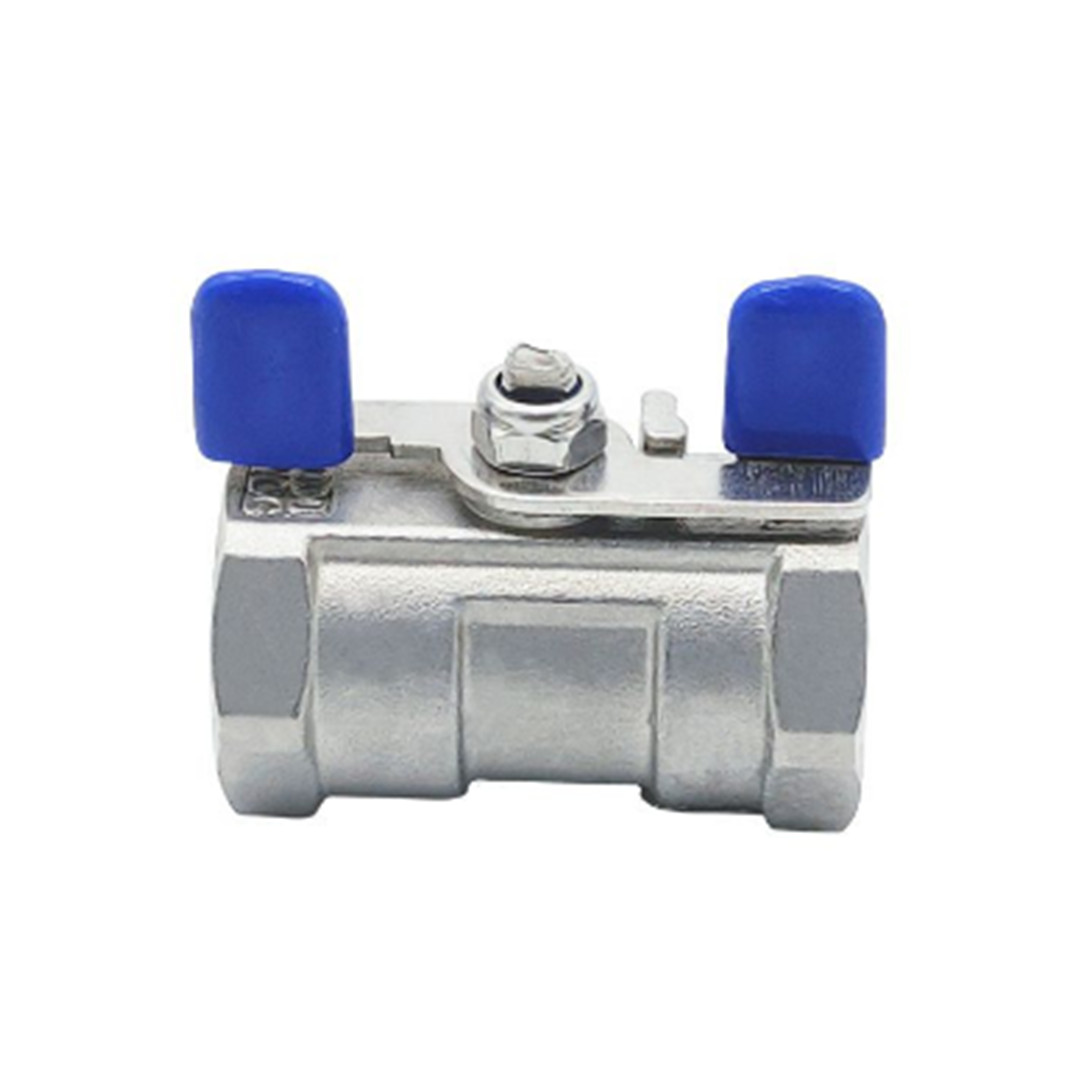

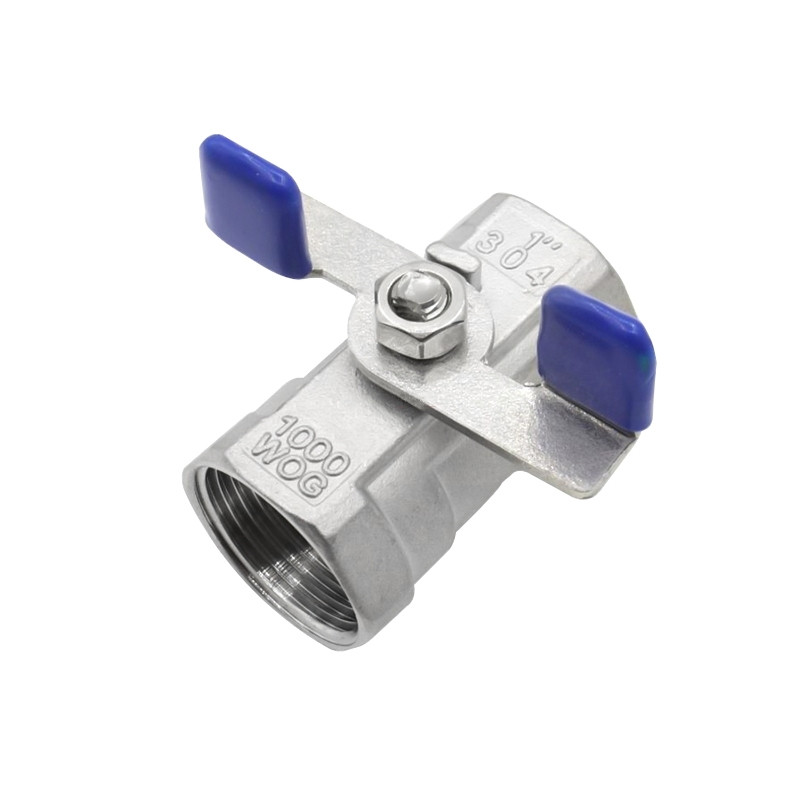

The China JOEPAI High Quality 304 Stainless Steel Butterfly Handle Ball Valves have a stable structure, high pressure bearing capacity, and anti-corrosion performance, making it the preferred valve for many OEM systems, engineering installations, and fluid distribution controls. It is particularly suitable for long-term operation in precision, clean, and harsh environments.
● Name：Butterfly Handle Ball Valve
● Material：304 316 Stainless Steel
● Port Size: 1/4" (DN8), 3/8" (DN10), 1/2" (DN15), 3/4" (DN20), 1" (DN25)
● Connection: Thread NPT, BSPT, DIN259, DIN2999, ISO228 CLASS A
● Type: One Piece Body
Stable Performance, Corrosion And Wear Resistance, Long Service Life
Smoother performance and less friction; Turn more smoothly
Pharmaceutical purification systemCompact Thread, Not Easy To Slip, Strong Sealing
Standard port flow for special use or needs(not full port)
Nominal Working Pressure:1000 WOG:Max 1000 psi for Water, Oil, Gas,
Support laser customized logo and packaging design
Provide OEM/ODM services
Fully inspected before leaving the factory, with quality inspection report
attached
Optional additional services such as silicone cover protection and sea
freight reinforced packaging
| 1 | Body | WCB/CF8M/CF8 | 7 | Packing | PTFE |
| 2 | Ball | SS316/SS304/SS | 8 | Gland | SS304/SS |
| 3 | Seat | PTFE | 9 | Handle | SS304/SS |
| 4 | Cap | WCB/CF8M/CF8 | 10 | Spring Washer | SS304/SS |
| 5 | Stem | SS316/SS304/SS | 11 | Stem Nut | SS304/SS |
| 6 | Thrust Washer | PTFE |
| NPS | D | L | H | W |
| 1/4" | 5 | 40 | 74 | 30 |
| 3/8" | 7 | 45 | 74 | 30 |
| 1/2" | 10 | 60 | 95 | 40 |
| 3/4" | 10 | 60 | 95 | 40 |
| 1" | 14 | 70 | 102 | 50 |
