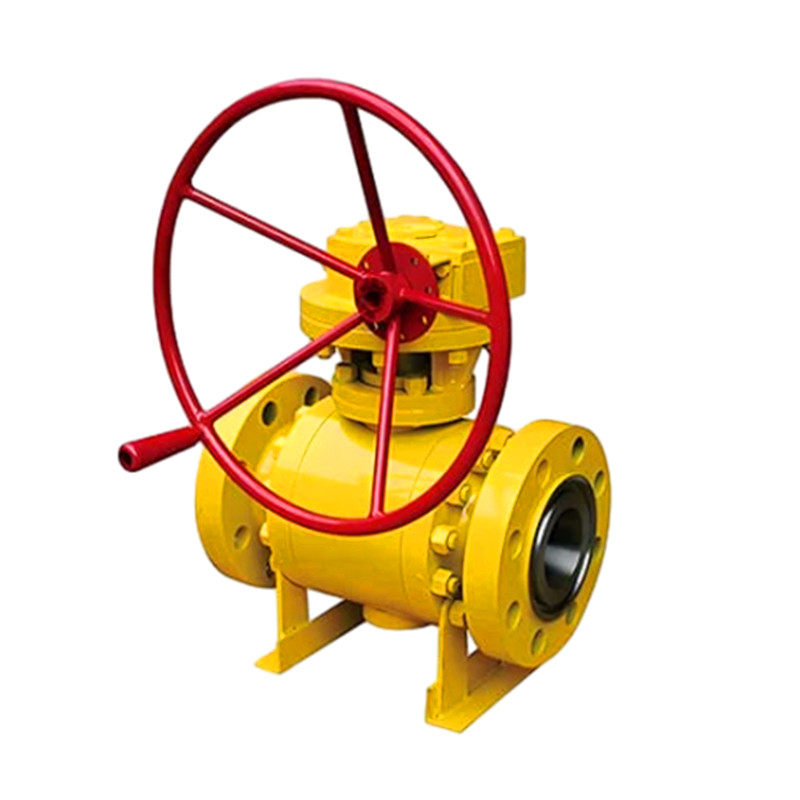

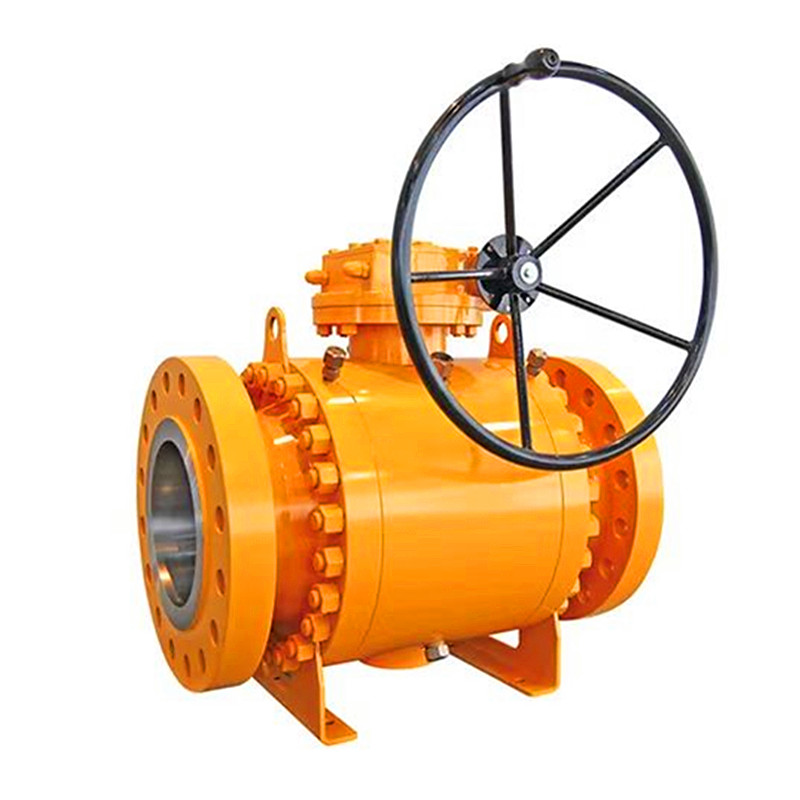

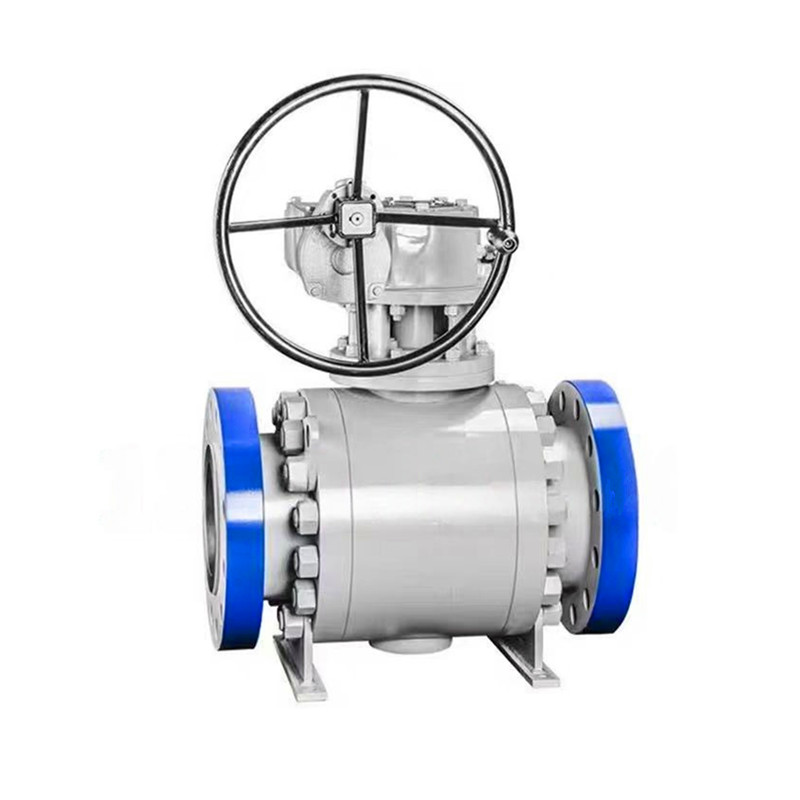

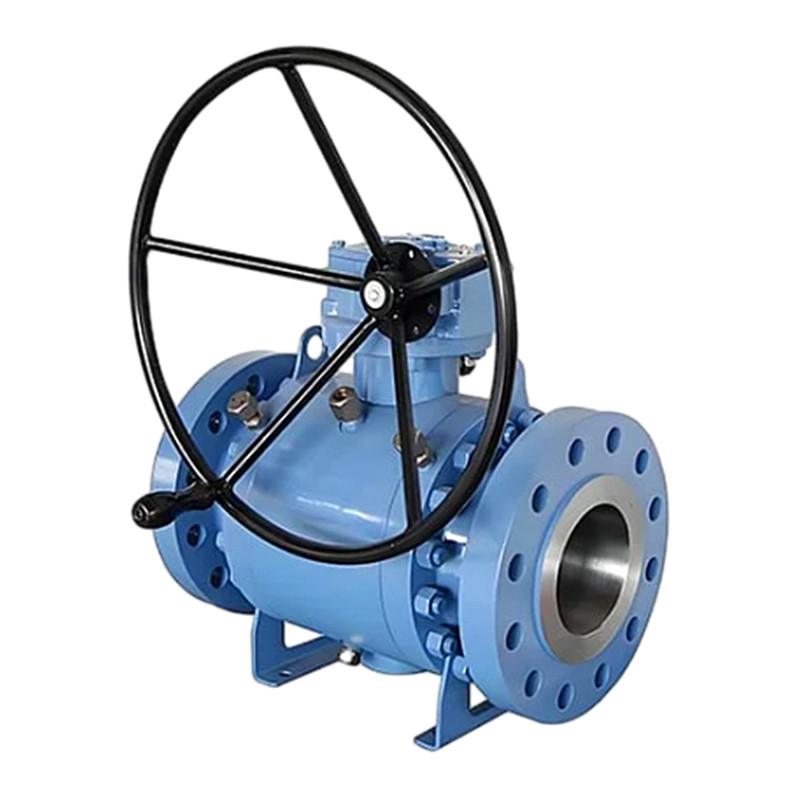

3PC Forged Steel Full Bore Trunnion Mounted Flange Ball Valve

JOEPAI Valve has been deeply involved in the 3PC Forged Steel Full Bore Trunnion Mounted Flange Ball Valve market since 2003, the valve consists of three components, facilitating disassembly and maintenance. Internal parts can be replaced without dismantling the entire pipeline, significantly reducing maintenance time and costs. Joepai focusing on customized and export services for forged high-pressure valves, with rich OEM experience. In industrial applications involving harsh conditions such as high pressure, high temperature, or corrosive media, forged ball valves are often a more reliable choice than cast valves. Unlike most ball valves that use casting processes, forged valves significantly improve their structural strength and pressure resistance through a unique manufacturing method. Choose a forged ball valve for severe conditions where safety, reliability, and maximum strength are non-negotiable.

Product Features

• Forged Steel Material: The valve body, ball and stem are all made of high-quality forged carbon steel (A105) or forged stainless steel (F304, F316) , processed through precision forging to eliminate casting defects, ensuring high strength and good corrosion resistance.

• Ball valves using a trunnion (fixed) ball design offer significant advantages in high-pressure conditions, operational performance, wear resistance, and safety, making them suitable for a variety of complex operating conditions.

• Flange Connection: Adopts ANSI-standard flange connection for seamless docking with pipeline systems, featuring easy installation and reliable sealing.

• Reliable Sealing Performance: The valve seat uses PTFE ,PEEK or metal sealing materials to ensure zero-leakage sealing under high-pressure and high-temperature conditions.

• Fire-safe Design: Complies with API 607 fire safety standards, maintaining sealing performance even in extreme conditions like fires to ensure system safety.

• Anti-static and Blow-out Proof Stem Design: Equipped with anti-static devices and blow-out proof stems to enhance electrical safety and operational stability.

• Multiple Operation Modes: Optional manual operation or automated control such as pneumatic, electric, or hydraulic actuators to meet requirements of different application scenarios.

• Low Flow Resistance Design: The smooth internal flow passage reduces flow resistance, effectively lowering energy consumption and improving system efficiency.

Technical Specifications

• Nominal Diameter: 2"~40" (DN50 to DN1000)

• Nominal Pressure: 150LB to 900LB

• Working Temperature: -29℃ to 425℃

• Material: Forged Steel (A105,F304,F316)

• Sealing Materials: PTFE, RPTFE, PEEK, metal seals

• Flange Connection as per ASME B16.5 standard

• Operation Modes: Manual, Pneumatic, Electric, Hydraulic (optional)

• Design Standards: API 608, ASME B16.34

• Testing Standard: API 598

Application Fields

• Oil & Gas: Used in high-pressure oil/gas transmission pipelines, refineries, and natural gas processing facilities.

• Chemical Industry: Suitable for handling corrosive media like acids, alkalis, and salt solutions.

• Power Industry: Applied to cooling water systems and steam pipelines in power plants.

• Water Treatment & Municipal Water Supply: Ensures water quality safety and stable system operation.

• Offshore Engineering: Performs excellently in seawater environments, suitable for fluid control systems in offshore platforms and ships.

Forged Ball Valve Parts' Materials

Main Dimensions

Class 150LB                                                                                                                                                                                                                                                                                                                                      Unit：mm

Class 300LB                                                                                                                                                                                                                                                                                                                                     Unit：mm
