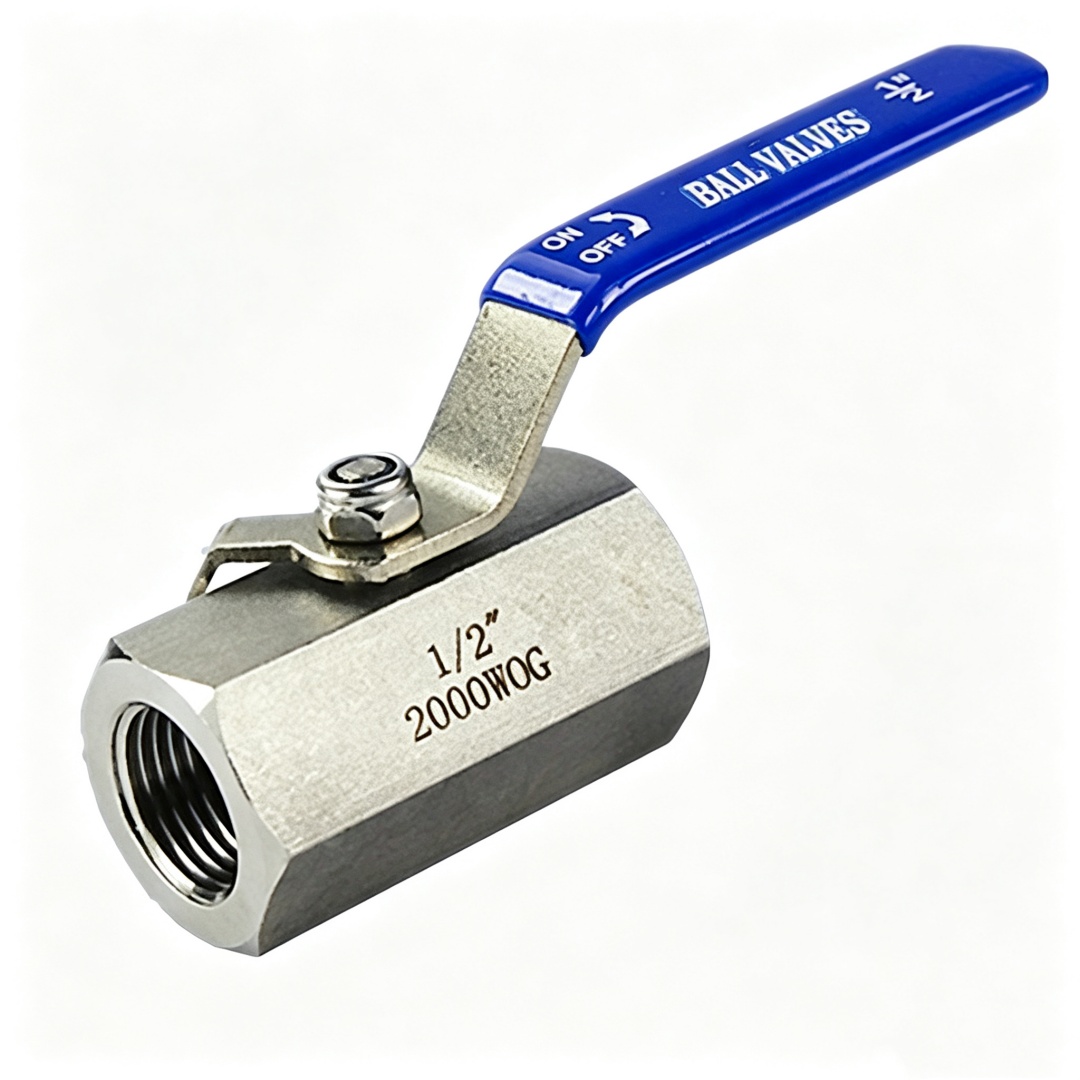

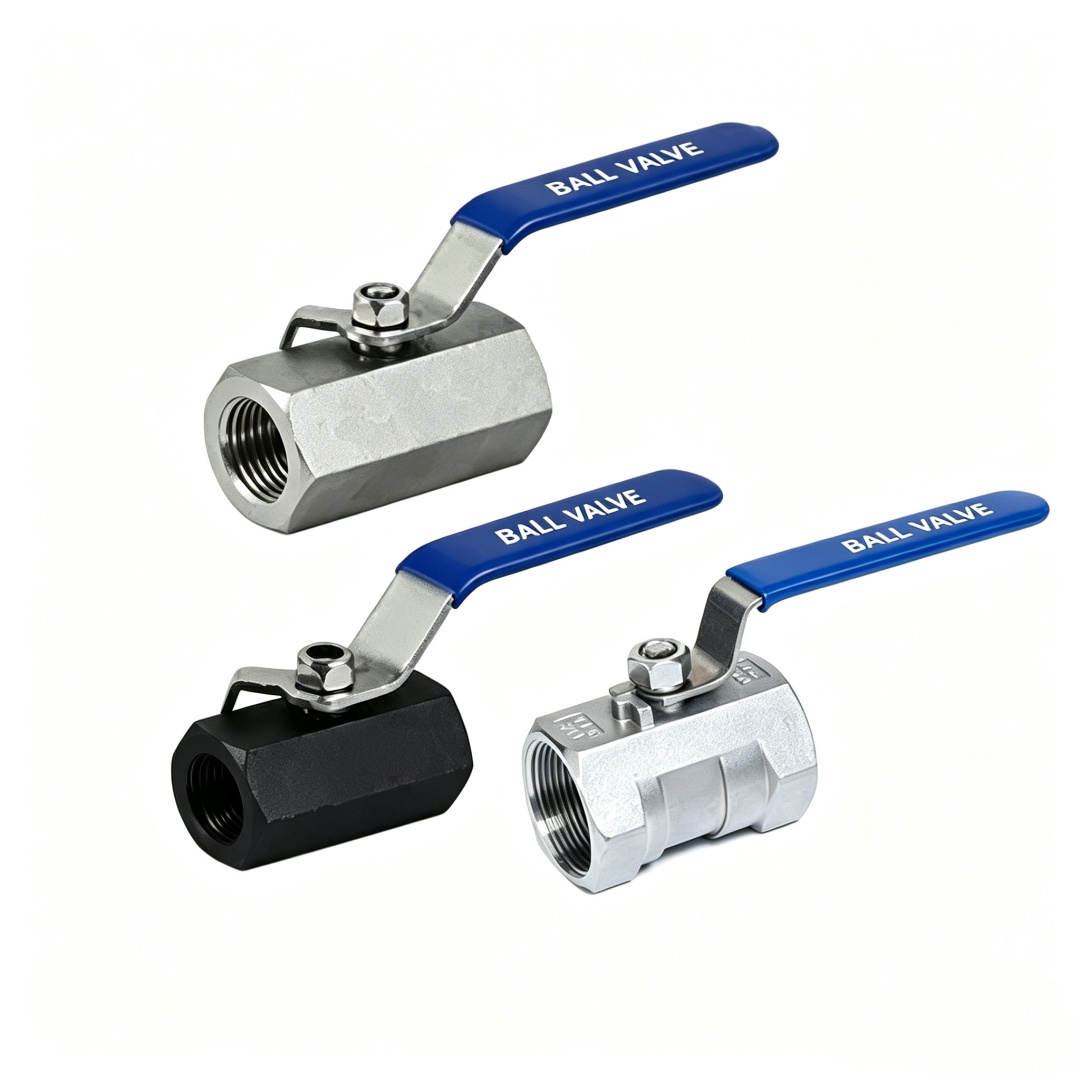

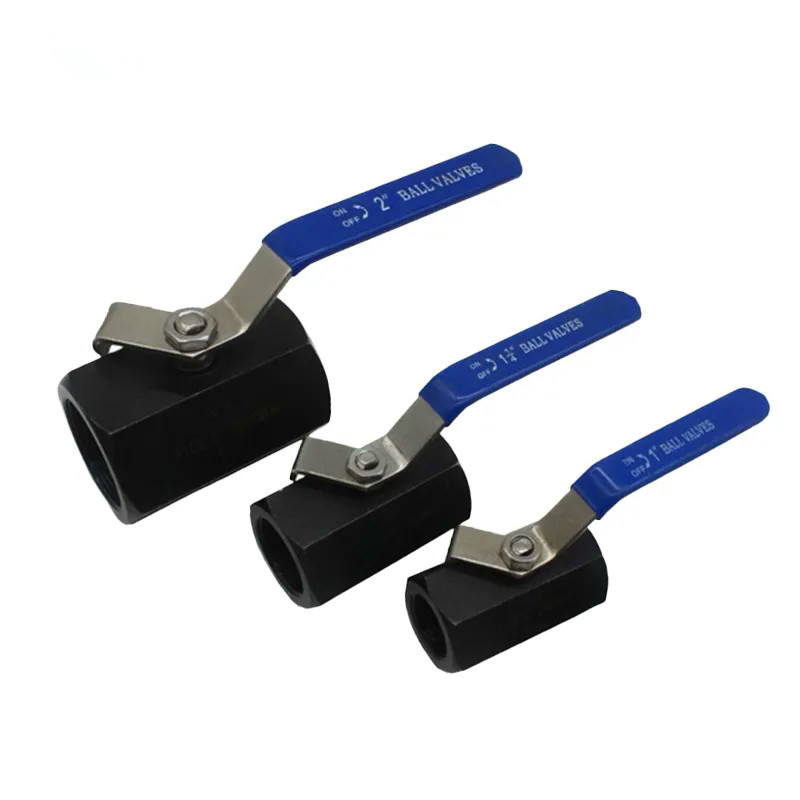

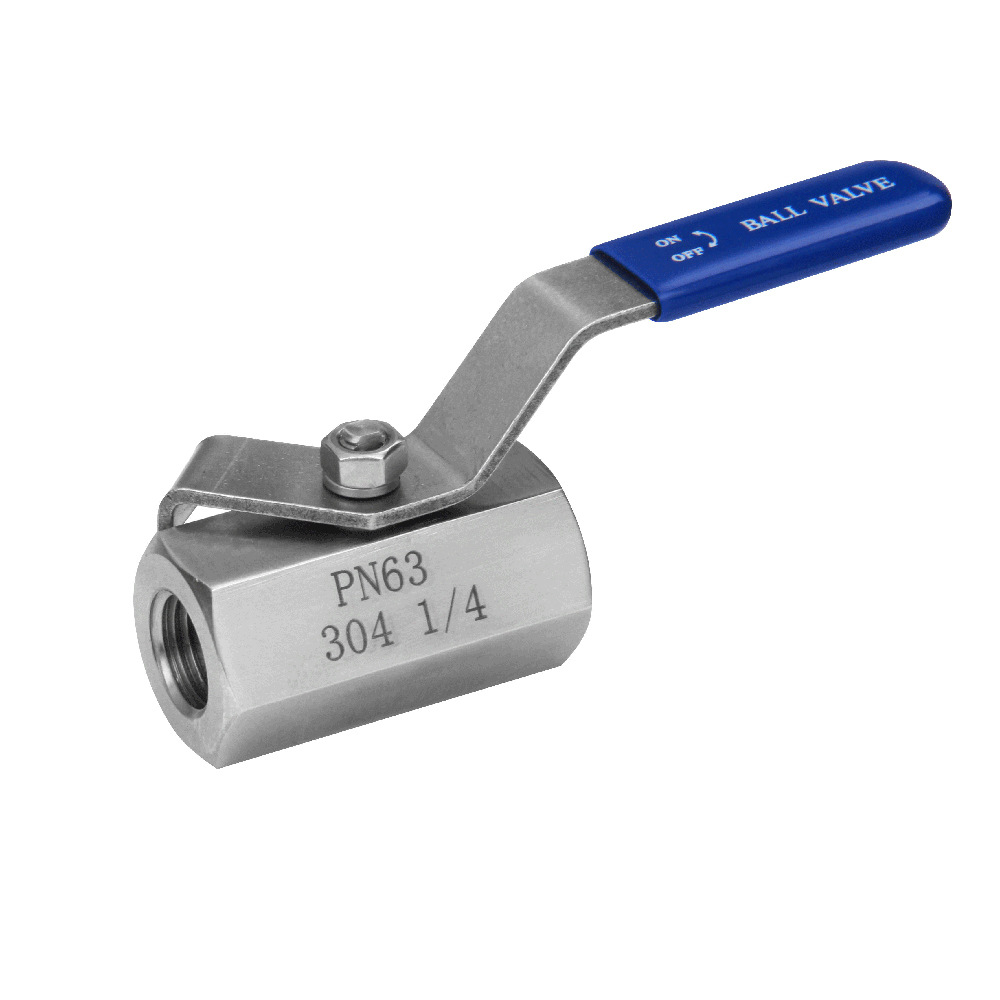

JOEPAI High Quality One Piece Stainless Steel Internal Thread Hexagon Ball Valves get their name from the six-sided body. That shape is not just for looks — it lets you get a standard wrench on the valve during installation, which matters when you are working in a tight spot and do not have much room to move.
These are made as one-piece threaded ball valves, so there is no separate end cap to worry about. They are mostly used for on-off control on small-bore lines, and they tend to show up in places where space is tight and a full-size valve simply will not fit.
The design itself is simple, with few parts to fail. That is a big part of why they hold up well over time and why so many industrial fluid systems use them as a go-to choice for small line shut-off.
| Item | Part | Material |
|---|---|---|
| 1 | Body | SS304 / SS316 |
| 2 | Cap | SS304 / SS316 |
| 3 | Ball | SS304 / SS316 |
| 4 | Stem | SS304 / SS316 |
| 5 | Body Seat | RPTFE |
| 6 | Cap Seat | RPTFE |
| 7 | Packing | PTFE |
| 8 | Handle | 201 |
| 9 | Handle Sleeve | PVC |
| 10 | Handle Washer | PTFE |
| 11 | Gland | SS |
| 12 | Washer | SS |
| 13 | Gland Nut | A2-70 |
Materials can be customized according to working conditions, media, pressure and temperature requirements.
Standard sizes are listed below. Custom dimensions are available based on your drawings, and our engineering team can provide tailored designs to meet specific project requirements.
| Size | A | B | C | D | KGS |
|---|---|---|---|---|---|
| 1/4" | 43 | 5 | 28 | 73 | 0.10 |
| 3/8" | 47 | 7 | 32 | 82 | 0.16 |
| 1/2" | 62 | 9 | 47 | 117 | 0.30 |
| 3/4" | 70 | 12.5 | 52 | 117 | 0.50 |
| 1" | 86 | 15 | 65 | 130 | 1.00 |
| 1-1/4" | 94 | 20 | 75 | 132 | 1.47 |
| 1-1/2" | 102 | 25 | 78 | 157 | 1.80 |
| 2" | 115 | 32 | 90 | 160 | 3.00 |
Dimensions are for reference. Please confirm final drawings with JOEPAI before ordering.
The One Piece Stainless Steel Internal Thread Hexagon Ball Valves are widely used for on/off control on small-bore lines in water, gas, oil and other industrial fluid systems, especially where installation space is tight.
Wenzhou Joepai Valve Co., Ltd. was established in 2020, with its predecessor Jingyue Valve Factory founded in 2003. We have more than ten years of experience in stainless steel ball valves, fire hydrants, booster valves and industrial flow control solutions. Our products are produced in accordance with international standards API, ANSI, JIS, ISO, DIN, GOST, BS and domestic standards JB, GB.
Located in Longwan District, Wenzhou, Zhejiang Province, near the airport with convenient transportation, the company integrates design, development, manufacturing and sales as a professional industrial flow control solution enterprise. We focus on providing customized services to meet the unique needs of global customers for valve supply.
JOEPAI has achieved ISO 9001 certification, with EU CE certification for core products, Korean KC certification for ball valves, and Australian AS 2419.2-2009 certification for fire hydrant products. The Dual Booster system is designed to comply with AS 2419.3 technical specifications. Please contact us for the specific certificate applicable to this model and order quantity.
One Piece Stainless Steel Internal Thread Hexagon Ball Valve is a one-piece threaded ball valve with a hex-shaped body. The hex profile lets you clamp the valve directly with a wrench during installation, so you do not need extra wrench lugs on the body. That makes it a good fit for small bore pipelines where space is tight.
We offer NPT, BSPT, BSPP(G) internal threads. Tell us the standard and we will process accordingly. Other thread standards can be customized on request.
Standard rating is 1000PSI (PN64), and the high pressure version can withstand up to 2000PSI (137bar). Please confirm the exact rating you need before ordering.
The hexagonal one-piece stainless steel ball valve comes with a reduced port as standard. If you need a different port configuration, please contact us to discuss availability.
With PTFE seat, the working temperature is below 150°C. With PPL seat, the working temperature can go up to 300°C. Please choose the seat material based on your actual working temperature.
Yes. We support sample orders for quality evaluation. Please contact us with your required size, thread standard, pressure rating and medium, and our team will arrange the sample and delivery details quickly.
We offer flexible MOQ for trial orders and long-term cooperation. Normal delivery time is about 15–30 days after order confirmation, depending on quantity and customization requirements.
We provide a 12-month warranty from the date of delivery. For quality issues not caused by human factors, we will repair or replace the product free of charge. Our after-sales team responds quickly to solve any technical or quality concerns.
Tell us your valve size, thread standard, pressure rating, medium and quantity. Our team will reply with price, lead time and technical confirmation within 24 hours on working days.
