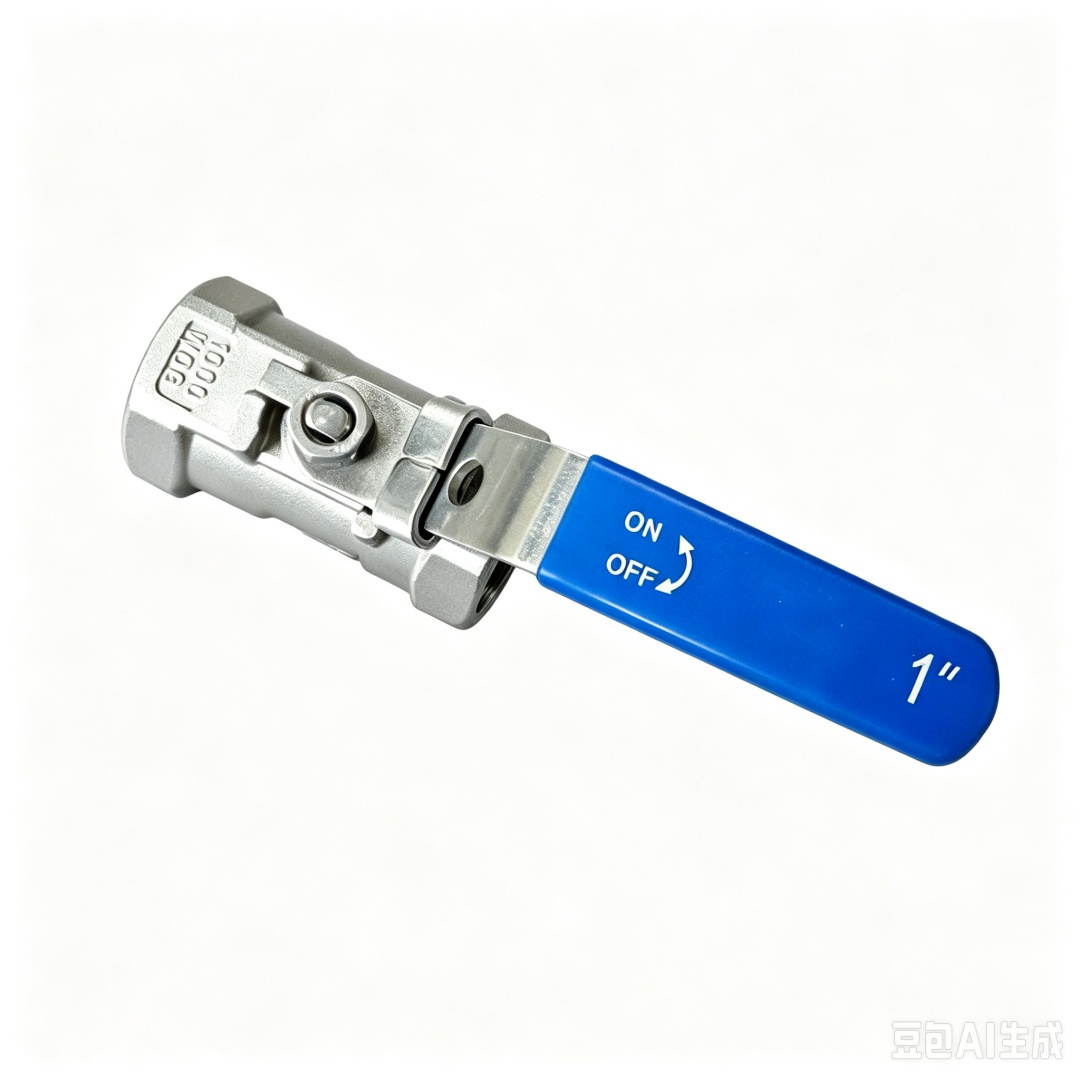

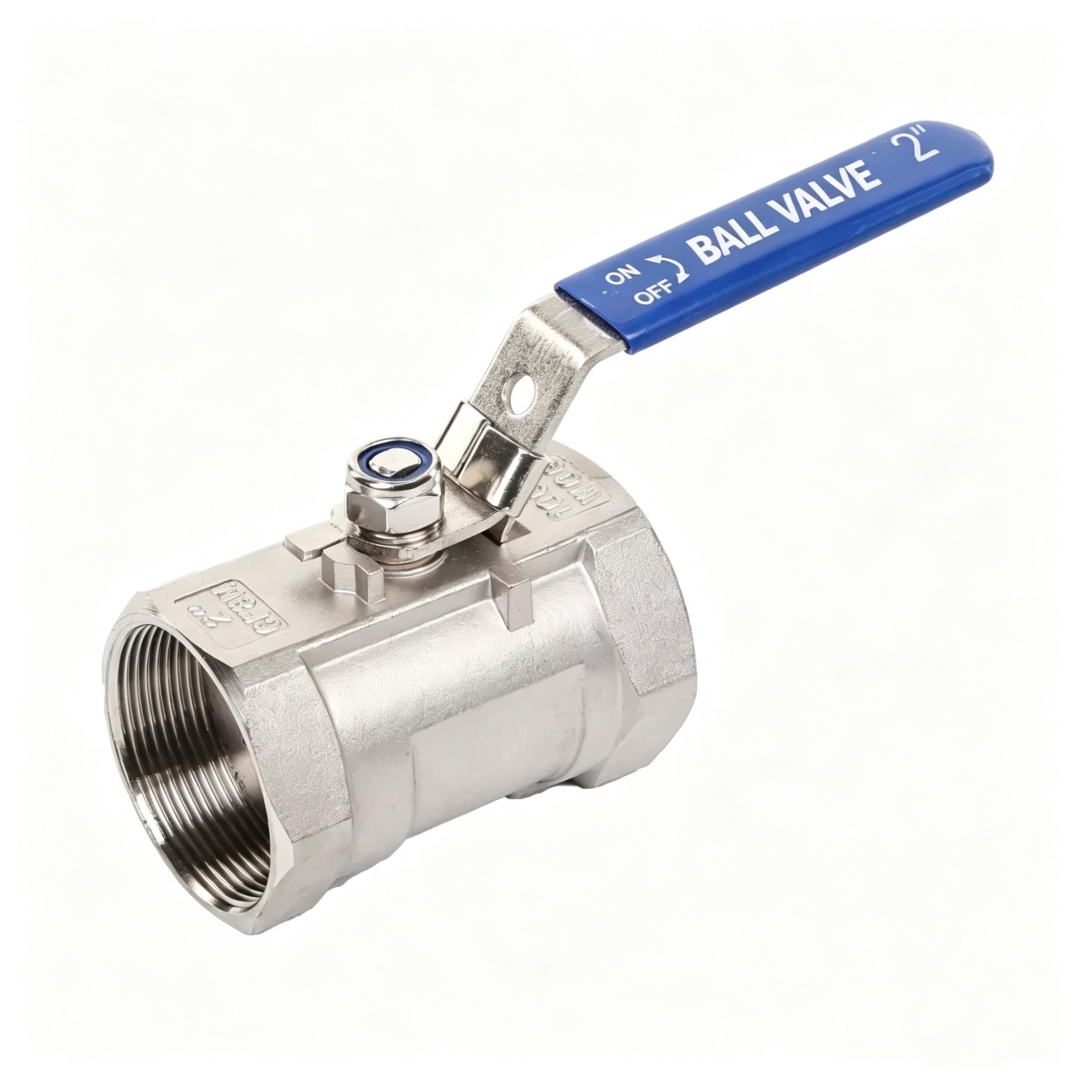

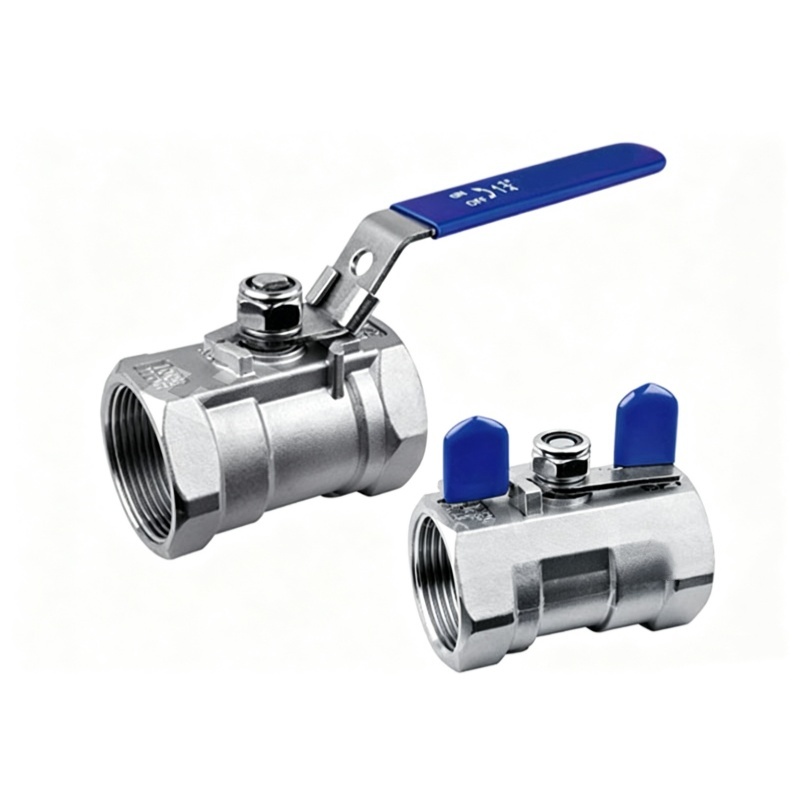

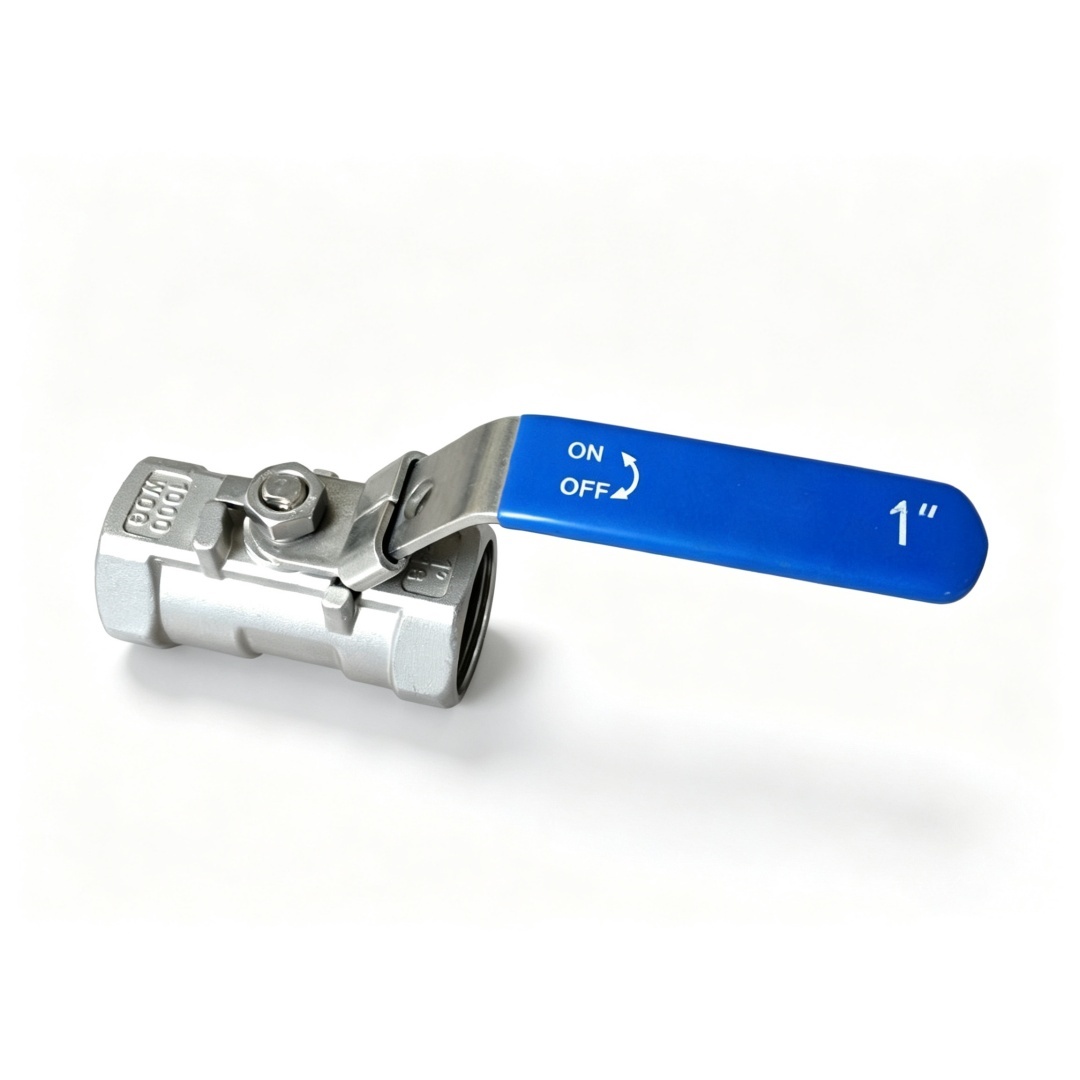

The JOEPAI High Quality Stainless Steel 1 Piece Ball Valve with Locking Handle has a stable structure, with high pressure resistance and excellent corrosion resistance. It runs stably for a long time even in precise, clean or harsh working environments. Fitted with a practical locking handle, the valve can be fixed at fully open or fully closed status. It stops anyone from opening or closing the valve without permission. It also keeps the handle from moving on its own when the pipe starts shaking — which means no surprise leaks, no system failures in the middle of the night. Simple, tough, and priced right. That's why this lockable stainless steel ball valve ends up on OEM equipment, site piping, and fluid control boards all over the place.
The China JOEPAI High Quality Stainless Steel 1 Piece Ball Valve with Locking Handle is used wherever fluid control has to stay safe and tamper-proof. Below are the five scenarios we see most often after 20+ years of supporting OEMs, contractors, and plant engineers.
Equipment builders fit this stainless steel 1 piece ball valve onto machines before shipment. The locking handle keeps it at fully open or fully closed through transport and daily operation, so nobody opens it by accident.
It is common on water treatment units, cleaning machines, and packaging lines. Because the 1-piece body has no end cap to loosen or re-torque, it survives the vibration of shipping without needing rework on arrival.
Site piping is exposed and handled by many people, which is where a standard ball valve causes trouble. This lockable stainless steel ball valve stays where the crew sets it, even when nearby pumps send vibration through the pipe.
Typical use: temporary water lines and compressed air drops. The pad-lockable handle lets the site manager lock a line open or closed, so unauthorized changes are physically prevented — not just discouraged.
Panels and skids pack many valves into a small space, so each one has to hold a known position. The locking handle on this stainless steel ball valve does that, which makes troubleshooting faster.
The stainless steel body also resists rust on dosing and water treatment skids, where splash and humidity are constant. When a technician walks up to the skid, they can trust what they see without having to verify each valve.
In chemical and pharmaceutical plants, a valve that opens by accident can ruin a batch. This lockable stainless steel ball valve lets operators fix the position and remove the risk of unauthorized adjustment.
It is often used on sampling and small transfer lines, where the flow path is critical and the consequences of a wrong valve position are high. Because the handle locks rather than only indicating, a batch becomes auditable.
This stainless steel ball valve with locking handle also works in food and beverage equipment, HVAC and water treatment systems, marine fluid lines, and agricultural irrigation.
The reason is the same each time: the valve holds its setting through vibration and long hours, and the stainless steel body handles washdown, salt air, or fertilizer-heavy water without rusting into a service call.
Each Stainless Steel 1 Piece Ball Valve with Locking Handle is built from a defined bill of materials. When your project requires material certificates or third-party verification, our team can supply batch-level documentation on request.
| No. | Part | Material |
|---|---|---|
| 1 | Body | WCB / CF8M / CF8 |
| 2 | Ball | SS316 / SS304 / SS |
| 3 | Seat | PTFE |
| 4 | Cap | WCB / CF8M / CF8 |
| 5 | Stem | SS316 / SS304 / SS |
| 6 | Thrust Washer | PTFE |
| 7 | Packing | PTFE |
| 8 | Gland | SS304 / SS |
| 9 | Handle | SS304 / SS |
| 10 | Spring Washer | SS304 / SS |
| 11 | Stem Nut | SS304 / SS |
Materials can be customized according to working conditions, media, pressure and temperature requirements. Special materials such as SS304L, SS316L or Duplex 2205/2507 are available on request.
We supply standard sizes below, and can also manufacture custom orders in accordance with your drawings. Our engineering team can provide tailored dimensions for specific project requirements.
| NPS | D | L | H | W |
|---|---|---|---|---|
| 1/4" | 5 | 40 | 74 | 30 |
| 3/8" | 7 | 45 | 74 | 30 |
| 1/2" | 10 | 60 | 95 | 40 |
| 3/4" | 10 | 60 | 95 | 40 |
| 1" | 14 | 70 | 102 | 50 |
| 11/4" | 20 | 80 | 124 | 60 |
| 11/2" | 24 | 85 | 144 | 60 |
| 2" | 32 | 100 | 144 | 70 |
| 21/2" | 38 | 125 | 168 | 90 |
| 3" | 50 | 150 | 192 | 90 |
| 4" | 65 | 195 | 220 | 130 |
Dimensions are for reference only. Please confirm final drawings with JOEPAI before ordering, especially when the valve must fit an existing manifold or skid.
Every claim we make about this valve is tied to a process you can verify. Below is the actual quality chain a locking handle 1PC ball valve goes through before it leaves our factory in Wenzhou, Zhejiang.
Raw material spectrum detection → assembly air tightness test → high-pressure hydrostatic test (1.5× rated pressure) → stem seal verification → final inspection before delivery. Every batch is traceable.
More than 20 high-precision CNC lathes plus 1 multifunctional machining center. Key component error accuracy is controlled within ≤0.01mm, ensuring the locking handle indexes precisely at open and closed positions.
Spectral quantitative analyzer, high-precision roundness tester, hardness tester, torque wrench, and valve fatigue tester. Torque and cycle life data are recorded for every production run.
JOEPAI holds ISO 9001 quality management system certification, EU CE certification for core products, and Korean KC certification for ball valves. Fire hydrant products have Australian AS 2419.2-2009 certification, and the Dual Booster system complies with AS 2419.3.
Products will be repaired or replaced free of charge for quality issues not caused by human factors. Our after-sales team responds quickly to technical or quality concerns.
It lets you physically padlock the valve at fully open or fully closed. The handle is held in position by a removable pin, so nobody can open or close the valve without removing the lock. It also prevents the handle from drifting when the pipe is vibrating.
This 1PC locking ball valve is typically supplied in standard port configuration. If your application specifically requires full port for pigging or high-flow service, please confirm with our team before ordering.
We offer NPT, BSPT, BSPP(G) and DIN2999 internal threads. Tell us the standard you need and we will process accordingly. Other thread standards are available on request.
The standard locking handle version is manual. If your project requires automation, we recommend our Stainless Steel 1 Piece Ball Valve with Locking Handle with ISO 5211 mounting pad — we can supply that configuration with the same body material and locking option.
Standard rating is 1000WOG (PN64). For specific high-pressure models, higher ratings are available on request — please confirm the exact rating you need with our technical team before ordering.
Body: WCB, CF8 or CF8M. Ball and stem: SS316, SS304 or SS. Seat and sealing: PTFE. Special materials such as SS304L, SS316L or Duplex stainless steel 2205/2507 are available on request.
Yes. We support sample orders for quality evaluation. Please provide your required size, thread standard, pressure rating and medium, and our team will arrange the sample and delivery details.
We offer flexible MOQ for trial orders and long-term cooperation. Normal delivery time is about 15–30 days after order confirmation, depending on quantity and customization requirements.
We provide a 12-month warranty from the date of delivery. For quality issues not caused by human factors, we will repair or replace the product free of charge. Our after-sales team responds quickly to solve any technical or quality concerns.
We can provide material certificates and spectrum detection reports on request. Our in-house spectral quantitative analyzer allows us to verify the chemical composition of each batch, and this data can be attached to your order documentation.
Tell us your valve size, thread standard, pressure rating, medium and quantity. Our engineering team will confirm the exact configuration, price and lead time on working days.
