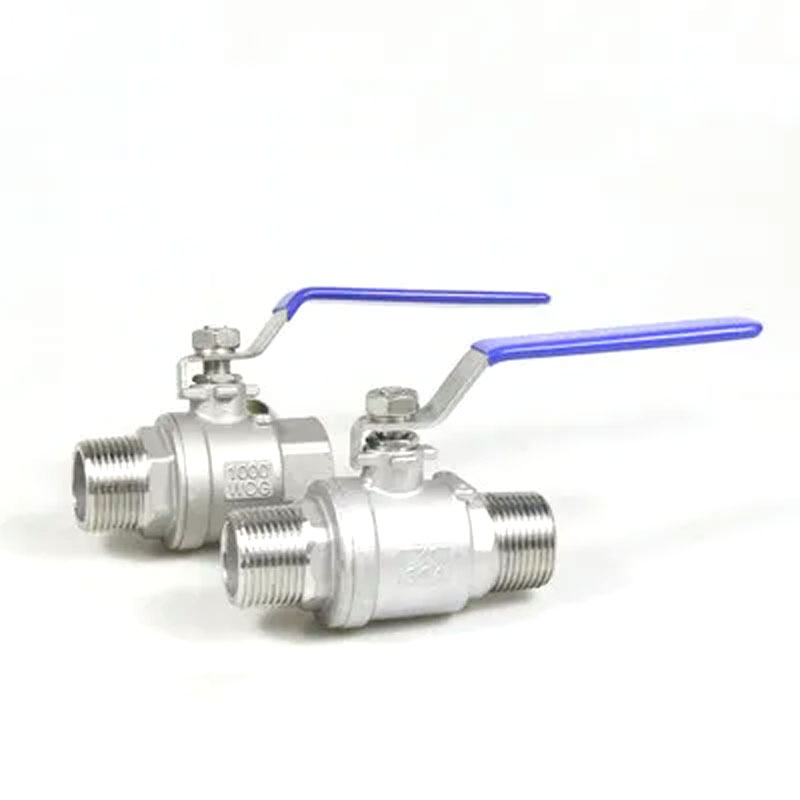

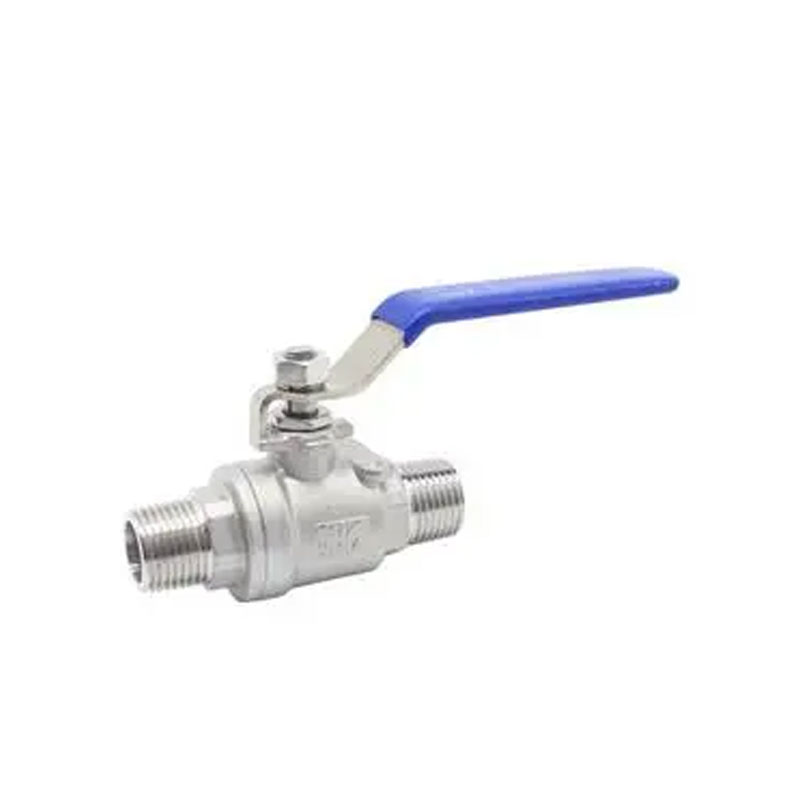

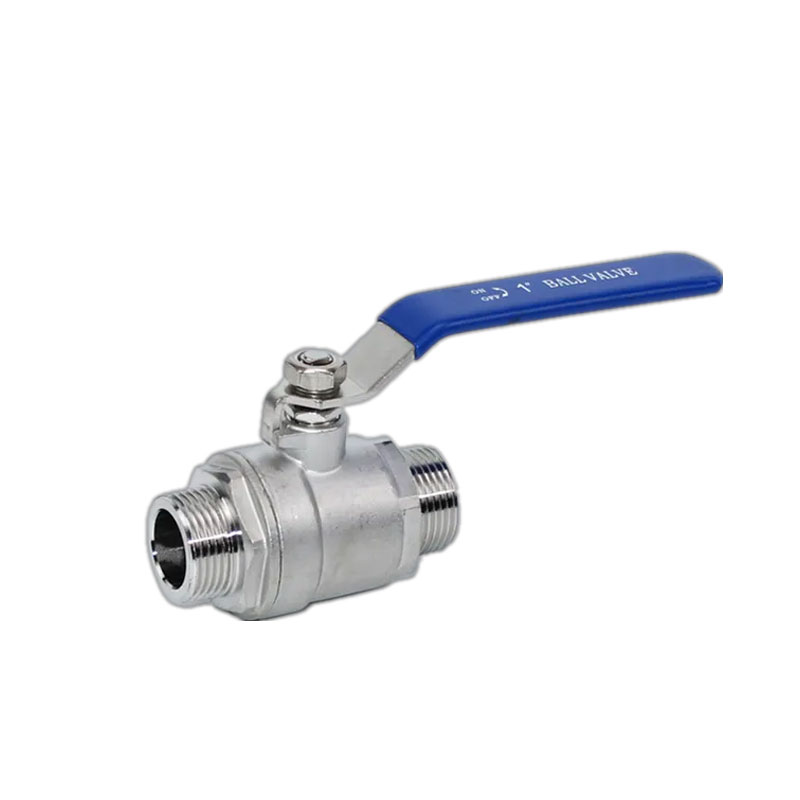

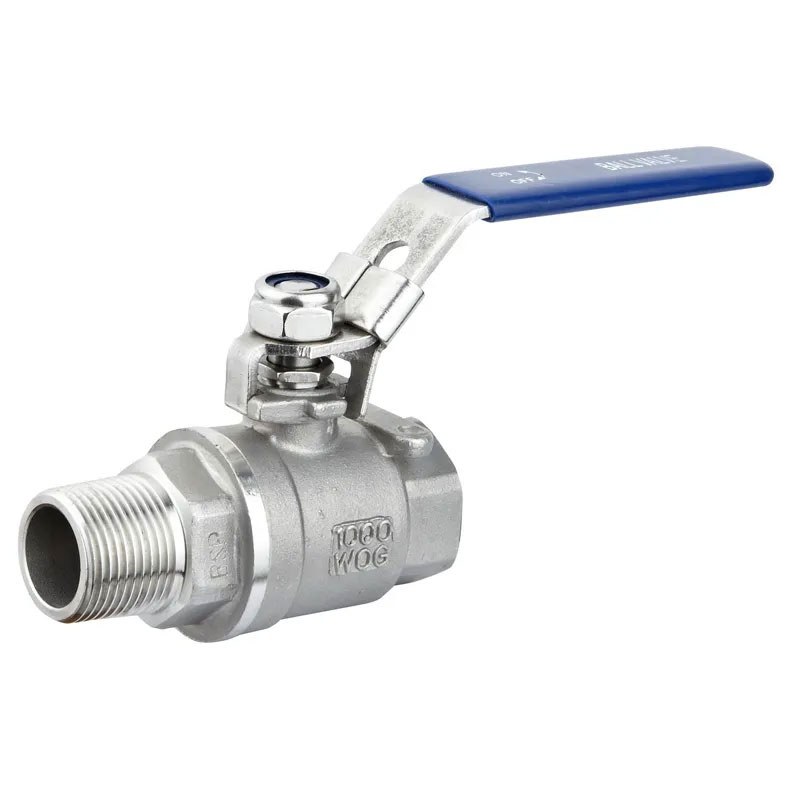

JOEPAI Stainless Steel Ball Valve pn64 produced by China factory is used to cut off or connect media in pipelines. By selecting different materials, it can be applied to various media such as water, steam, oil, nitric acid, acetic acid, etc.
Official Classic: DN15-DN65
Valve body material: WCB、304、316
THREAD STANDARD: NPT, BSPT, DIN259, DIN2999, ISO228 CLASS A
MAX PRESSURE:6.4MPA
TEMPERATURE RANGE: -20C~232C
SUITABLE MEDIUM: WATER, OIL, AIR AND SOME CORROSIVE LIQUIDS
BLOW-OUT PROOF STEM/FULL PORT
INVESTMENT CASTING BODY
1000PSI(PN64) W.O.G
MATERIAL STANDARD: S45C/ASTM A216 GR-WCB/DIN1.00619
SS316/ASTM A351 GR-CF8M/DIN1.4408
SS304/ASTM A351 GR-CF8/DIN1.4308
| 1 | Body | WCB/CF8M/CF8 | 8 | Packing | PTFE |
| 2 | Cap | WCB/CF8M/CF8 | 9 | Gland | SS304/SS |
| 3 | Seat | PTFE | 10 | Handle | SS304/SS |
| 4 | Ball | SS316/SS304/SS | 11 | Spring Washer | SS304/SS |
| 5 | Stem | SS316/SS304/SS | 12 | Stem Nut | SS304/SS |
| 6 | Gasket | PTFE | 13 | Locking Piece | SS304/SS |
| 7 | Thrust Washer | PTFE | 14 | Plastic Cover | Plastic |
| NPS | DN | D | L | W | H | Ra | Rb |
| 1/2" | 15 | 15 | 75 | 110 | 71 | 18 | 4 |
| 3/4" | 20 | 20 | 80 | 122 | 67.5 | 18 | 4 |
| 1" | 25 | 25 | 90 | 122 | 70 | 18 | 5 |
| 11/4" | 32 | 32 | 110 | 170 | 80 | 25 | 5 |
| 11/2" | 40 | 38 | 120 | 170 | 91 | 25 | 5 |
| 2" | 50 | 50 | 140 | 170 | 98 | 50 | 5 |
| 21/2" | 65 | 64 | 185 | 210 | 128 | - | - |
| 3" | 80 | 76 | 205 | 240 | 134 | - | - |
| 4" | 100 | 100 | 240 | 314 | 160 | - |
- |
The fluid resistance is minimal, with a resistance coefficient equivalent to that of a pipe segment of the same length.
Simple in design, compact in size, and lightweight.
The ball valve sealing surfaces are commonly made of plastic materials, offering excellent sealing capabilities, and are widely used in vacuum systems.
The Stainless Steel Ball Valve pn64 features a quick opening and closing mechanism, requiring only a 90° rotation from fully open to fully closed, making it ideal for remote control.
It has a straightforward structure, with movable sealing rings, allowing for easy disassembly and replacement.
When fully open or closed, the sealing surfaces of the ball and valve seat are isolated from the medium, preventing any erosion of the valve's sealing surfaces during flow.
With sizes ranging from a few millimeters to several meters, it is suitable for use in environments from high vacuum to high pressure.
Our ball valve has found widespread use across industries such as petroleum, chemicals, power generation, papermaking, nuclear energy, aerospace, and even in everyday life.
