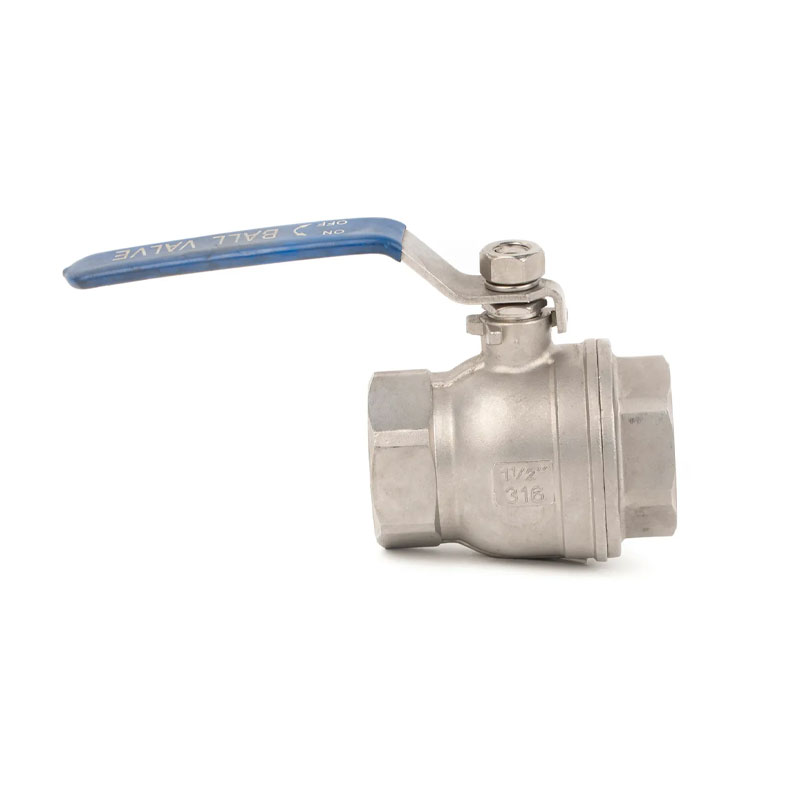

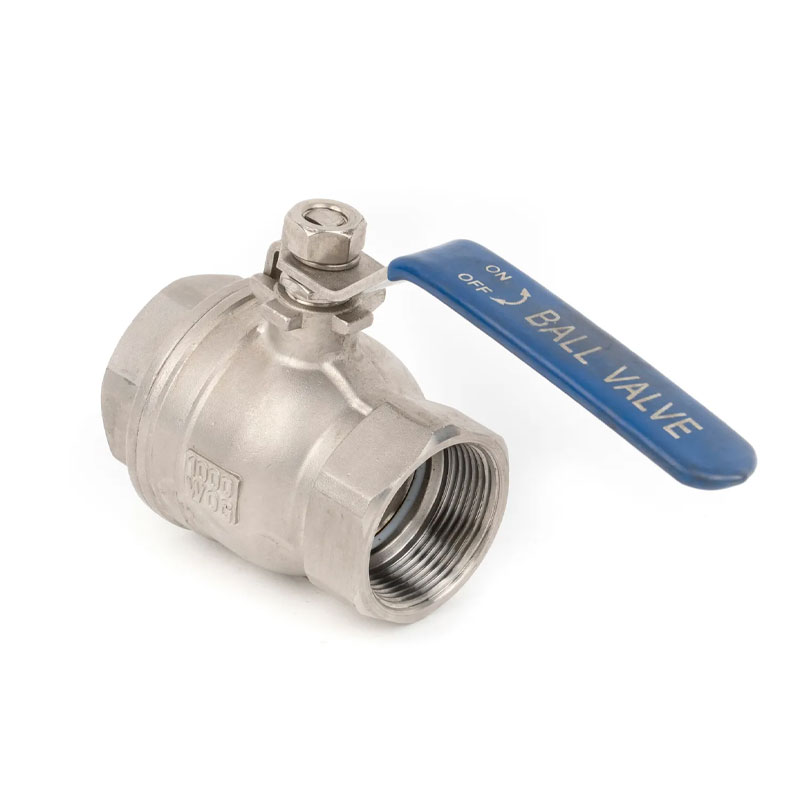

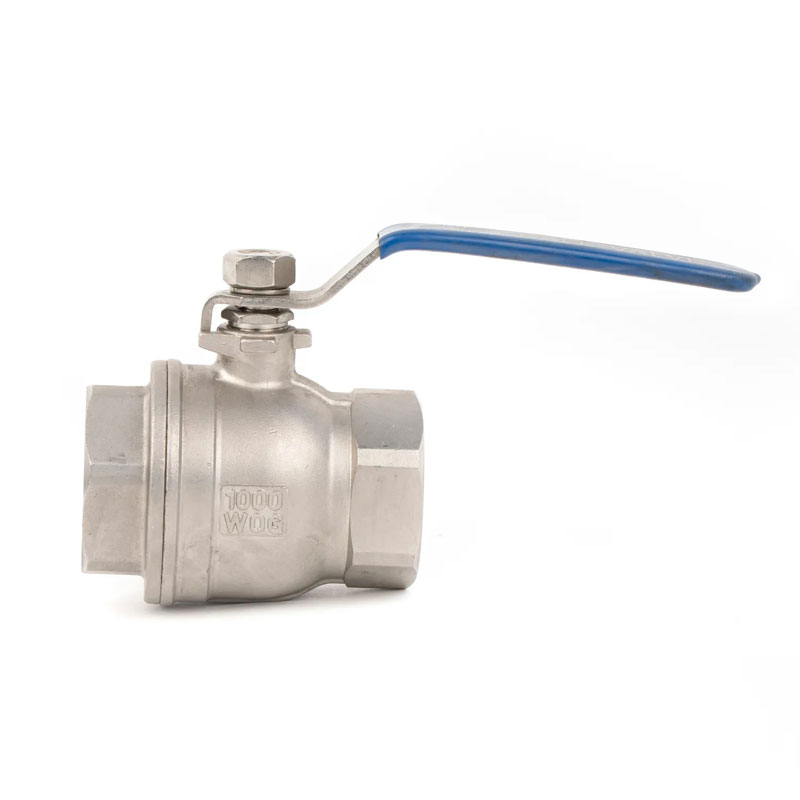

Stainless Steel JIS10K 20K Threaded 2PC Ball Valve

JOEPAI High Quality Stainless Steel JIS10K 20K Threaded 2PC Ball Valve adopts a two-piece split structure design. The ball valve has a fireproof structure and adopts an ISO5211 direct installation actuator platform design. There is an anti-static device between the spheres; Valve stem explosion proof design; The double-layer valve stem packing meets the requirements of valve stem leakage testing; Double disc shaped shrapnel automatic compression filling design; The high platform internal thread ball valve is made of different materials and can be suitable for various media such as water, steam, oil, nitric acid, acetic acid, etc.

Applecable Standards

Explosion proof central axis Blow out Proof stem/Full port
Design and manufacturing standards according to Design: ASME B16.34;
Thread standard according to End Flange: ASME B1.20.1,BS21
DIN 2999/259,ISO 228/1; JIS B 0203,ISO 7/1
Wall thickness standard: Wall Thickness: ASME B16.34
Inspection and testing shall be conducted according to Test: MSS SP-110,EN 12266;

Product Standard

Our products are inspected according to relevant international and domestic standards, and we provide "full process tracking" services for our products; Provide "nameplate", "quality certificate", "quality assurance card" along with the goods, and the product comes with relevant instructions such as "manual" and "inspection report".

Main Parts and Materials

Main Dimensions
