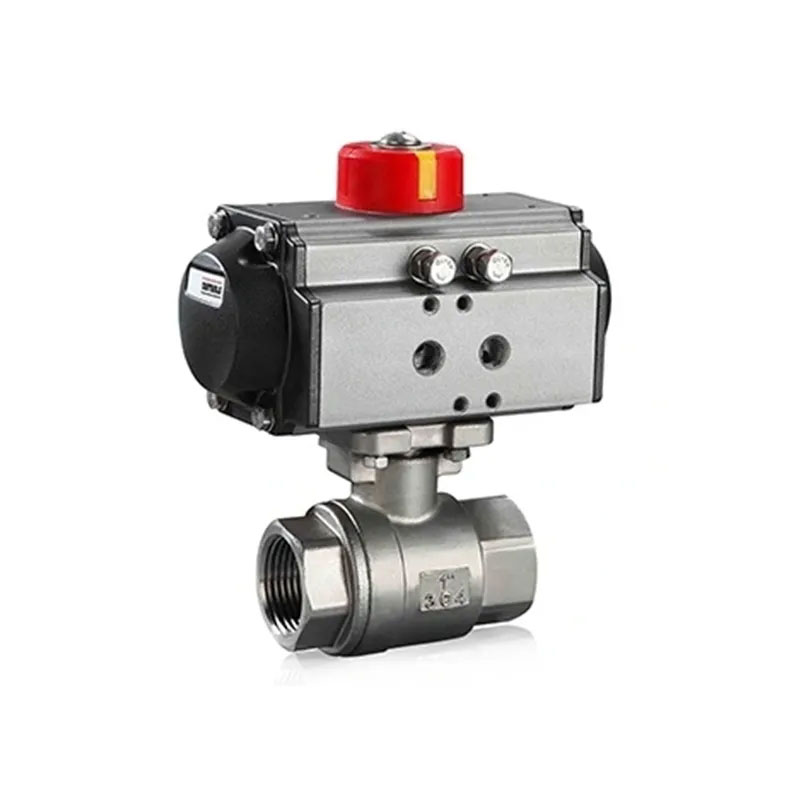

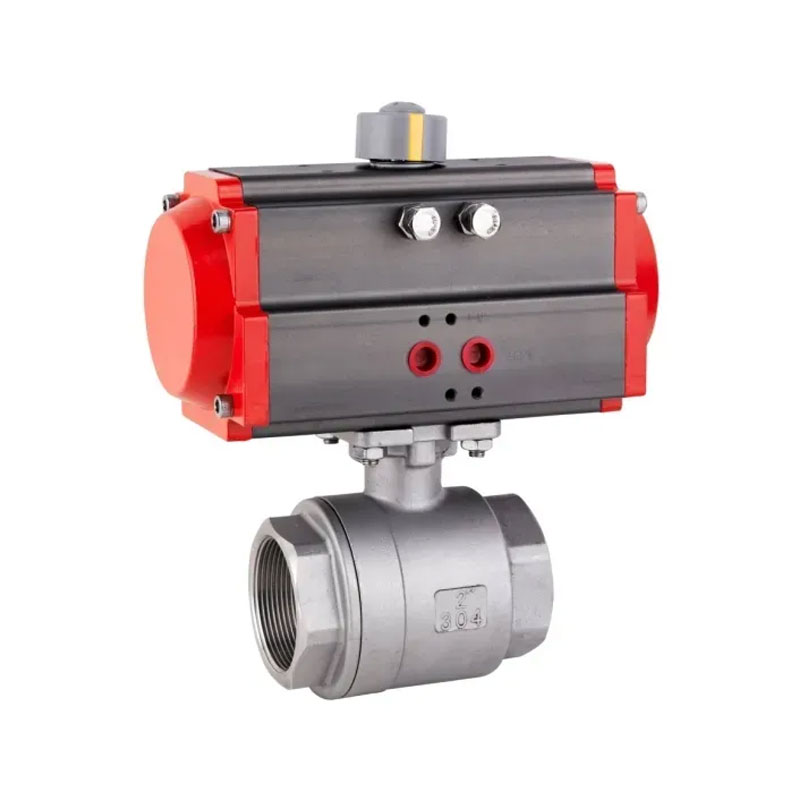

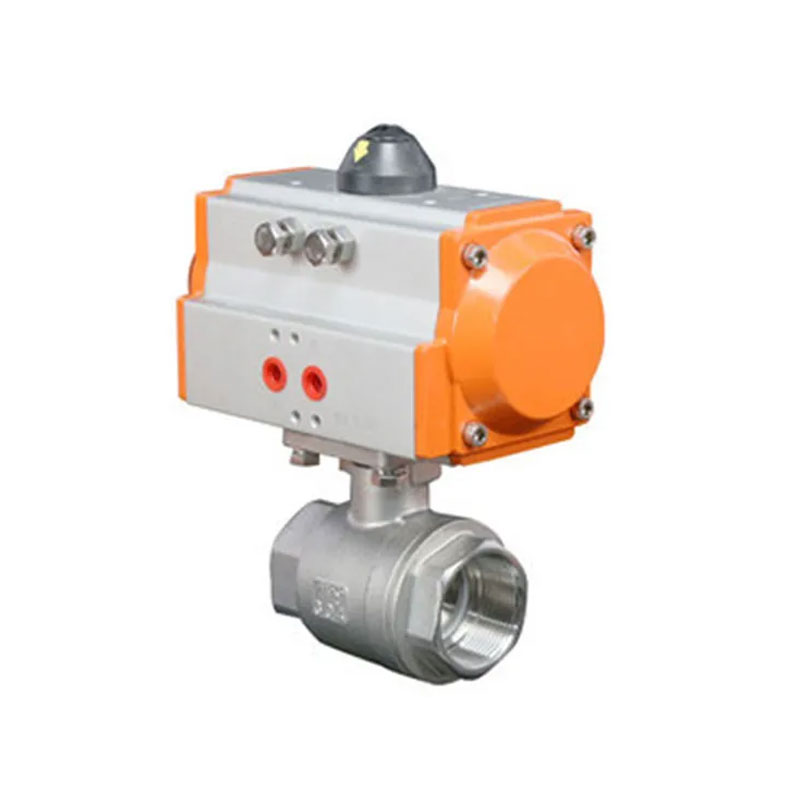

At JOEPAI, we specialize in providing Stainless Steel Threaded 2-PC Pneumatic Ball Valves that combine the reliability of stainless steel structures with the convenience of pneumatic drive, designed specifically for automatic fluid control in various industrial systems. Its threaded connection makes installation simple and fast, making it an ideal valve for pipeline systems in industries that require automation control, such as chemistry, water treatment, HVAC, etc.
2PC structural design
full bore
Product specifications: 114 "-3
Anti static structure design
Working pressure: 1000psi
Equipped with ISO5211 direct drive device platform
The threaded end can be made of BSPT, NPT, DIN2999 materials
THREAD STANDARD: NPT, BSPT, DIN259, DIN2999, ISO228 CLASS A
MAX PRESSURE:1000PSI(PN64) W.O.G
TEMPERATURE RANGE: -20C~232C
SUITABLE MEDIUM: WATER, OIL, AIR AND SOME CORROSIVE LIQUIDS
FULL PORT
ISO5211 DIRECT MOUNTING PAD
BLOW-OUT PROOF STEM/FULL PORT
LOCKING DEVICE
OERATION:MANUAL or ACTUATOR
INVESTMENT CASTING BODY
MATERIAL STANDARD: S45C/ASTM A216 GR-WCB/DIN1.00619
SS316/ASTM A351 GR-CF8M/DIN1.4408
SS304/ASTM A351 GR-CF8/DIN1.4308
· Light Industry
· Food and Beverage
· Pharmaceutical
· Oil and Natural Gas
· Metallurgy and air separation
· Pulp and paper making
· Water and sewage treatment
· Power station and power generation system
· Fine Chemicals
| 1 | Body | WCB/CF8M/CF8 | 8 | Packing | PTFE |
| 2 | Cap | WCB/CF8M/CF8 | 9 | Gland | SS304/SS |
| 3 | Seat | PTFE | 10 | Handle | SS304/SS |
| 4 | Ball | SS316/SS304/SS | 11 | Spring Washer | SS304/SS |
| 5 | Stem | SS316/SS304/SS | 12 | Stem Nut | SS304/SS |
| 6 | Gasket | PTFE | 13 | Locking Piece | SS304/SS |
| 7 | Thrust Washer | PTFE | 14 | Plastic Cover | Plastic |
| NPS | DN | D | L | H | H1 | RA | RB | Ra | Rb | K |
| 1/2" | 15 | 15 | 62 | 38 | 9 | 18 | 21 | 3 | 3 | 9 |
| 3/4" | 20 | 20 | 75 | 41 | 9 | 18 | 21 | 3 | 3 | 9 |
| 1" | 25 | 25 | 85 | 58 | 11 | 21 | 25 | 3 | 3.5 | 11 |
| 11/4" | 32 | 30 | 91 | 60 | 11 | 21 | 25 | 3 | 3.5 | 11 |
| 11/2" | 40 | 38 | 105 | 75 | 14 | 25 | 35 | 3.5 | 4.5 | 14 |
| 2" | 50 | 49 | 120 | 80 | 14 | 25 | 35 | 3.5 | 4.5 | 14 |
1: Type of medium, temperature, pressure.
2: Pneumatic actuator types: double acting, single acting.
3: Required accessories: solenoid valve, locator, signal feedback, air
source processing triad, manual mechanism.
4: The required valve diameter, pressure, driving method, connection method,
structural type, and main component materials of the valve.
