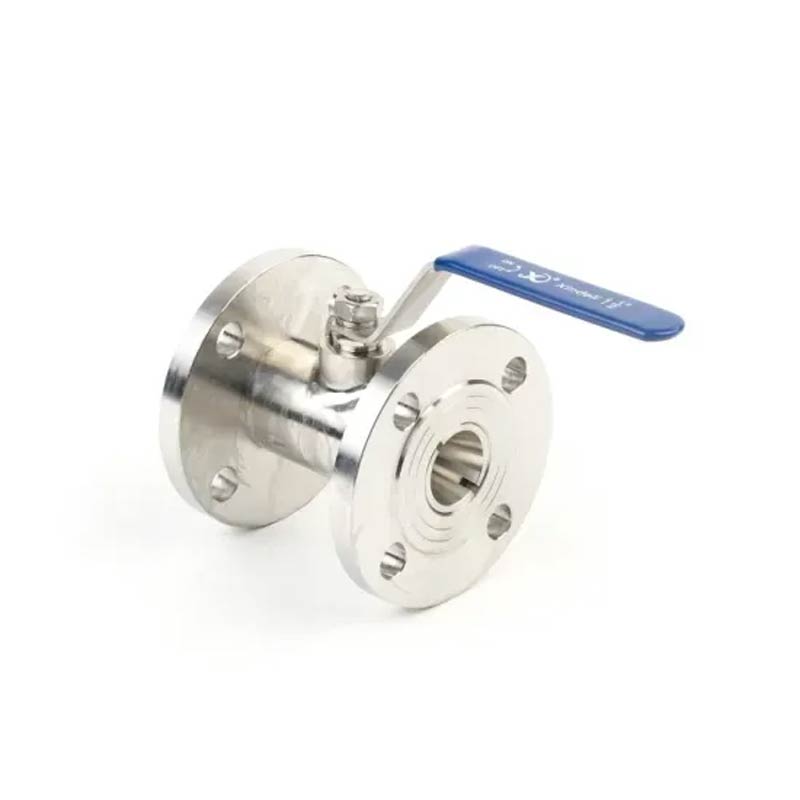

1PC ANSI Flanged Ball Valve CLASS 150LB

JOEPAI durable 1PC ANSI Flanged Ball Valve CLASS 150LB complies with ANSI B16.5 150LB standard, adopts precision cast valve body, compact overall structure, and superior sealing performance. Suitable for fluid cutoff or switching control in various industrial pipelines, widely used in petrochemical, power, water treatment, and general industrial systems, especially suitable for space limited or lightweight applications.

Working principle

The working principle of 1PC ANSI Flanged Ball Valve CLASS 150LB is very simple. When the handle rotates, the sphere also rotates, thereby changing the alignment between the inner hole of the sphere and the valve body channel. In the closed state, the spherical hole is not aligned with the valve body channel, preventing fluid from passing through. In the open state, the spherical hole aligns with the valve body channel, allowing fluid to freely pass through.

One of the advantages of ball valves is that they can quickly switch on and off without the need for a large rotation of the handle. This makes 1PC ANSI Flanged Ball Valve CLASS 150LB particularly suitable for situations that require frequent control of fluid flow.

Product Features:

Face-to-face dimension: B16.10-1992
Flanged connection: ANSI B16.5
TEMPERATURE RANGE: -20ºC~150ºC
SUITABLE MEDIUM: WATER, OIL, AIR AND SOME CORROSIVE LIQUID
INVESTMENT CASTING BODY
DESIGN: ANSI B16.34,API608
TEST: API 598,API 6D
MATERIAL: CARBON STEEL WCB/DIN1.0619
STAINLESS STEEL 304/1.4308
STAINLESS STEEL 316/1.4408

Main Parts and Materials

Main Dimensions
